Vivo STAND-V003E Series Assembly Manual
Triple monitor desk stand
Hide thumbs
Also See for STAND-V003E Series:
- Instruction manual (9 pages) ,
- Instruction manual (4 pages) ,
- Instruction manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V003E Series
Summary of Contents for Vivo STAND-V003E Series

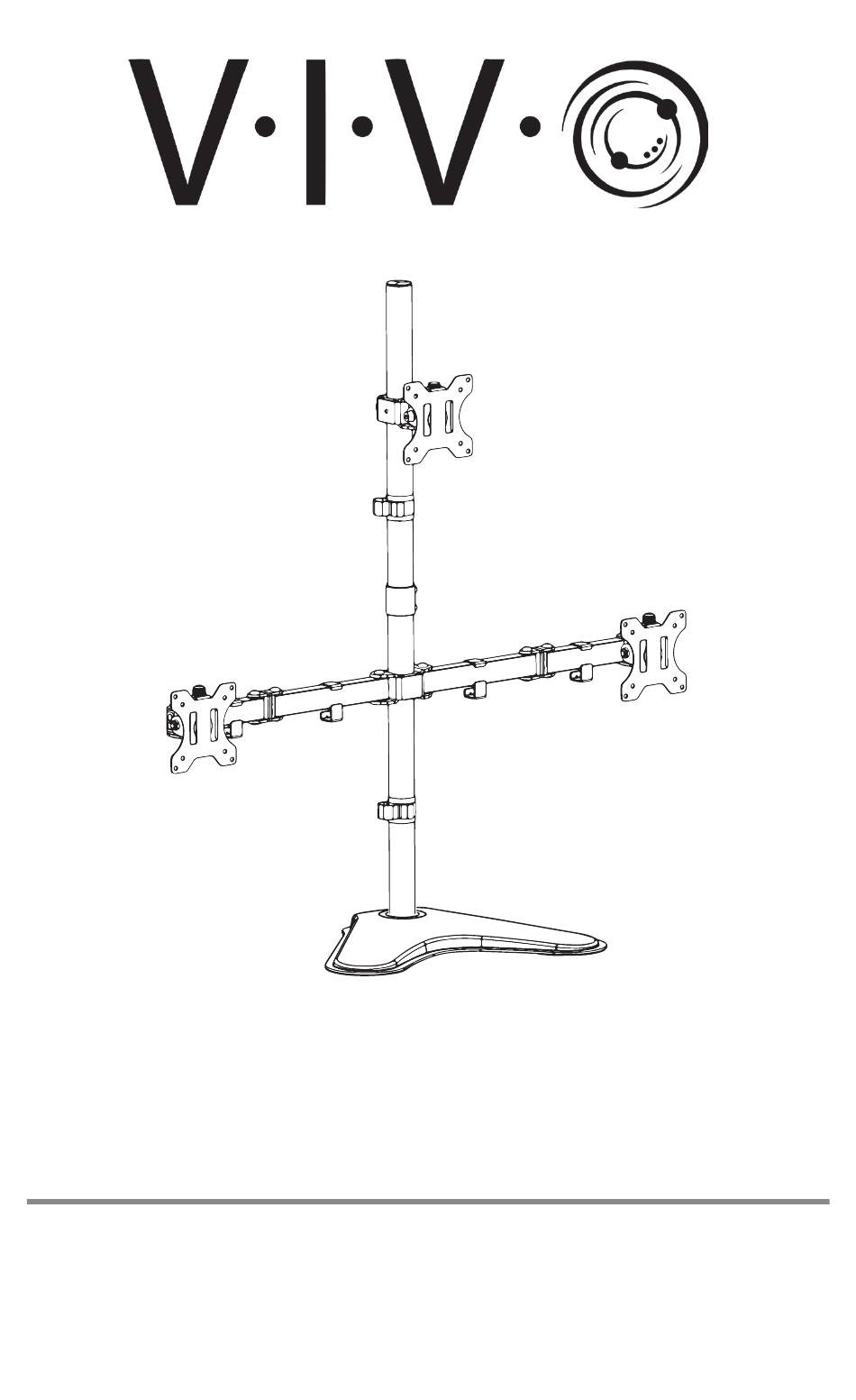

- Page 1 Triple Monitor Desk Stand STAND-V003E Series Assembly Manual Individual Product SKUs STAND-V003E STAND-V003EW...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Package Contents A (x3) B (x1) C (x1) D (x1) VESA Plate Center Arm Dual Arm Base G (x1) F (x1) H (x2) E (x1) Pole Connector Top Pole Cable Clip Bottom Pole I (x2) VESA Cap Included Hardware & Tools S-C (x1) M-A (x12) S-A (x3)
-
Page 4: Assembly Steps
Assembly Steps STEP 1 Attach Bottom Pole (E) to Base (D) using M6x14mm Screws (S-A) and 4mm Allen Wrench (T-B). - Page 5 STEP 2 Slide one Cable Clip (H) and Dual Arm (C) onto Bottom Pole (E). Secure by tightening the back screw using 6mm Allen Wrench (T-C).
- Page 6 STEP 3 Thread Pole Connector (G) onto Bottom Pole (E), then Thread Top Pole (F) into Pole Connector. Poles Won’t Thread Into Connector? If Poles (E,F) are difficult to thread into Pole Connector, the two set screws may need to be loosened.
- Page 7 STEP 4 Slide one Cable Clip (H) and Center Arm (B) onto Top Pole (F). Secure at the desired height by tightening the back screw using 6mm Allen Wrench (T-C).
- Page 8 STEP 5 Secure VESA Plates (A) to the back of monitors using approprate Screws (M-A thru M-D) and M5 Washers (M-E). Spacers (M-F) can be used if needed. Tighten using a Phillips screwdriver. Ensure Lip on VESA Plate is facing up.
- Page 9 STEP 6 6.1 Slide monitors with VESA Plates (A) onto Dual Arm (C) and Center Arm (B). 6.2 Secure the monitors on Dual Arm using VESA Caps (I), M3x8mm Screws (S-B) and a Phillips screwdriver. 6.3 Secure the monitor on Center Arm (B) using Thumbscrew (S-C). 6.4 Tighten the Adjustment Screws behind each monitor to secure them in a straight position.
- Page 10 STEP 7 Manage cables using cable clips on Dual Arm (C) and Cable Clips (H). Align the side monitors by turning the VESA Caps (I) using 6mm Allen Wrench (T-C).
- Page 11 Adjust as Desired +45° ±180° -45° +45° ±180° +45° -45° ±180° -45° Store Allen Wrenches (T-A, T-B, T-C) in Cable Clips (H) for future adjustments.
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
