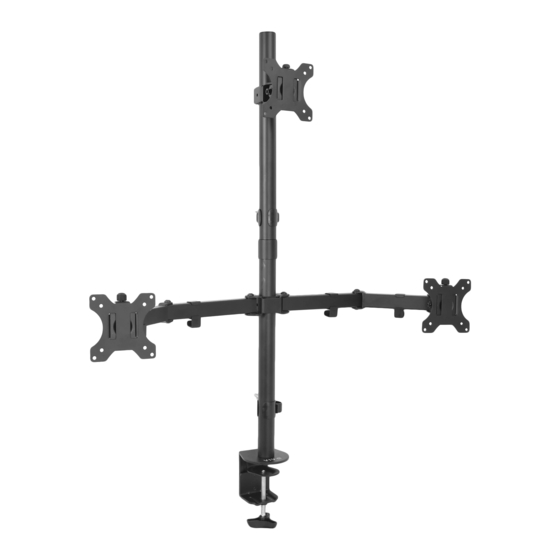

Triple Monitor Desk Mount
Instruction Manual
SKU: STAND-V003T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v003t
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V003T
Summary of Contents for Vivo STAND-V003T
- Page 1 Triple Monitor Desk Mount Instruction Manual SKU: STAND-V003T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v003t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Remove adhesive backing from Rubber Pads (K) and place them on the underside of Clamp (D). Assemble Clamp (D) to Bottom Pole (E) using M3x16mm Screws (S-A) and 4mm Allen Wrench (T-A). Then secure Clamp (D) to the desktop.
- Page 4 STEP 2 Slide Cable Clip (H) and Arm (C) onto Bottom Pole (E). Secure Arm (C) in place using 6mm Allen Wrench (T-C). Screw Pole Connector (G) onto Bottom Pole (E), then screw Top Pole (F) into Pole Connector (G). Tighten the set screws in Pole Connector (G) using 3mm Allen Wrench (T-A). STEP 3 Slide Cable Clip (H) and VESA Bracket (B) onto Top Pole (F).
- Page 5 STEP 4 OPTION A: Flat Back Monitor Assemble VESA Plates (A) to back of monitors using Screw (M-A or M-C) and M5 Washers (M-H). OPTION B: Curved Back Monitor Assemble VESA Plates (A) to back of monitors using Screws (M-B or M-D). If screws are too long, Spacers (M-G) may be required.
- Page 6 STEP 6 Secure bottom two monitors to Arm (C) using VESA Caps (J) and M3x8mm Screws (S-B). Tighten with a Phillips screwdriver. Secure top monitor to VESA Bracket (B) using Thumbscrew (S-C). Use 6mm Allen Wrench (T-C) to adjust the tilt. STEP 7 Manage cables using the cable management clips in Arm (C) and Cable Clips (H).
- Page 7 STEP 8 Level bottom monitors by turning VESA Caps (J) using 6mm Allen Wrench (T-C). Adjust monitors as desired. +45° ±180° -45° +45° ±180° +45° -45° ±180° -45°...
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
