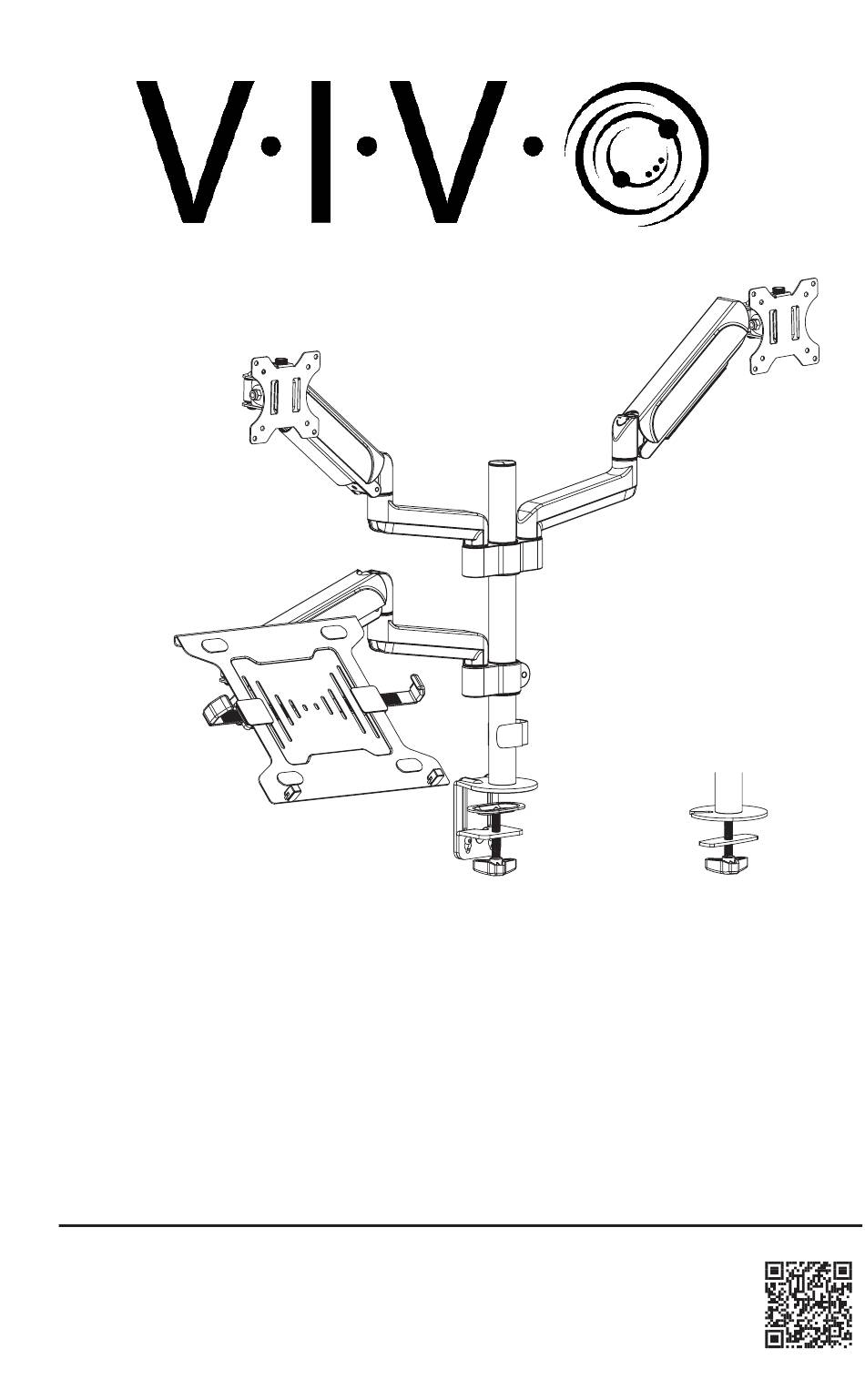

- Page 1 Pneumatic Arm Dual Monitor and Laptop Desk Mount SKU: STAND-V003KL Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v003kl...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) Dual Arm Laptop Tray D (x3) E (x1) F (x1) VESA Plate Pole Clamp I (x1) G (x2) H (x1) Support Plate Laptop Arm Grommet Plate J (x1) K (x2) L (x1) Soft Pad Clip Cable Clip... -
Page 4: Included Hardware & Tools
Included Hardware & Tools S-A (x4) S-B (x3) S-C (x3) M-A (x12) M4x8mm M6x16mm Thumbscrew M4x12mm Screw Screw Screw M-B (x12) M-C (x12) M-D (x12) M-E (x12) M4x16mm M5x12mm M5x16mm M5 Washer Screw Screw Screw M-F (x12) T-A (x1) T-B (x1) Space 4mm Allen 6mm Allen... -
Page 5: Option 1: Clamp Assembly
STEP 1 Loosen screws on Clamp (F) using 4mm Allen Wrench (T-A) and seperate into Upper Clamp (F1) and Lower Clamp (F2). STEP 2 Option 1: Clamp Assembly Assemble Upper Clamp (F1) to Pole (E) using M6x16mm Screws (S-B) and 4mm Allen Wrench (T-A). - Page 6 STEP 2 - Cont’d Desktop Thickness: 0.40” - 1.77” (10mm - 45mm) Loosen the pre-installed Tighten using 4mm Allen Rotate Clamp (F) screws on Upper Clamp (F1) Wrench (T-A). clockwise to secure by hand until there is at least to desktop. 0.25”...
- Page 7 Option 2: Grommet Assembly Desktop Thickness: .39” - 1.57” (10mm - 40mm) Cut Soft Pad (J) along the indentations. Remove protective backing from Soft Pad and place onto Grommet Plate (H). Disassemble Lower Clamp (F2) by unscrewing with a Phillips screwdriver. Remove Clamp Bolt (F4) and Clamp Plate (F5) and set the other components aside.
- Page 8 STEP 2 - Cont’d Thread Clamp Bolt (F4) into underside of Clamp Plate (F5). Place Base (H) over the desktop grommet hole and thread Clamp Bolt into the Base to secure. No Grommet Hole? If you do not have an existing hole for installation, drill a hole through your desktop in your desired mounting location using a 3/8”...
- Page 9 STEP 3 While holding Dual Arm (A) and Arm (B) closed, cut the shipping tie and gently release. Loosen screw on back of Dual Arm (A) and Arm (B) using 6mm Allen Wrench (T-B). Slide Dual Arm and Arm onto Pole (E) and retighten screws. Secure Cable Clip (L) to Pole.
- Page 10 STEP 4 Place Clips (K) through the front of the Laptop Tray (C), with Prongs facing the back of the Tray. One set of Prongs should be in the outer Slot and the other set overhanging the Tray. Front of Tray Front of Tray Back of Tray Prongs...
- Page 11 STEP 4 - Cont’d Press Laptop Arms (G) from the backside of Tray into Prongs on Clips (K), ensuring all four snap into place. Prongs...
- Page 12 STEP 6 Attach Laptop Tray (C) to 75mm and 100mm holes on VESA Plate (D) using M4x8mm Screws (S-A) and a Phillips screwdriver. Ensure Lip is facing upwards during installation. STEP 7 Slide VESA Plate (D) with Laptop Tray (C) onto Arm (B) and secure using Thumbscrew (S-C).
- Page 13 STEP 8 Attach VESA Plates (D) to back of monitors using Screws (M-A through M-D) and Washers (M-E). If needed, use Spacers (M-F).
- Page 14 STEP 9 Slide VESA Plates (D) with monitors over bracket on Dual Arm (A). Secure using Thumbscrews (S-C).
- Page 15 Adjusting Locking Laptop Arm Length 1. Release Locks: Pull tabs on Locks on the underside of Laptop Arms (G) and extend the Arms out. 2. Secure Laptop: Place your laptop on the tray, then adjust Arms to width of your laptop. Engage Locks to secure laptop.
- Page 16 STEP 10 Remove bottom covers from Dual Arm (A) and Arm (B) by sliding off. Organize cables and reattach covers. Store Allen Wrenches (T-A , T-B) in Cable Clip (L).
-
Page 17: Adjusting Arm Height
STEP 11 Adjusting Arm Height Position Mount Arm Turn 10-20x to Set Laptop Height Position the Arm (A) horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-B) 10-20 times place. to obtain proper support for your laptop. Use the guide below to adjust the tension according to the amount of counterbalance Insert 6mm Allen Wrench (T-B) - Page 18 Adjust As Desired +35° to -35° tilt 180° swivel 360° rotation...
- Page 19 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 20 LAST UPDATED: 8/21/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
