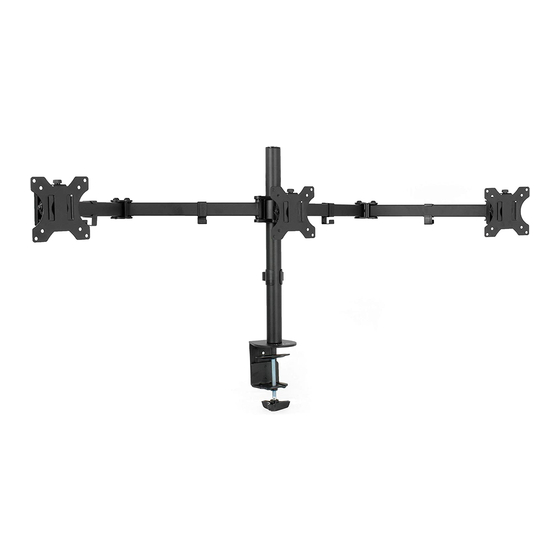

Triple Monitor Desk Mount
Instruction Manual
SKU: STAND-V003Y/W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v003y
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V003Y
Summary of Contents for Vivo STAND-V003Y
- Page 1 Triple Monitor Desk Mount Instruction Manual SKU: STAND-V003Y/W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v003y GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 15.4 lbs Failure to do so may result in serious injury. (7 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach Pole Cap (G) to top of Pole (D). STEP 2 (Option A) Clamp Installation Mount Pole (D) to Clamp (C) with M6x16mm Screws (S-A) using 4mm Allen Wrench (T-A).
- Page 4 STEP 2 (Option B) Grommet Base Installation Remove screw from Clamp Bolt (C1), and remove Clamp Bolt (C1) from Clamp (C). Apply Rubber Pads (I) to bottom of Grommet Base (F). Align pin on top of Grommet Base (F) with the small hole on the bottom of Pole (D), position over hole in desktop, and install to desktop using Clamp Bolt (C1) and Support Plate (H).
- Page 5 STEP 4 For Flat Back Monitors, install VESA Plate (A) to monitor using Screws (M-A or M-C) and M5 Washers (M-E). For Curved Back Monitors, install VESA Plate (A) to monitor using Screws (M-B or M-D), M5 Washers (M-E), and Spacers (M-F). STEP 5 Slide the monitors with VESA Plates (A) onto the heads of Arm (B).
- Page 6 STEP 6 Manage the cables using the installed cable clips. STEP 7 Adjust monitor alignment using 5mm Allen Wrench (T-B). +45° 360° -45° 360° 360° +45° 360° -45°...
- Page 7 STEP 8 Be careful not to extend the arms too far forward or backward. STEP 9 Store the Allen Wrenches in Cable Clip (E) for future use.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
