MATRIX 400™ REFERENCE MANUAL
5
The output signals are fully programmable being determined by the configured
Activation/Deactivation events, Deactivation Timeout or a combination of the two. Refer to
the Digital I/O folder in the VisiSet™ Help On Line for further details.
MATRIX
USER INTERFACE
Vext 30 Vdc max
H/G
V
I
Out Load
F/I

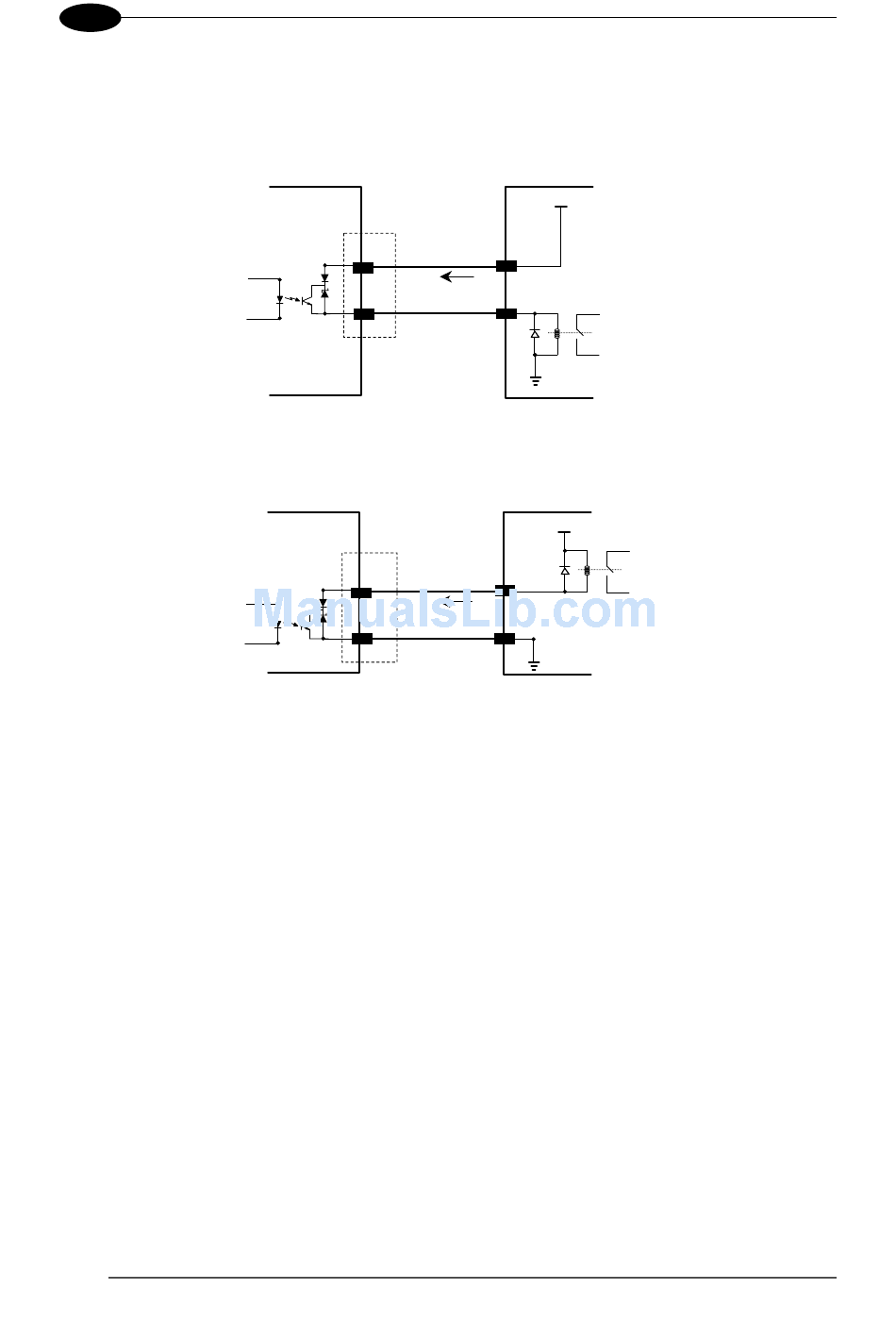

Figure 97 - Open Emitter Output Connection
MATRIX
USER INTERFACE
Vext 30 Vdc max
H/G
V I
Out
Load
F/I
Figure 98 - Open Collector Output Connection
