SOFTWARE CONFIGURATION
Moving code out of the Field of View:
To correct this result and have the code completely visible in F.O.V., it is possible to follow
one or both the procedures listed below:
reposition the reader
use the Acquisition Trigger Delay by tuning the Delay Time (x100µs)

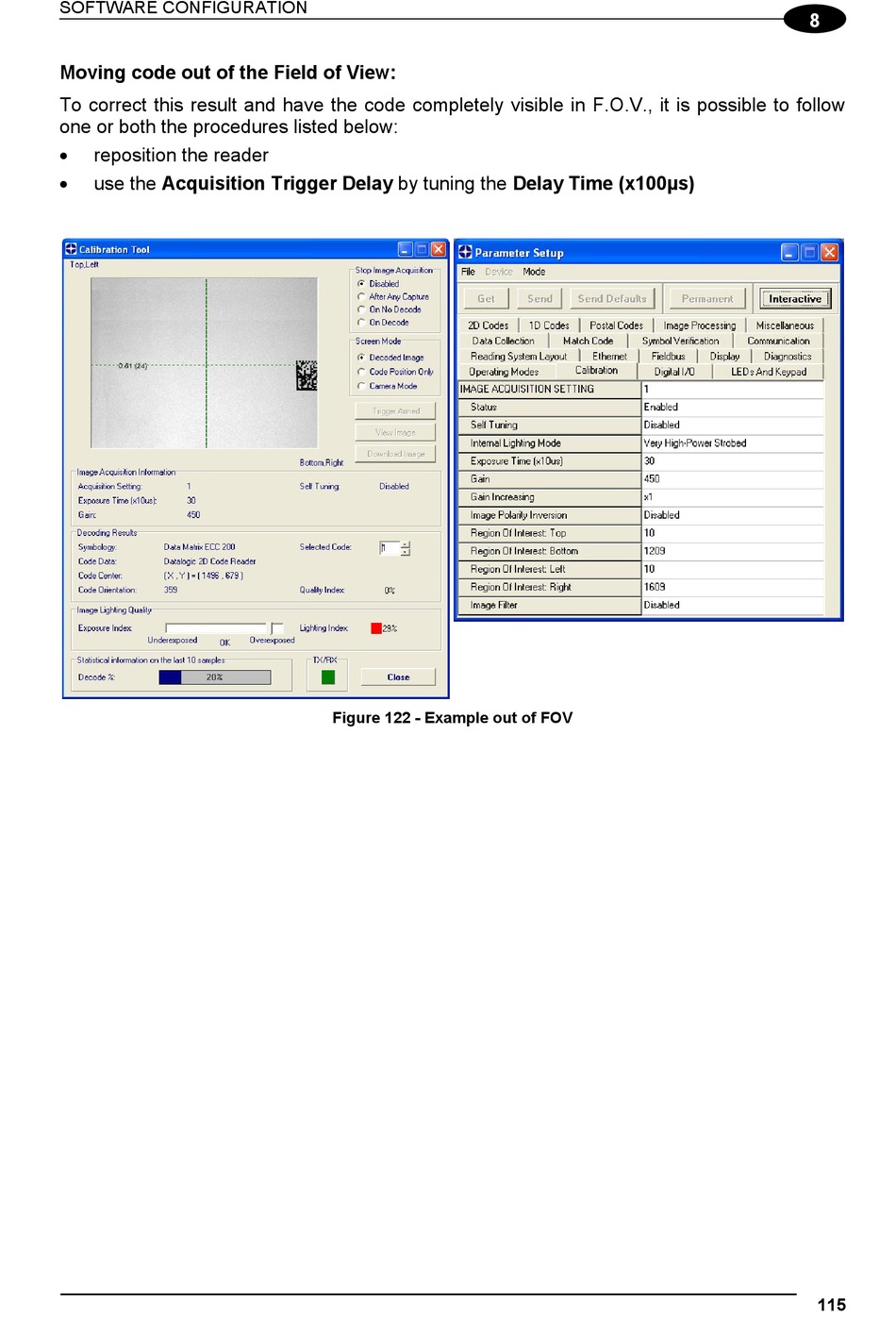

Figure 122 - Example out of FOV
8
115
