QUICK REFERENCE GUIDE
1
11
Device Class Label
1
Mounting Holes (4)
2
Lens Cover
3
4
Lens
(separate accessory)
Internal Illuminator
5
Mounting Holes
6
This manual illustrates a Stand Alone application. For other types of installations, such as
Pass-Through, Multiplexer Layout, etc. and for a complete reader configuration using the VisiSet™
configuration program, refer to the Matrix 400™ Reference Manual available on the CD. This
manual is also downloadable from the Web at www.automation.datalogic.com/matrix400.
NOTE
Matrix 400™
2
3
4
8
9
10

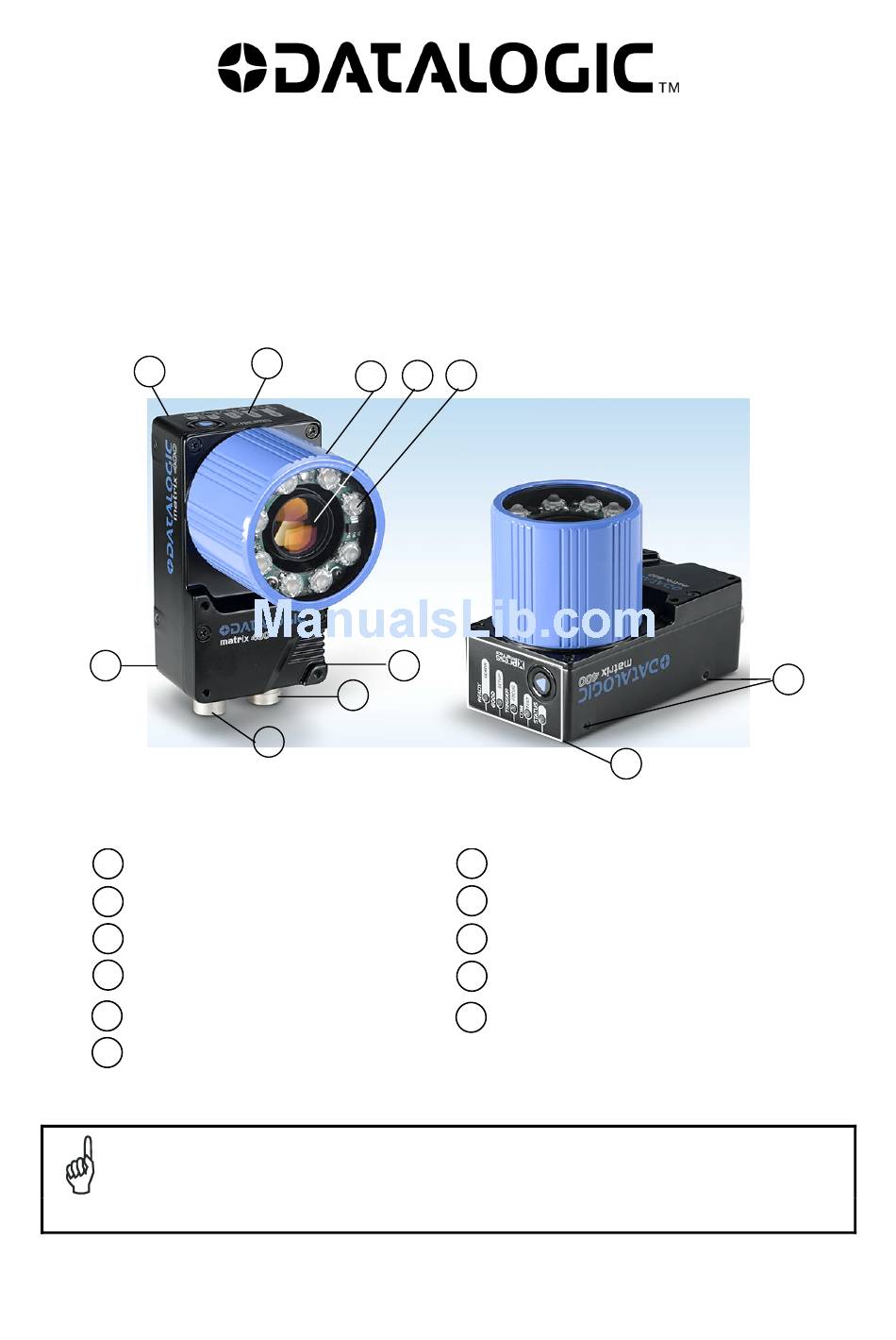

Figure A
(separate accessory)
5
7
HMI X-PRESS™ Interface
7
"POWER ON" LED
8
Standard Serial Interface Connector
9
Ethernet Connector
10
Ethernet Connection LED
11
(Ethernet Models Only)
6
(Ethernet Models Only)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matrix 400 and is the answer not in the manual?

Questions and answers

Related Manuals for Datalogic Matrix 400

Summary of Contents for Datalogic Matrix 400

  • Page 1 This manual illustrates a Stand Alone application. For other types of installations, such as Pass-Through, Multiplexer Layout, etc. and for a complete reader configuration using the VisiSet™ configuration program, refer to the Matrix 400™ Reference Manual available on the CD. This manual is also downloadable from the Web at www.automation.datalogic.com/matrix400.

  • Page 2: Updates And Language Availability

    En Internet están disponibles las versiones actualizadas de los drivers y documentación de este producto. Dirección Internet : www.automation.datalogic.com SERVICES AND SUPPORT Datalogic provides several services as well as technical support through its website. Log on to www.automation.datalogic.com and click on the links indicated for further information including: •...

  • Page 3: Step 1 - Assemble The Reader

    STEP 1 – ASSEMBLE THE READER The first step to perform is to assemble the accessories that make up the Matrix 400™ reader. The lens and either an internal or an external illuminator must be used. This procedure shows an internal illuminator.

  • Page 4: Step 2 - Connect The System

    PG 6000 * External Trigger or Presence Sensor (for On Shot or Phase Mode) Figure 2 – Matrix 400™ in Stand Alone Layout C-BOX 100 Pinout for Matrix 400™ The table below gives the pinout of the C-BOX 100 terminal block connectors. Use this pinout when the Matrix 400™...

  • Page 5: Step 3 - Mount And Position The Reader

    STEP 3 – MOUNT AND POSITION THE READER To mount the Matrix 400™, use the mounting brackets to obtain the most suitable position for the reader. Two of the most common mounting configurations are shown in the figures below. Other mounting solutions are provided in the Matrix 400™...

  • Page 6: Step 4 - Focus The Reader

    MATRIX 400™ QUICK GUIDE STEP 4 – FOCUS THE READER Matrix 400™ provides a built-in tool called Blue Diamonds™ to aid focusing the reader. The Blue Diamonds™ are accessed through the X-PRESS™ Interface. Remove the lens cover in order to focus the reader.

  • Page 7: Step 5 - Calibrate Image Density

    MATRIX 400™ QUICK GUIDE STEP 5 – CALIBRATE IMAGE DENSITY In order to function correctly to the fullest extent of its capabilities, Matrix 400™ must acquire information regarding image density or PPI (pixels per inch). This calibration takes place through the X-PRESS™ Interface and a special Image Density Calibration chart.

  • Page 8: Step 6 - X-Press™ Configuration

    MATRIX 400™ QUICK GUIDE STEP 6 – X-PRESS™ CONFIGURATION Once Matrix 400™ has calibrated image density, you can configure it for optimal code reading relative to your application. This configuration can be performed either through the X-PRESS™ Interface or the VisiSet™...

  • Page 9: Step 7 - Installing Visiset™ Configuration Program

    MATRIX 400™ QUICK GUIDE STEP 7 – INSTALLING VISISET™ CONFIGURATION PROGRAM ™ VisiSet is a Datalogic reader configuration tool providing several important advantages: • Autolearning Wizard for new users; • Defined configuration directly stored in the reader; • Communication protocol independent from the physical interface allowing to consider the reader as a remote object to be configured and monitored.
  • Page 10 MATRIX 400™ QUICK GUIDE The Autolearning Wizard option is advised for rapid configuration or for new users. It allows reader configuration in a few easy steps. Select the Autolearning Wizard button from the Main menu. Place the desired code in front of the reader at the correct reading distance (see step 3 and the Optical Accessory Selection table in the Appendix of this Quick Reference Guide).
  • Page 11 MATRIX 400™ QUICK GUIDE If the code symbology is not enabled by default, select a Code Setting Mode choice and press the "Code Setting" button. The Autolearning Result section of the Autolearning Wizard window shows the parameter settings and the code type results.

  • Page 12: Step 8 - Test Mode

    Use a code suitable to your application to test the reading performance of the system. Alternatively, you can use the Datalogic 1D/2D Test Chart (Code 39, Data Matrix ECC 200). Enter the Test function by pressing and holding the X-PRESS™ push button until the Test LED is on.

  • Page 13: Advanced Reader Configuration

    ADVANCED READER CONFIGURATION For further details on advanced product configuration, refer to the complete Reference Manual on the installation CD-ROM or downloadable from the web site through this link: www.automation.datalogic.com/matrix400. The following are alternative or advanced reader configuration methods: ADVANCED CONFIGURATION USING VISISET™...
  • Page 14 MATRIX 400™ QUICK GUIDE APPENDIX X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of installation and maintenance. Status and diagnostic information are clearly presented by means of the five colored LEDs, whereas the single push button gives immediate access to the following relevant functions: •...
  • Page 15 Figure 18 – Reading Distance References Example: The FOV for a Matrix 400-600-0x0 base using the 16 mm lens at a focus distance of 200 mm is: = 2 [(200 mm + 35 mm) tan (24°/2)] = 100 mm = 2 [(200 mm + 35 mm) tan (18°/2)] = 74 mm...

  • Page 16: Technical Features

    MATRIX 400™ QUICK GUIDE TECHNICAL FEATURES ELECTRICAL FEATURES Power Supply Voltage 10 to 30 Vdc Power Consumption 8 W max.; 5 W typical Communication Interfaces Main - RS232 2400 to 115200 bit/s - RS485 full-duplex 2400 to 115200 bit/s - RS485 half-duplex...

  • Page 17: Mechanical Dimensions

    MATRIX 400™ QUICK GUIDE MECHANICAL DIMENSIONS 60.5 [2.38] [0.71] 41.5 [1.63] [3.43] Ø61 [Ø2.40] Figure 19 – Matrix 400™ Overall Dimensions [2.40] [1.97] 12.5 12.5 [0.49] [0.49] [0.17] [0.12] [1.57] [0.17] [0.17] [0.16] [0.16] N°5 [0.17] Figure 20 – Mounting Brackets Overall Dimensions...

  • Page 18: Emc Compliance

    For more detailed information about disposal, contact the supplier that provided you with the product in question or consult the dedicated section at the website www.automation.datalogic.com.
  • Page 19 Para obtener una información más detallada sobre la eliminación, por favor, póngase en contacto con el proveedor donde lo compró o consultar la sección dedicada en el Web site www.automation.datalogic.com.
  • Page 20 MATRIX 400™ QUICK GUIDE SERIAL NUMBER REFERENCES Place the replicate Matrix 400™ base, lens and illuminator serial number labels here for reference. Serial Numbers Matrix 400™ Lens Illuminator 821001350...
