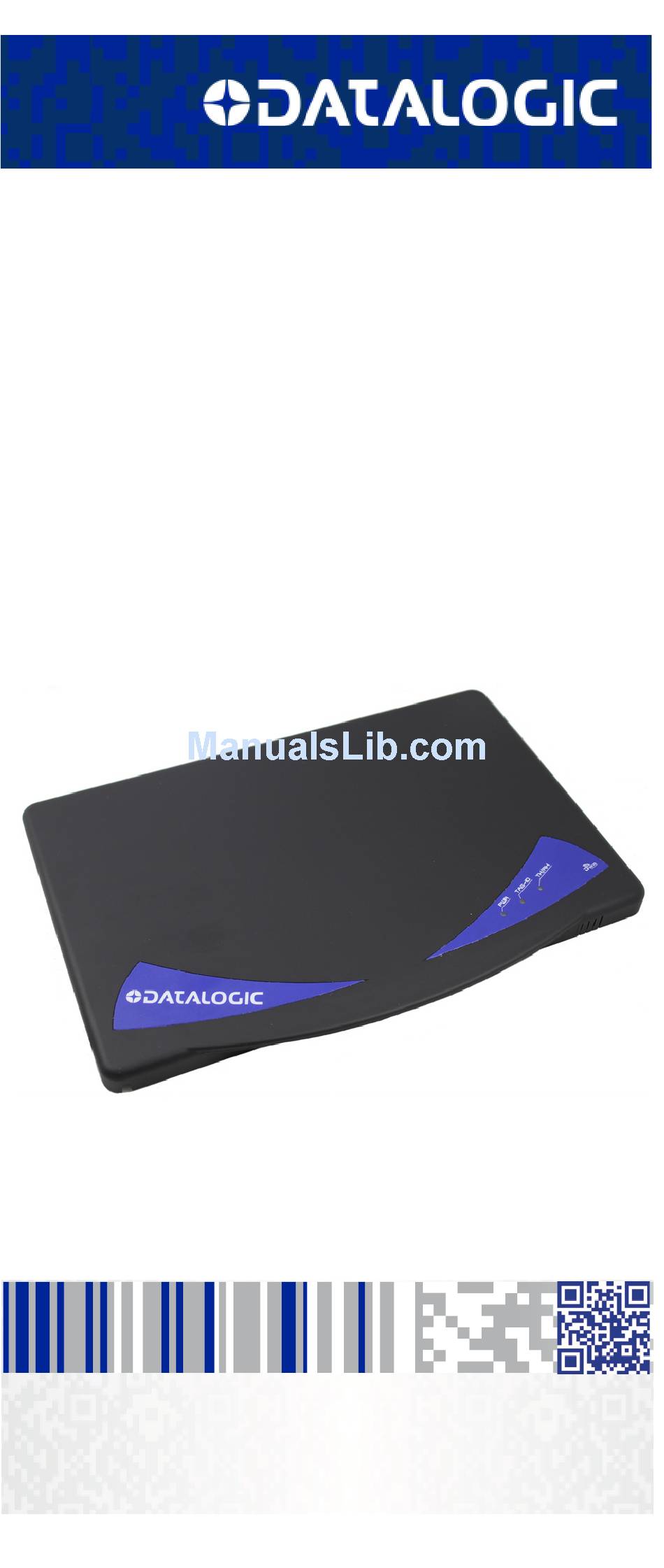

- Page 1 DLR-DK001-XX Family RFID UHF Desktop Reader EU/US Product Reference Guide...
- Page 2 Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. DLR-DK001 is a trademark of Datalogic S.p.A. and/or its affiliates. All other trademarks and brands are property of their respective owners.
-
Page 3: Table Of Contents
Reader-Tag Link Profiles ..............5 Radiation Patterns ................6 Getting Started ................7 Driver Installation for Serial Port Emulator ......7 Connecting to the DLR-DK001-XX ........10 Firmware Upgrade ...............10 Mechanical Specification ..............11 Datalogic Limited Factory Warranty ...........12 Services and Support ..............15 Product Reference Guide... - Page 4 NOTES DLR-DK001-xx...
-
Page 5: Description
It can be used as a building block for smart shelves and displays. The two versions are covering most of the RFID needs worldwide (retailers, forwarders, warehouses, etc). Models P/N Model P/N RF carrier frequency range DLR-DK001-EU 865.6 ÷ 867.6 MHz DLR-DK001-US 902.0 ÷ 928.0 MHz Product Reference Guide... -
Page 6: General Features
General Features General Features The DLR-DK001-XX is mainly dedicated to fixed Desktop setups, but a fixed wall-mount point-of-access is possible as well. The Desktop configuration allows it to interact directly with legacy application, office automation SW and many other generic service and maintenance applications. The integrated circular antenna makes the radiation pattern a good compromise in terms of directivity. -
Page 7: The Dlr-Dk001-Xx Top Panel
The DLR-DK001-XX Top Panel The DLR-DK001-XX Top Panel With reference to the Fig. 1 above, here is a Table with the three main elements of the User Interface located on the Top Panel: Table 1- DLR-DK001 Top Panel LEDs N° Name Description POWER Power ON - Green LED... -
Page 8: Technical Specifications
Accessories Technical Specifications Item Description Physical Characteristics (WLH) 29.7 x 20.5 x 1.5 cm / 11.7 x 8.1 x Reader Dimension 0.6 in Length of USB 1.5 m / 4.9 ft Weight 525 g / 18.42 oz Electrical Characteristics Electrical Power max 400 mA - 5 V dc bus powered (USB) Reader - Tag Link Type... -
Page 9: Reader-Tag Link Profiles
Reader-Tag Link Profiles Reader-Tag Link Profiles DLR-DK001-XX readers support different modulations and RF return link profiles according to EPC Class1 Gen2 protocols. Main profiles have been tested for the compliance with ETSI and FCC regulations. Table 2- DLR-DK001-XX Reader to tag link profiles Link Regulation Modulation... -
Page 10: Radiation Patterns
Radiation Patterns Radiation Patterns Both the DLR_DK001-XX products, due to their internally placed antenna, have a non-ideal radiation pattern. Here below are reported their radiation patterns. Figure 3. DLR-DK001 Radiation pattern H plane Figure 4. DLR-DK001 Radiation pattern V plane DLR-DK001-xx... -
Page 11: Getting Started
PC.NET before proceeding. Driver Installation for Serial Port Emulator VCP drivers for your operating system can be downloaded from the Products section of the Datalogic website. Get the last version driver. The following is a sample procedure for Windows-based systems:I Connect the reader to the USB port of your PC. - Page 12 Getting Started Click Finish to complete the procedure. Check the COM X name assumed by the USB serial port. Follow the Control Panel > System > Hardware > Device Manager > Ports > USB Serial Port (COM X) path. DLR-DK001-xx...
- Page 13 Getting Started In our example below the USB Serial Port is named as Product Reference Guide...
-
Page 14: Connecting To The Dlr-Dk001-Xx
Getting Started Connecting to the DLR-DK001-XX From the Products section of the Datalogic website you can download the DL RFID Software Tool Controller for Windows file. After its installation, you will get its icon on the PC desktop. Click the icon to launch it: •... -
Page 15: Mechanical Specification
Mechanical Specification Mechanical Specification Here below is the drawing of the DLR-DK001 reader. The optional hanging tools for wall-mounting could be found in the associated kit. Figure 5. DLR-DK001-XX Mechanical & Dimensions Product Reference Guide... -
Page 16: Datalogic Limited Factory Warranty
Datalogic hardware products are warranted against defects in material and workmanship under normal and proper use. The liability of Datalogic under this warranty is limited to furnishing the labor and parts necessary to remedy any defect covered by this warranty and restore the product to its normal operating condition. - Page 17 No attempted assignment or transfer in violation of this provision shall be valid or binding upon Datalogic. DATALOGIC' S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN,...
- Page 18 Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific written instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.
-
Page 19: Services And Support
Services and Support Services and Support Datalogic provides several services as well as technical support through its website. Log on to www.datalogic. and click on the links indicated for further information. Products Search through the links to arrive at your product page... - Page 20 ©2017 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U. Datalogic S.r.l. Via San Vitalino 13 Calderara di Reno (BO) |40012...
