RAPID CONFIGURATION

1 RAPID CONFIGURATION
STEP 1 – ASSEMBLE THE READER
The first step to perform is to assemble the accessories that make up the Matrix
reader. The lens and either an internal or an external illuminator must be used. This
procedure shows an internal illuminator.
Matrix 400™ must be disconnected from the power supply during this
procedure.
CAUTION
1. In a dust-free environment, remove the Matrix 400™ Lens Cover by unscrewing it.
Do not touch the sensor aperture, lens glass or lens cover glass. These
areas must be kept clean. Avoid any abrasive substances that might damage
these surfaces during cleaning.
CAUTION
2. Remove the sensor protection label by pulling it off of the base.
3. Mount the lens by screwing it tightly onto the base.
4. If using an internal illuminator:
a. Mount the 4 internal illuminator spacers into the holes provided on the base.
b. Align and mount the Illuminator board tightly onto the spacers using the 4 screws
provided in the illuminator package. The spacers are positioned asymmetrically to
avoid incorrect alignment.
5. To keep dust and dirt off of the lens during mounting, temporarily replace the lens cover.
Locking Knobs
Illuminator Spacers

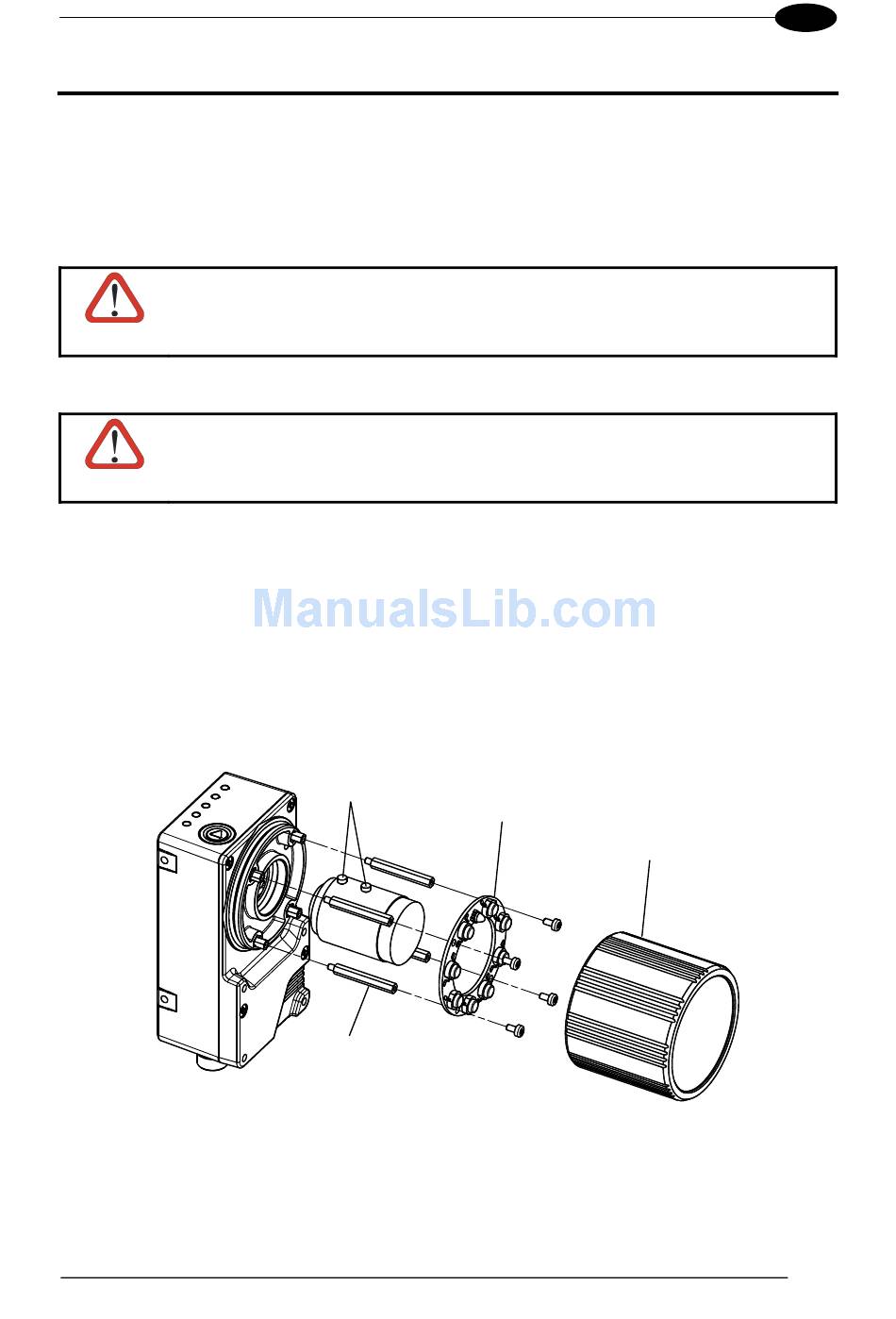

Figure 1 – Assembling Matrix 400™ Accessories
