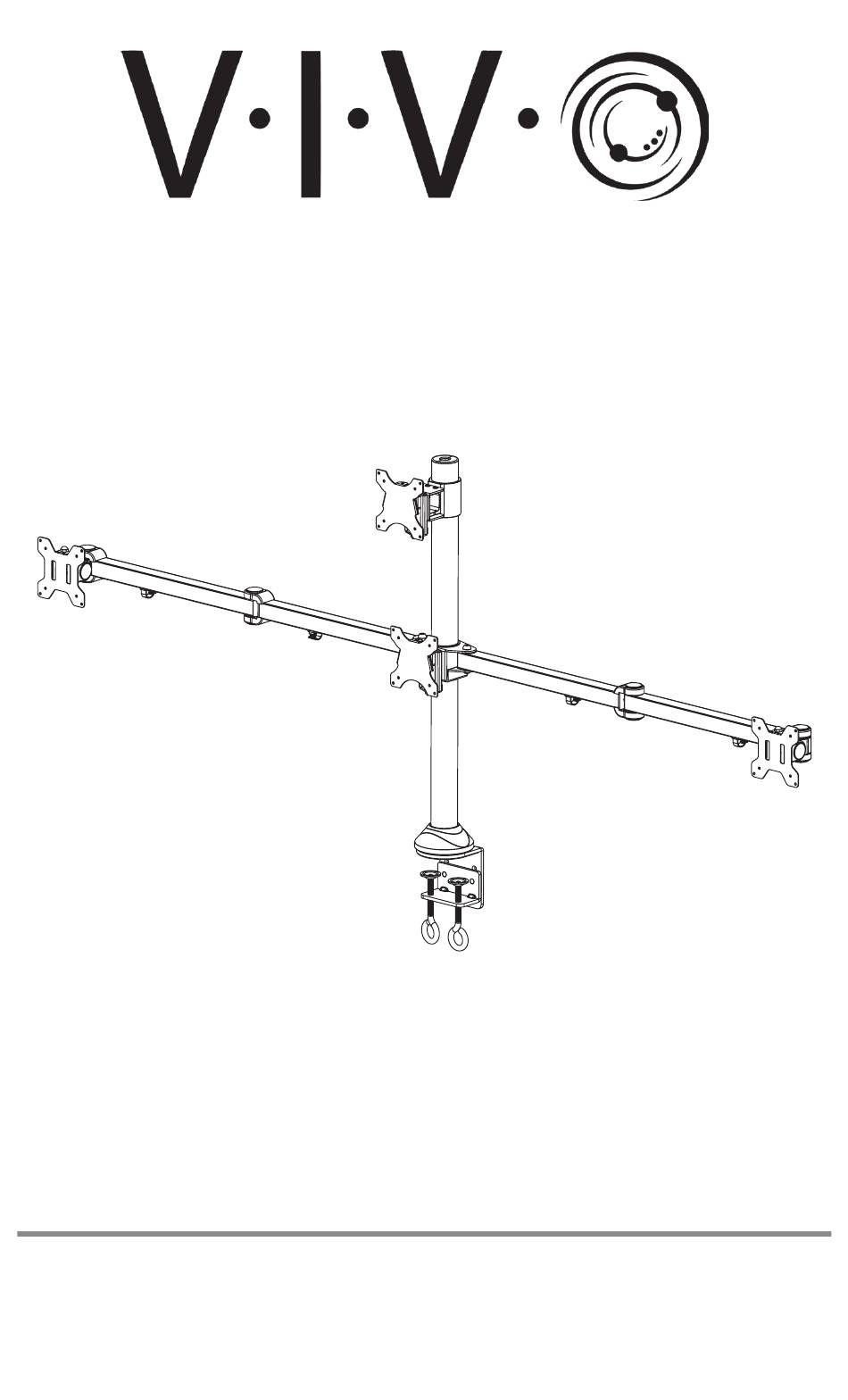

  • Page 1 Quad Monitor Desk Mount STAND-V104A Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x1) Pole Clamp Clamp Brace Decorative Cover E (x1) F (x2) G (x1) H (x1) Center Monitor Arm Mount Support Plate Monitor Arm I (x1) J (x4) K (x2) L (x4) Foam Pad Monitor Arm Spare Cap...
  • Page 4: Tools Needed

    Included Hardware & Tools - Cont’d S-I (x1) M-A (x16) M-B (x16) M-C (x16) M10 Washer M4x12mm M4x30mm M4 Spacer Thumbscrew Screw T-A (x1) T-B (x1) T-C (x1) T-D (x1) 3mm Allen 5mm Allen 6mm Allen Wrench Wrench Wrench Wrench Tools Needed: Phillips Screwdriver...
  • Page 5: Assembly Steps

    Assembly Steps STEP 1 Option 1: Clamp Assembly Install Pole (A) to Clamp Brace (C) Assemble Clamp (B) to Clamp Brace (C) using M6x10mm Screws (S-C) and a using M10x15mm Screws (S-D) and 6mm Phillips screwdriver. Allen Wrench (T-B). Secure the Clamp Assembly to the desktop by tightening the Hand Bolts on Clamp (B). Install the Pole Cover (D) to Pole (A).
  • Page 6 Option 2: Grommet Assembly Remove adhesive backing from Foam Pad Pad (I) and place on the bottom of Pole (A). Install Pole (A) to grommet hole using Support Install the Pole Cover (D) to Pole (A). Plate (H) with M10x100mm Screw (S-B), M10 Washer (S-I), and Spring Washer (S-H).
  • Page 7 STEP 2 Lay Monitor Arms (F) on flat surface with Cable Clip Holes facing down. Add Plastic Spacers (L) to holes at ends of Monitor Arm. Cable Clip Hole (on underside) Be sure to position all Arm Assemblies so the Cable Clip Holes are facing down.
  • Page 8 STEP 2 - Cont’d Press Monitor Arm Covers (G) onto the top and bottom of arm joints. Place Cable Clips (M) into holes on bottoms of Arms. STEP 3 Slide arm assembly onto Pole (A) at desired height and secure using M8x10mm Screws (S-E) and 5mm Allen Wrench (T-B).
  • Page 9 STEP 4 Attach the Center VESA Plates (O) to the monitors you intend to mount in the center of the mount. Attach Side VESA Plates (N) to remaining monitors. Secure using appropriate Screws (M-A,M-B) and Spacers (M-C). Center VESA Plate (O) Side VESA Plate (N) Flat Monitors Curved Monitors...
  • Page 10 STEP 5 Slide the center monitors onto the Center Head (E1) and Mount (G). Install M4x6mm Screws (S-G) to secure the monitors. STEP 6 Slide the outer monitors onto Outer VESA Heads (F1). Secure with Cap Nut (S-F).
  • Page 11 Monitor Tilt Adjustment Side Monitor Tilt The exposed Nut on the side is Pry off Plastic Covers (F2) from used to adjust the tilt. Tighten the the Outer VESA Heads (F1). nut using Wrench (T-D) to adjust. Replace Plastic Covers. Center Monitor Tilt and Swivel Screw To adjust center monitor swivel or tilt, use 3mm Allen Wrench (T-A)
  • Page 12 Monitor Height Adjustment Center Monitor Height Adjustment Screw To adjust center monitor height, turn the Screw behind Center Head (E1) and Mount (G) using the 5mm Allen Wrench (T-B). Side Monitor Leveling To level the side monitors, remove Cap Nut (S-F) and turn the inner bolt with the 3mm Allen Wrench (T-A) to raise or lower the monitor.
  • Page 13 Swivel Joint Tension Adjustment To adjust swivel joint tension, remove the Monitor Arm Cover (J) and turn the Bolt underneath with the 6mm Allen Wrench (T-C). Bolt...
  • Page 14: Cable Management

    Cable Management Manage cables using Cable Clips (M) on assembled arms. Remove the split cap from the Pole (A) and feed cables through, pulling ends out from the Cable Slot in back. Replace the split cap when finished. Cable Slot...
  • Page 15 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
  • Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
