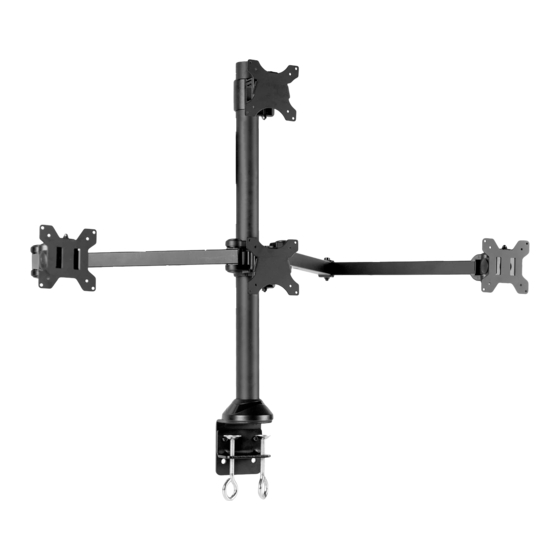

- Page 1 Quad Monitor Desk Mount Instruction Manual SKU: STAND-V104A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v104a help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Weighted Base Installation Attach clamp brace (b2) to pole (a) with clamp brace bolts (h). Attach clamp (b1) to clamp brace at desired height using M10x15 bolts (i) with Allen wrench (t). - Page 4 STEP 1 (Continued) OPTION C: Self-Drilled Grommet Base Installation Drill a 3/8” (10mm) diameter hole at desired location. Apply foam pad (o) to base of pole (a). Mount pole to grommet hole in desk using M10 bolt (k), spring washer (n), M10 washer (m) and support plate (l).
- Page 5 STEP 3 Install wire clips (x) on arms (d1,d2). Install arms on pole (a) at desired height using M8x10 bolts (j) with Allen wrench (t), making sure wire clips are facing down. Repeat for monitor mount (d3). d1,d2 STEP 4 4A: Side VESA Plates For monitors with flat back attach VESA plates (v1) with thumb screws (p).
- Page 6 STEP 5 5A: Side VESA Plates Slide monitor onto the head of arm (d2) as shown in the diagram. Secure with nut (w1). d1,d2 5B: Center VESA Plates Slide monitor onto the head of arm (d2) as shown in the diagram. Secure with screw (w2). Slide top monitor onto mount (d3) in same fashion.
- Page 7 STEP 7 Adjust the height of Center Monitors: Turn the bolt counter-clockwise to lower the center monitors. Turn the bolt clockwise to raise the center monitors. Use allen wrench (t). Adjust the height of the Side Monitors: Remove nut (w1) and turn the bolt counter-clockwise to raise the monitor. Use allen wrench (t).
- Page 8 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
