Installing the control element

Information on selecting the appropriate heater can
be founded in the table in the supplementary sheet.
Installation using adhesive pads
1

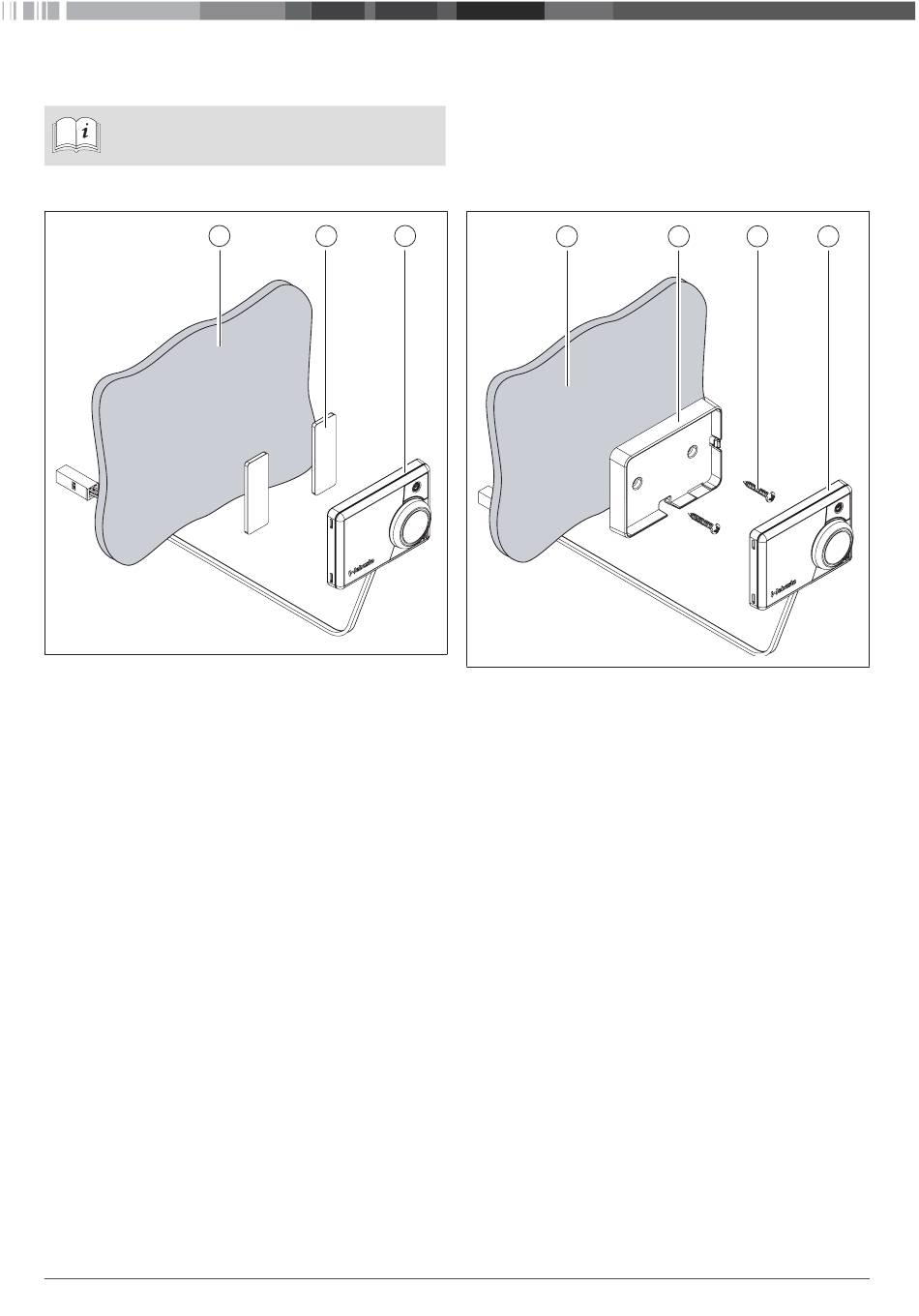

Fig. 02: Installing the control element using adhesive pads
1
Installation location
2
Adhesive pads (double-sided)
3
Control element
Determine the installation location.
X
Locate bushing for control element wiring harness.
X
Rotate control element wiring harness through installation
X
opening.
Attach connector.
X

Rear of control element is clean, dry and free of dust and grease.
Position control element.
X
Stick adhesive pads to the control element.
X
Stick control element onto the installation location.
X
MultiControl | SmartControl
Optional installation using bracket
2 3
Fig. 03: Installing the control element using a bracket
1
Installation location
2
Bracket
3
Screws
4
Control element
Determine the installation location.
X
Locate bushing for control element wiring harness.
X
Install bracket using the enclosed screws.
X
Pass the control element wiring harness through from the front.
X
Clip the control element into the bracket.
X
1 2 3 4
