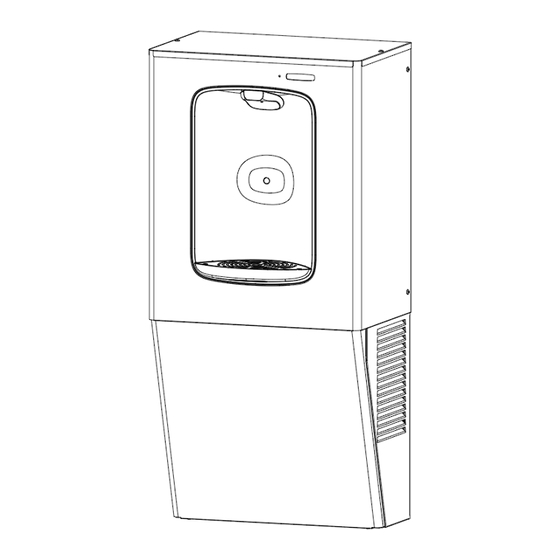

Oasis PGN8EBF Installation Instructions Manual
Wall mounted refrigerated bottle filler
Hide thumbs
Also See for PGN8EBF:
- Installation instructions manual (25 pages) ,
- Installation instructions manual (26 pages) ,
- Installation instructions manual (23 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Oasis PGN8EBF
Summary of Contents for Oasis PGN8EBF

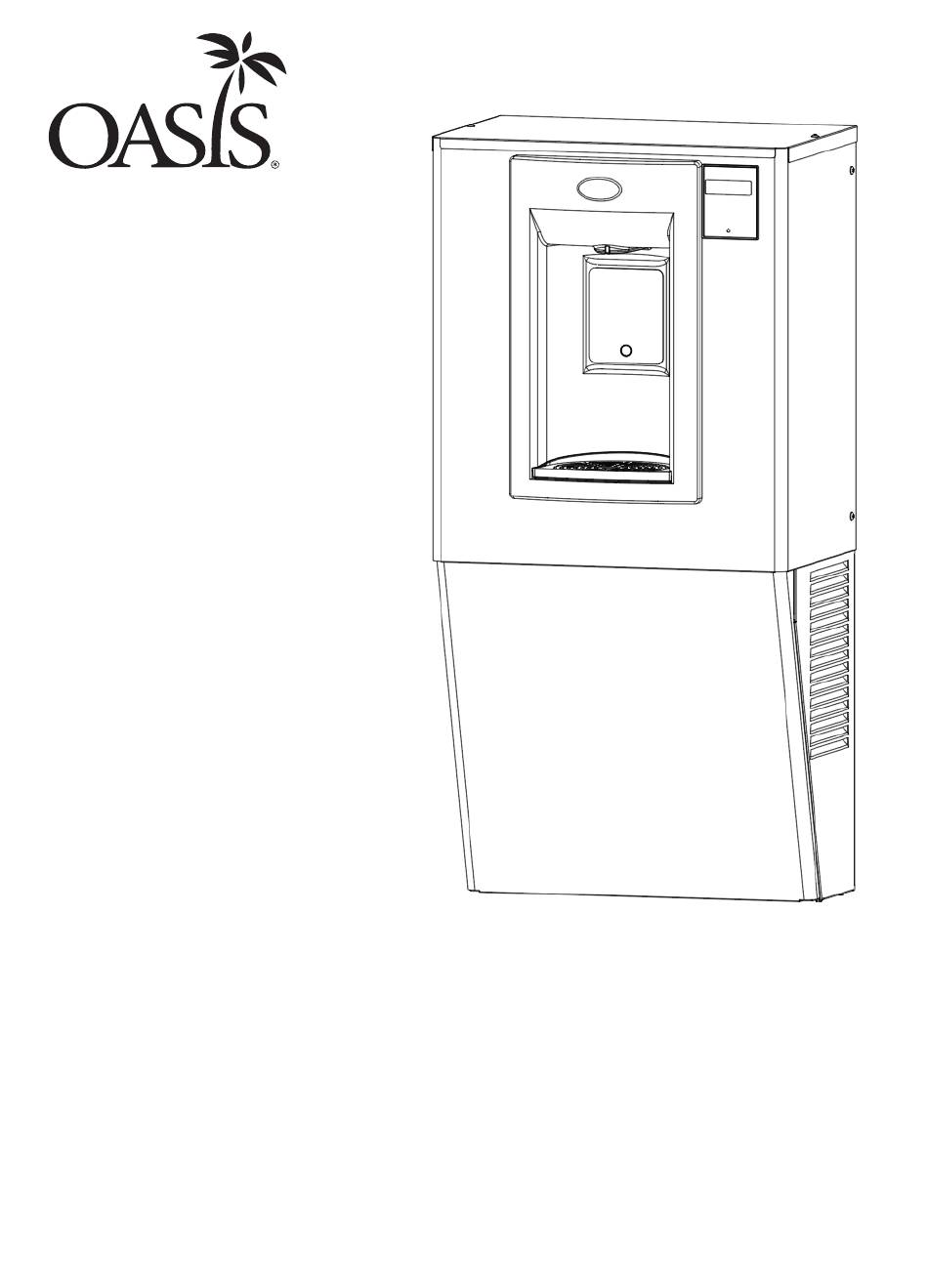

- Page 1 PGN8EBF Wall Mounted Refrigerated Bottle Filler INSTALLATION INSTRUCTIONS...
-
Page 2: Section 1: Getting Started
Section 1: Getting Started What’s Included: Drainpipe Drain Elbow T15 Torx Screws Installation instructions Tools & Hardware Required: • Means to cut 1-1/4” drain pipe • Electric drill/driver • • T15 Torx screwdriver and bit Small tubing cutter for plastic line •... -
Page 3: Section 2: Single Level Rough-In Drawing
Section 2: Single Level Rough-In Drawing PGN8EBF: NOTES: 1. TRAP, STOP VALVE AND ELECTRICAL OUTLET NOT FURNISHED. 2. ALLOW 4 INCHES [102MM] MIN. PER SIDE FOR VENTILATION. 3. RECOMMENDED ADULT BARRIER FREE HEIGHT INSTALLATION SHOWN. REDUCE HEIGHT BY 3 INCHES FOR INSTALLATIONS USED PRIMARILY BY CHILDREN AGES 12 AND YOUNGER. -
Page 4: Section 3: Preparation
Section 3: Preparation Read these instructions before installing the unit. 1. Inspect the carton and water cooler for evidence of rough handling and concealed damage. Damage claims should be filed with the carrier. 2. Locate and install plumbing and electrical service, if required, in accordance with Roughing-in Drawing. -
Page 5: Chiller Installation
CHILLER INSTALLATION... - Page 6 Section 4: Chiller Installation 1. Install the wall hanger onto the wall according to the rough-in drawing. See page 3. The Wall hanger is shipped fastened to the back of the chiller unit. Install wall hanger bracket with three chosen anchors (not provided) Refer to rough in drawing for install locations and...
-
Page 7: Bottle Filler Installation
BOTTLE FILLER INSTALLATION... -
Page 8: Section 4: Installation
Section 4: Installation 1. The PGN8EBF comes partially assembled for shipping. Remove the kit from the packaging and separate it into the assemblies and components shown below. Tool Needed: T15 Torx bit Frame Filter Support Drip Tray Assembly Cabinet Assembly... - Page 9 Section 4: Installation 2. Place the bottle filler frame against the wall and set it onto the top flange of the chiller frame. Align the side edges of the bottle filler and cooler frames to center the frame. 3. Affix the frame to the wall with at least 4 anchors into any appropriate anchor points through the staggered slotted holes.
- Page 10 Section 4: Installation 4. With 4x T15 Torx screws, assemble the drip tray assembly to the center bracket and wall frame. Put IN FRONT OF center bracket 5. Attach the filter support bracket with 2x T15 Torx screws to the frame and drip tray support bracket.
- Page 11 Drainpipes P Trap 7. Assemble PGN8EBF wrapper to the installed frame. Rest the alcove on the drip tray and ensure the wrapper walls rest OUTSIDE of the frame and side brackets. NOTE: The drip tray will hold the weight of the wrapper but it is recommended to keep a hold on the unit during installation for safety.
- Page 12 Section 4: Installation 8. If the outer edge of the drip tray is not properly aligned, loosen the screws mounting the filter support and drip tray bracket to the frame and push forward or back as needed. Then retighten the screws. Slotted Holes...
- Page 13 Section 4: Installation 9. Route the insulated cold water-out line up into the bottle filler cabinet and connect it to the solenoid valve located above the alcove. Solenoid Valve ¼” Water Line With Insulation Tubing (Provided) Cooling Tank Water Outlet 10.
- Page 14 Section 4: Installation 11. Complete the installation by turning on the water source and checking for leaks. 12. Ensure nothing is obstructing the fan blade. Plug the power cord back into the wall outlet and then test to ensure the bottle filler is functioning properly. 13.
-
Page 15: Section 5: Set-Up Guide For Oasis Electronics
® Section 5: Set-Up Guide For OASIS Hands-Free Bottle Filler Electronics •Factory default program settings are: • Bottle Count = 0.5L (1 Bottle) • Units - Gallons • Flow Rate = 1.2 GPM • Unfiltered unit • 20 second maximum dispense time •... -
Page 16: Section 6: Bottle Filler Parts Breakdown
036010-002 Waste, Tube 030152-009-SP Tube, PE White 7.5" 036010-013 Waste, Tube 038030-002 Solenoid Valve 12VDC 041244-002 Bracket, Drip Tray 031434-014 Nameplate, OASIS 041246-002 Bracket, Filter Support 036192-001 Drain, MSBF Short 026824-026 Nut, Hex Nylon 041243-002 Panel, Top 036192-001 Grille, Bottle Filler Drain... -
Page 17: Section 7: Chiller Parts Breakdown
Section 7: Chiller Parts Breakdown ITEM DESCRIPTION ITEM DESCRIPTION 041242-002 Bracket, ONN Side 041250-001 Panel, ONN Front 035080-010 Panel, Side Left STN 430 035081-010 Panel, Side Right STN 430 026794-014 Tube, Straight 031766-201 Condenser Elec CKT DWG W/Lead Wire 031767-004 Shroud, Fan 026407-027 P/NS... -
Page 18: Section 8: Maintenance And Decommissioning
Section 8: Maintenance and Decommissioning Maintenance 1. Inspection of condenser should be made at 3-month intervals. To remove dirt and lint from condenser, disconnect power supply cord, then use small stiff non-wire or vacuum cleaner attachment brush. Observance of this procedure will ensure adequate air circulation through condenser so operation is efficient and economical. - Page 19 WARNING The warranty and the Underwriters' Laboratory Listing for this machine are automatically voided if this machine is altered, modified, or combined with any other machine or device. Alteration or modification of this machine may cause serious flooding and/or hazardous electrical shock or fire. EXCEPT AS SET FORTH HEREIN, THE MANUFACTURER MAKES NO OTHER WARRANTY, GUARANTEE OR AGREEMENT EXPRESSED, IMPLIED OR STATUTORY, INCLUDING ANY IMPLIED WARRANTY OR MERCHANTABILITY OR...
- Page 20 Wall Mounted Refrigerated Bottle Filler Installation Instructions P/N 030099-670 Date: 05/2021 OASIS INTERNATIONAL 222 East Campus View Blvd. © 2021 LVD Acquisition, LLC Columbus, OH 43235 Oasis is a registered trademark of LVD Acquisition, LLC dba 614-861-1350 Oasis International www.oasiscoolers.com...
