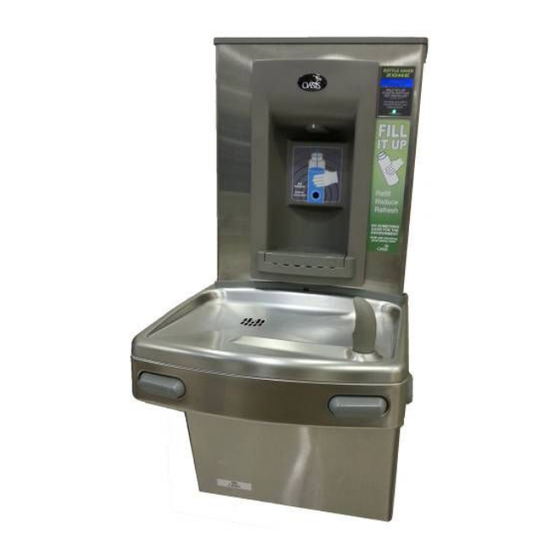

Oasis PACSL Instructions Manual

PACSL, P8ACSL, P8ACSLEE, PF8ACSL, PF8ACSLEE, PV8ACSL, PVF8ACSL, PGACSL, PG8ACSL
SUNROC MODELS ADA8ACB, ADA8ACBHF, ADAF8ACB, ADAF8ACBHF
A. INSPECTION
Inspect the water cooler, water fountain and cartons for evidence of rough handling and concealed damage. Damage claims should be filed
with the carrier.
B. TO PUT WATER COOLER AND FOUNTAIN INTO SERVICE
1. NOTE: The following states require a licensed plumber to install cooler; AG, GA, MA, MI, OK, RI, SC, SD, TX, VT and WI.
CA, KS, MN, NM and OR allow for a state-registered installer or contractor as well. State and local plumbing codes may prohibit use
of saddle tapping valves for water line connection in some applications. All connections must conform to applicable plumbing codes.
2. The P8ACSL/ADA8ACB is composed of a water cooler and a water fountain. The water cooler contains the refrigeration system and is
always mounted on the right side. This unit can be configured with the water cooler high or low. Refer to proper roughing in drawing
for location of plumbing and electrical service. Filter units have additional instructions on a label inside fountain side access panel.
Read these before installing unit. This drinking water cooler is designed to be operated at a water supply line pressure of up to 100 psi
(690 kPa). A pressure regulator must be installed in front of the unit's water inlet if the water pressure (including any possible pressure
spikes) could exceed 100 psi (690 kPa).
3. FLUSH BUILDING WATER SUPPLY BEFORE INSTALLING UNIT.
4. Install wall hangers as shown on the desired roughing in drawing. Wall hangers are shipped fastened to the backs of each unit. Units
with factory installed filters have additional instructions on a label inside of the access panel. Read these before installing unit.
5. To configure this cooler for right side high or right side low installation, refer to details below. Bottom screws of the
appropriate side panel may be temporarily removed to install patch plate. Assemble drains as shown below, matching the
position of the gaskets to the contour of the cooler tops.
6. Mount the water cooler on the right hanger.
7. Straighten inlet "Water In" tube in water fountain. Mount water fountain on left side hanger while routing "Water In" tube through
access hole to water cooler. Remove plug from "Drain/Remote Cold Water" connection and insert "Water In" tube.
8. All provided waste drain parts for field installation are packed in the water fountain. Assemble drain per appropriate roughing
in drawing. The short leg of the crossover piece will be on the water cooler side. When unit has an internal waste trap, it
should be wrapped with insulating tape to prevent sweating. Use of 1-3/4" knockout for a waste line is not recommended
because of potential conflict with ADA* toe space requirements. Check with your local building code inspector for approval.
9. Install a shut off valve in water supply line. Remove strainer from cooler "Water Supply" tube. Solder 3/8" inlet tube extension
(furnished) with lead free solder to "Water Supply" tube and insert strainer in open end of extension. Connect extension to shut off
valve. To allow access to strainer for service, this connection should not be a solder or flare joint. To ease removal of strainer, a sheet
metal screw may be lightly threaded into the open end.
10. Rotate fan blade by hand to see that it is free of obstructions.
11. Check available power supply against water cooler data plate to assure correct electrical service. This drinking water cooler is intended
to be connected to a 20A minimum ground fault circuit interrupting (GFCI) device to meet UL requirements. Plug power supply cord
into wall outlet. The rear most 1-3/8 diameter knockout in frame bottom is for an externally located electrical supply. Make sure
knockout hole edge is smooth and free of any burrs. Use of Heyco bushing #2184 in knocked out hole is recommended to prevent
damage to service cord and to close up excess opening around cord. Route cord so it does not interfere with ADA* space requirements.
12. To fill cold water tank on water cooler, open water supply line shut-off and push any one of front pushbuttons to allow water to flow to
bubbler. On EE model, actuate solenoid by holding one hand approximately 3 inches from infrared sensor. Run water until stream is
free of bubbles.
13. To adjust bubbler stream:
a) All pushbutton models are equipped with a cartridge regulator. The P8ACSL/ADA8ACB and PF8ACSL/ADAF8ACB have a slot
in the shelf below the pushbuttons. Insert a screwdriver in this slot to adjust regulator. Turn adjustment clockwise to increase
stream height. To access PV8ACSL and PFV8ACSL adjustment, remove bezel and button from front of cooler.
b) Electric eye (EE or HF) models have regulator built into bubbler. If adjustment is needed, insert 5/64 wrench approximately 1-1/8"
into bubbler nozzle opening until it bottoms out and is seated in adjustment screw. Turn adjustment screw clockwise to reduce
stream height or counterclockwise to increase height. Note, less than one turn is required to go from a closed to a wide open flow.
Do not overtighten adjuster in closed position as stripping the hex impression in adjustment screw may result.
14. To adjust beam range of sensor (EE or HF models only):
a) Shut off water and power supplies.
b) Remove two screws from top front.
c) To adjust sensing distance, use a mini-screwdriver (3.0mm flat tip or smaller) and rotate
adjustment potentiometer screw on side of sensor. Turn clockwise to sense objects further
away. This is represented by thicker end of curve on sensor label. The screw can be turned
a maximum of ¾ turns. The sensor has a maximum range of approximately 30". It is factory set at 15".
d) NOTE: Do not turn adjustment as high as it can go. If you do the sensor will lock on until you turn sensing distance back down.
e) There is an adjustable on-time delay of 0.5 seconds to prevent nuisance actuation of solenoid valve should someone walk by. To
adjust on-time delay, rotate blue knob on timer clockwise. The maximum on-time delay is 1 second. After drinking, the water will
shut off immediately after walking away. Maximum run time is 30 seconds should someone tamper with the sensor. NOTE:
Walls with a reflective finish, i.e., ceramic tile, across from sensor may cause false actuation no matter what sensor adjustment is
for distance. Therefore, do not install unit in such an area or dull surface of wall so it will not reflect light.
®
OASIS VERSACOOLER
INSTRUCTIONS
®
II MODELS
Adjustment
potentiometer for
sensing distance
