Use & Care Guide
Premium Point-of-Use Water
Cooler
Use & Care Guidelines & Features ........................................................ 2
Electrical Power Requirements .............................................................. 3
Leak controller instructions .................................................................... 3
Filter Installation .................................................................................... 4
First Use set-up procedure/Programming the LCD display.................... 5
Control Panel Quick Reference Guide ................................................... 8
Cleaning instructions .............................................................................. 8
Sanitizing instructions .......................................................................... 10
Servicing the cooler .............................................................................. 11
Troubleshooting the cooler ................................................................... 13
Troubleshooting the leak controller ...................................................... 14
Warranty ............................................................................................... 15
AQUABAR 2
Table of Contents
Setting the Clock ...................................................................... 6
Setting hot and cold temperature .............................................. 6
Setting Energy Saver mode ...................................................... 6
Setting filter life monitor .......................................................... 7
Setting UV bulb life monitor .................................................... 7
Hot booster mode ..................................................................... 8
Locking the display controls .................................................... 8
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Oasis POU2LRHK POU2LRHK
Summary of Contents for Oasis POU2LRHK POU2LRHK
-
Page 1: Table Of Contents

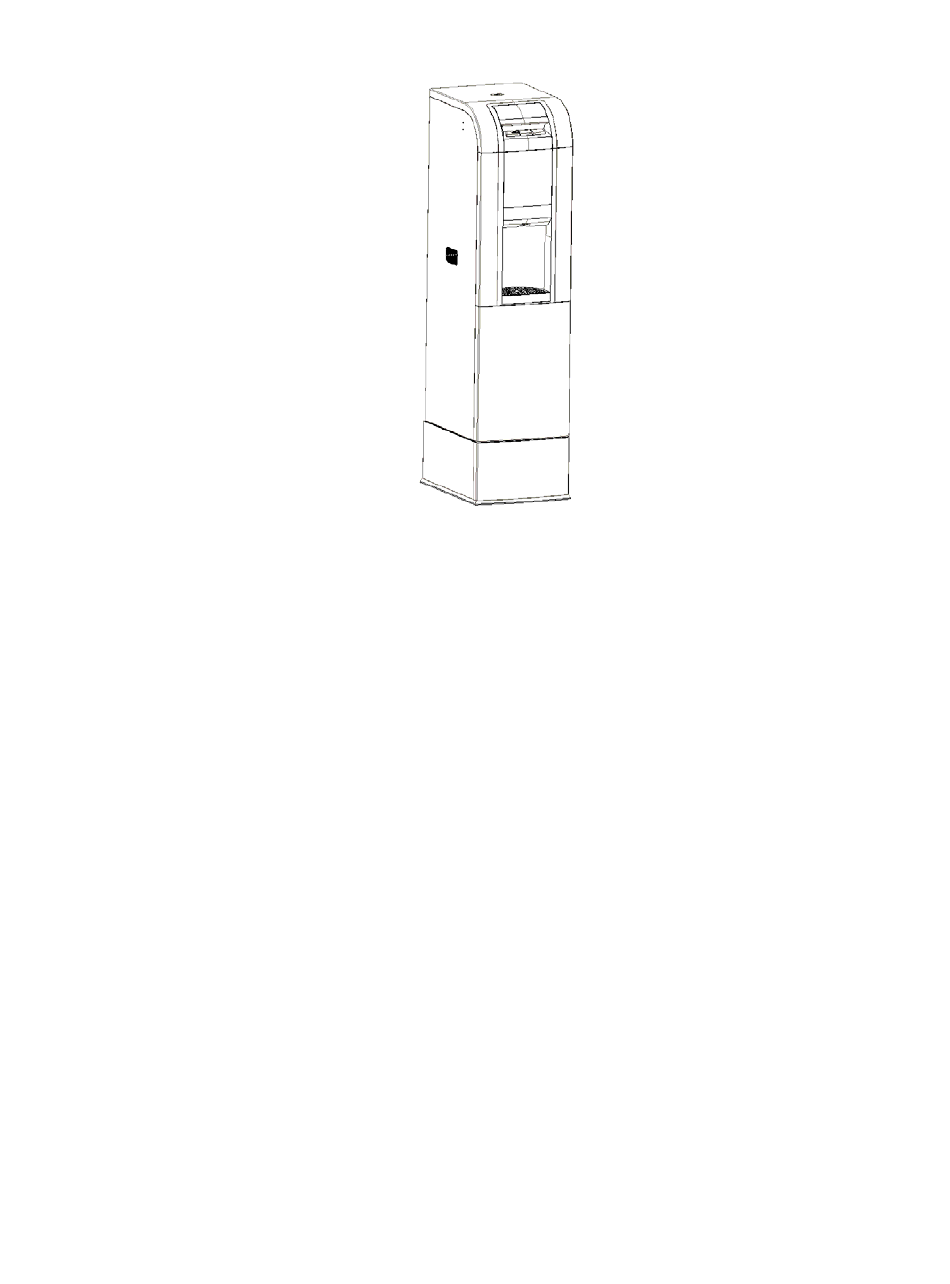

Use & Care Guide Premium Point-of-Use Water Cooler AQUABAR 2 Table of Contents Use & Care Guidelines & Features ............2 Electrical Power Requirements .............. 3 Leak controller instructions ..............3 Filter Installation ..................4 First Use set-up procedure/Programming the LCD display....5 ... -
Page 2: Use & Care Guidelines & Features
Installing the Water Cooler Determine the best installation location. Consider customer preference, electrical outlet, and cold water line access. WARNING: A pressure regulator must be installed in front of the unit’s water inlet if the water pressure (including any possible pressure spikes) could exceed 100 psi (690 kPa). Failure to comply will void the warranty. The manufacturer accepts no liability for damage caused by excessive water pressure. -
Page 3: Electrical Power Requirements
replace bulb and sleeve assembly, remove the cooler top and disconnect wire harness. Rotate assembly counter-clockwise to loosen from SS lid. Lift the bulb assembly out. Wipe the quartz sleeve with isopropyl alcohol on a soft clean cloth to ensure effectiveness. -
Page 4: Filter Installation
Snap the plastic sensor connector onto plastic base in the location marked in figure 2. The clip snaps over rib on outside of base so that terminals in the plastic housing are inside the base. Open valve again. Now controller is ready to sense any water. NOTE: Water supply line should be connected directly to leak controller so it will shut water off as close to the water supply valve as possible. -
Page 5: First Use Set-Up Procedure/Programming The Lcd Display
Connect your filters and turn on water to flush filter(s) per the manufacturer’s instructions. Check for leaks. The filters are after the reservoir water valve, so if no water flows, make sure the safety float hasn’t tripped. REVERSE OSMOSIS FILTRATION INSTALLATION 10. -
Page 6: Setting The Clock
SET THE CLOCK Press “CLOCK SET” button once; the Hour will flash. Use (+) or (-) button to set hour. Make sure AM or PM setting is correct. Press “CLOCK SET” button Figure 5 again; the Minutes will flash. Use (+) or (-) button to set minutes. -
Page 7: Setting Filter Life Monitor
14. Use the (+) button to move forward from weekdays to Saturday/Sunday and the (-) button to move back to the weekdays. It does not roll over from Saturday/Sunday to Monday through Friday. NOTE: The beginning and ending time for weekdays and weekends must be set individually. This means the procedure must be repeated two times to set the energy saver schedule for weekends and weekdays. -
Page 8: Hot Booster Mode
31. Use the (+) or (-) button to set the total number of months you wish to monitor up to. The maximum number you can enter is 12 months and it does not roll over to 0 after this value. Hold down the (+) or (-) button to roll through the numbers. - Page 9 Wash the drip tray in soapy water. DO NOT PLACE IN DISHWASHER. To reduce water spotting or deposits, the drip tray should be emptied, cleaned and wiped dry regularly. CLEANING YOUR WATER RESERVOIR Suggested frequency: once every 6 months for non-UV models, at every bulb change (12 months) for UV models WASH Press “POWER”...
-
Page 10: Sanitizing Instructions
tube. Put the side panel back on, then place the cabinet top on and tighten the screws so they are snug. Return to page 5 to finish the first use preparation. STEPS 22 & 23 ARE FOR TRI-TEMP MODELS ONLY 22. -
Page 11: Servicing The Cooler
before plugging in the cooler to avoid overheating. You can check for this by pressing the hot water dispense button to see if any water flows out of the spout. Check for leaks. 18. Plug in the cooler. Push the “POWER” button to turn on the LCD display and power to the cooler for the LCD models. 19. - Page 12 TO REMOVE THE SKELETON FROM THE PLASTIC BASE This would only be necessary if a refrigeration repair is required. Follow the sequence of steps listed below to avoid damaging the plastic base in the repair process. Drain all water from the unit. This will make the unit easier to handle. Remove the side panels as described above.
-
Page 13: Troubleshooting The Cooler
WATER COOLER TROUBLESHOOTING Water cooler leaks Unplug water cooler and turn OFF water supply immediately. Wipe up any water on the floor. on the inside Call customer service. LCD MODELS: Set cold control to COLDER or COLDEST. If water is not colder after 2 hours, Water is not cold call customer service. -
Page 14: Troubleshooting The Leak Controller
TROUBLESHOOTING LEAK CONTROLLER * Please note that whenever the valve closes to the red position (except when testing), you must do the following: Change the batteries Check and test the sensor and controller Look for leaks. It is possible that you had a leak and it has dried. Condition Knob Speaker... -
Page 15: Warranty
OWNER’S COPY 3 YEAR WATER COOLER LIMITED WARRANTY GENERAL PROVISIONS AND EXCLUSIONS: FIRST YEAR: This warranty applies only within the Continental Limits of the The Manufacturer promises the original purchaser (user) to United States of America and Canada. repair or, at the Manufacturer’s option, to replace any part of this water cooler which proves to be inoperative due to a defect This warranty does not apply and no agreement, either expressed or in material or workmanship under normal use, for a period of... - Page 16 OASIS INTERNATIONAL 222 E. Campus View Blvd • Columbus, OH 43235 U.S.A. 1-800-64-OASIS (1-800-646-2747) www.Oasiscoolers.com Printed in China ©2016 LVD Acquisitions 031666-019 Rev.B...
