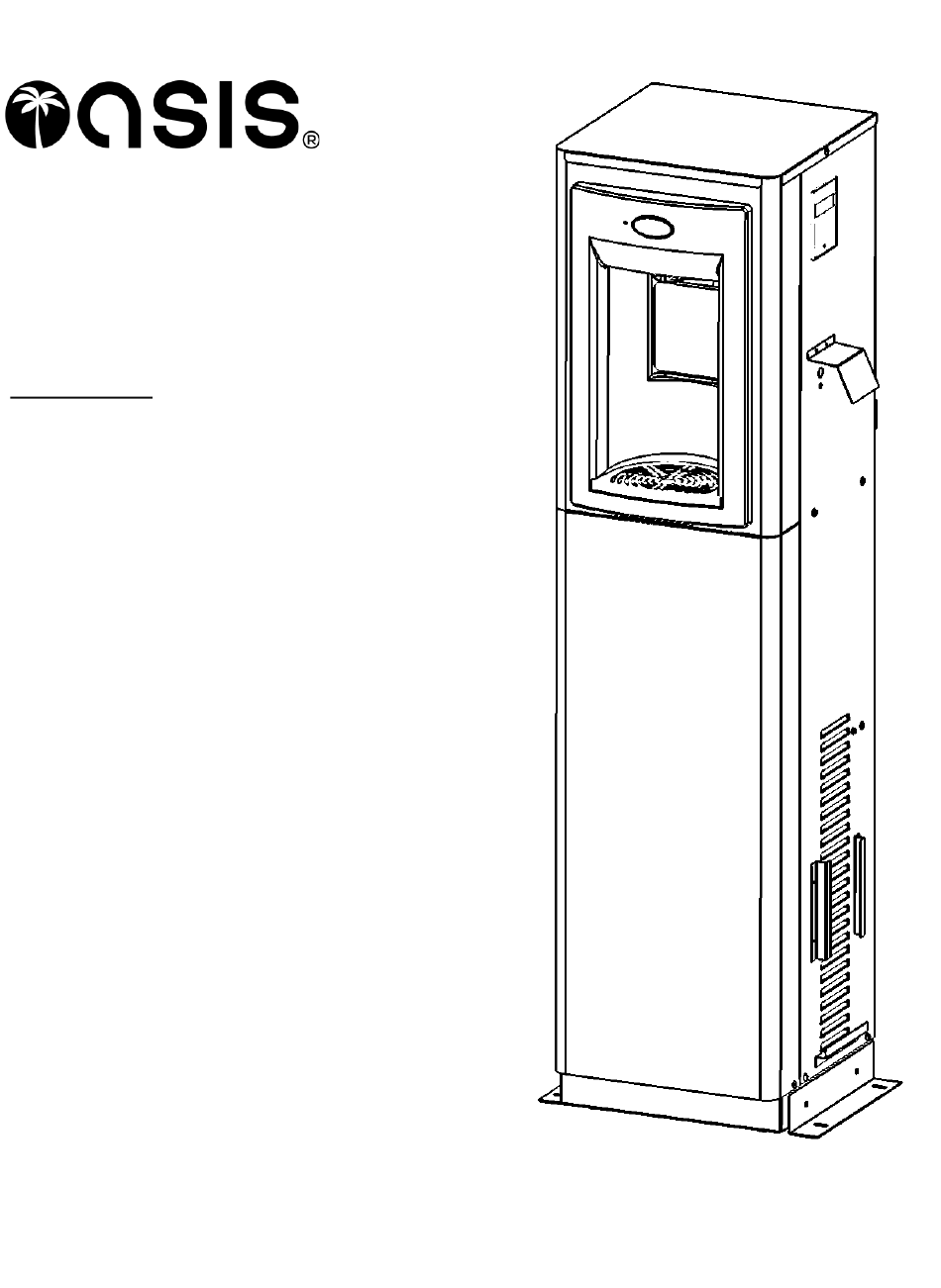

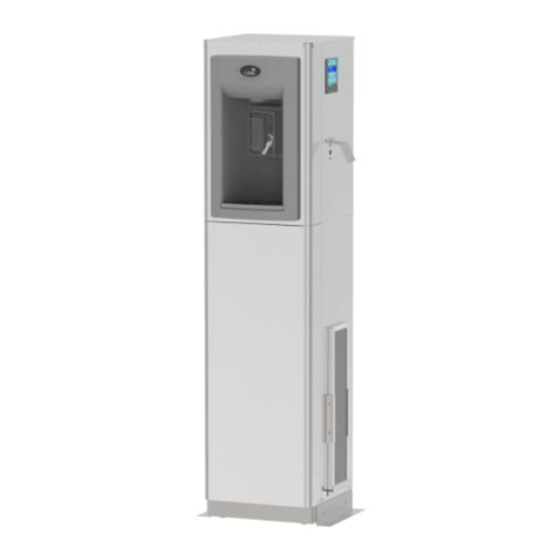

- Page 1 FREE STANDING CONTACTLESS OUTDOOR BOTTLE FILLER WITH QUASAR UV-C LED Installation Instructions For: UNFILTERED: PCPD10EBQ OASIS International 222 East Campus View Blvd. Columbus, OH 43235 614-861-1350 www.oasiscoolers.com...
-
Page 2: Product Specifications
INDEX PRODUCT SPECIFICATIONS IMPORTANT REQUIREMENTS SAFETY WARNINGS QUASAR UV-C LED OPERATION GETTING STARTED PROPER QUICK CONNECT FITTING CONNECTION INSTRUCTIONS INSTALLATION SET-UP GUIDE FOR DISPENSER PCB ELECTRONICS AIR FILTER CARE & USE 1. PRODUCT SPECIFICATIONS Dimensions: Depth 13.35”(339.0 mm) Width 12” (304.8 mm) Height 49.7”... - Page 3 ROUGHING-IN AND DIMENSIONAL DRAWING...
-
Page 4: Important Requirements
2. IMPORTANT REQUIREMENTS • Use only original and new parts to guarantee the reliability, optimization, and performance of the OASIS water machine. • Always wear proper protection when performing any type of service or maintenance. • When cleaning the unit, do not use corrosive acidic products, or metal brushes. - Page 5 4. QUASAR UV-C LED OPERATION QUASAR is a form of dispense point water treatment that utilizes UV-C LED’s to inactivate pathogens. Operation: The QUASAR activation is automatic. The UV-C LED’s turn ON when water is dispensed and OFF when the dispense stops. During non-use periods the QUASAR automatically cycles ON for ten seconds every ten minutes.
-
Page 6: Getting Started
5. GETTING STARTED: What’s Included: OUTDOOR BOTTLE FILLER MOUNTING BRACKET IR SENSOR GUARD AIR FILTER MOUNTING BRACKET DURAFLOW AIR FILTER Mounting Bracket 2X IR Sensor Guard Air Filter Mounting Duraflow Air Bracket 6X Filter 2X OUTDOOR BOTTLE FILLER... -
Page 7: Proper Quick Connect Fitting Connection Instructions
6. PROPER QUICK CONNECT FITTING CONNECTION INSTRUCTIONS: Quick-Connect Fittings • If you need to cut the plastic tubing, be sure to cut tube ends square and straight. Do not deform the tube (i.e., cause tube to compress its diameter so it is no longer round, or it may result in a water leak at the fitting). -
Page 8: Installation
7. INSTALLATION: STEP 1 & 2: Carefully unpack Air filter mounting brackets, IR Sensor Guard, and pallet mounting brackets Install using included Torx Screws (quantity 18) See Diagram 1&2. INSTALL USING DIAGRAM 2 DIAGRAM 1 T15 TORX SCREWS QTY. 18... - Page 9 7. INSTALLATION: STEPS 3 through 5 (for optional filters) Unpack the VersaFilter III and remove the sanitary cap. Looking at the filter top, orient the filter so that the rectangular lug, on top of the filter faces forward. Push the filter up into the filter housing and rotate the filter one-quarter turn to the right until it stops turning.
- Page 10 7. INSTALLATION: STEP 6: Locate the snap bushing in the back of the cabinet and feed 1-1/2” OD Drain Pipe through the hole. See Diagram 4 & 5. Drain Pipe – shown after completing Step 6. P-Trap Located behind the filter mounting bracket DIAGRAM 4...
-
Page 11: Connect Water Supply
7. INSTALLATION: STEPS 7 through 9: (See Diagram 6) Connecting 1/4” OD water supply tube to 1/4” quick connect fitting on the back of the unit. Refer to Section 6 for instructions on how to properly connect to quick connect fittings. IMPORTANT: Before connecting water supply to dispenser, flush building water supply. -
Page 12: Top View
7. INSTALLATION: STEPS 10 through 18: 10. NOTE: This unit contains the QUASAR UV-C LED. IMPORTANT: REVIEW Section 4: QUASAR UV-C LED OPERATION before proceeding. Failure to follow Section 4 can damage the QUASAR. Do not attempt to operate the electronic bottle filler dispenser until the cooling tank is filled and the water filters are flushed. - Page 13 RUN CAL Depress button 3 seconds to run calibration again, AGAIN? or momentary press to advance to next menu. P/N 030099-713, Rev. A 04/2023 ©2021 LVD Acquisition, LLC; OASIS and QUASAR are registered trademarks of LVD Acquisition, LLC dba OASIS International.
- Page 14 9. AIR FILTER CARE & USE: P/N 030099-713, Rev. A 04/2023 ©2021 LVD Acquisition, LLC; OASIS and QUASAR are registered trademarks of LVD Acquisition, LLC dba OASIS International.
