Fametech AP-3515 Quick Installation Manual page 2

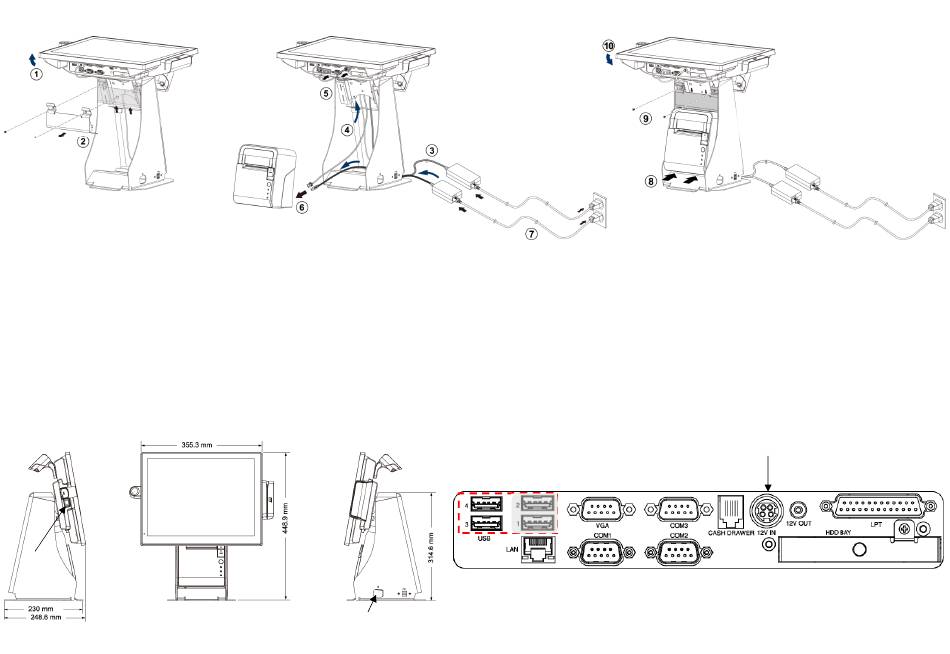

Install Your POS System

1. Tilt the POS horizontally.
2. Loosen the screws and push upward to remove the bracket from the base.
3. Pass the cables of the External Power Adaptors (POS system and
Receipt Printer) through the Cable Access Opening of the base.
4. Arrange the DC power cable (POS) and printer connector cable (USB or COM),
then pass through the Cable Routing Slot of base.
5. Connector with DC power cable (POS) and printer connector cable to the
POS system (Bottom I/O Ports).
Parts Descriptions

i-Button
Touch Screen
Power Thermal
Switch
Printer
LCD
MSR
Base
Printer Power Switch
Access Opening
6. Connect with DC power cable (Printer) and printer connector cable (USB or COM)
to the Receipt Printer.
7. Connect with two power cords to the Electrical Outlet.
8. Install the Receipt Printer to the base.
9. Re-install the Bracket to the base and tighten the securing screws of the Bracket.
10. Adjust the POS main system monitor to the proper view angle.
Turn on the power switches of the POS main system monitor (left side of panel)
and Receipt Printer (through the Printer power switch access opening).
I/O Ports Descriptions

USB Ports
Base
USB Ports
LAN
Main Power
Input
Cash
COM 3
VGA Drawer
COM 1 COM 2
Bottom I/O Ports
12V DC LPT
Out (Optional)
Modular
HDD/SSD Slot
