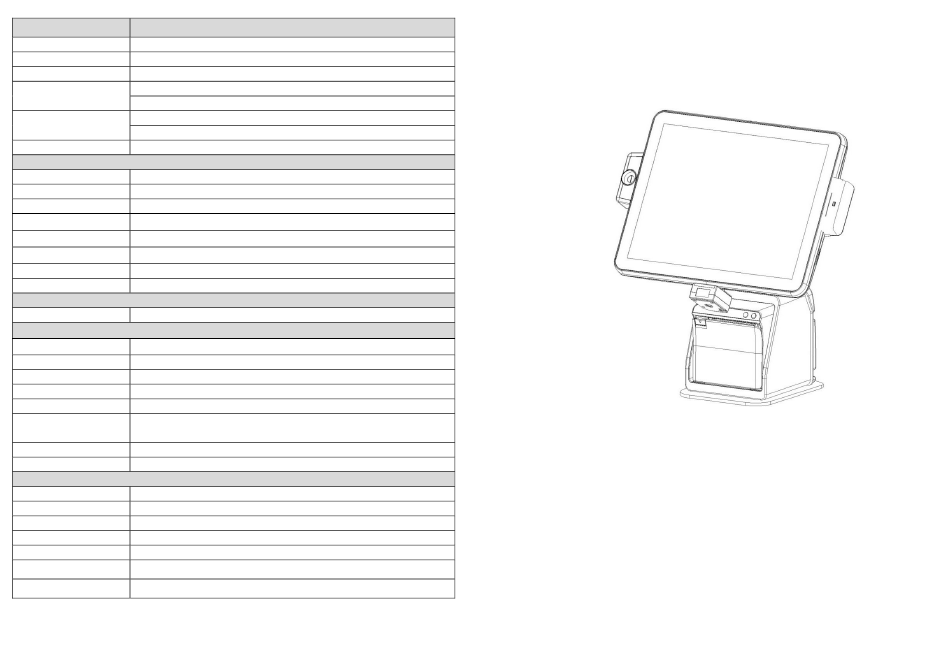

Specifications
Model Name
Processor
Intel® Bay Trail-D J1900 2.0G up to 2.4G, 2M Cache
Memory
Storage
LCD Panel
Touch Panel
Speaker
I/O Expansion
USB
LAN
COM
Parallel
VGA
Cash Drawer
1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper
DC Power Out
DC Power In
Power Management
Power Adapter
Mechanical & Environmental
IP Level
Tilt Adjustment
Dimension
Weight
8.3 KG (without Printer); 9.5 KG (with Printer)
Certification
Operation System
Windows Embedded 8.1 Industry/Windows 10 IoT/Linux (Ubuntu)
Operation Condition
0°C to +40°C / 20 to 80% without condensation
Storage Condition
-20°C to +55°C / 20 to 85% without condensation
Optional Accessories
Thermal Printer
Thermal Printer with cutter, 203 dpi and 250 mm/s supported
2nd Display
9.7" (1024 x 768) LCD Display, Option : PCAP Touch Panel
Customer Display
MSR
Bi-directional, Comply with ISO 7811 and Three Track support
i-Button
Barcode Scanner
Wi-Fi
AP-5515
1 x DDR3L SODIMM, up to 8GB
1 x 2.5" SATA BAY (Option : m-SATA)
15-inch TFT LCD with LED Backlight
1024 (W) RGB x 768 (H)
True-Flat Projected Capacitive Multi Touch
True-Flat 5-wire Resistive Touch
1 x 2W High Quality Speaker
4 x USB (3*USB 2.0 and 1*USB 3.0)
1 x RJ45 10/100/1000Mbps Giga Ethernet
4 x COM (with RI/+5V/12V)
1 x DB25 Parallel Port (option)
1 x DB-15 VGA Port
1 x +12V Power Out
1 x Standard Mini-DIN 4PIN type
12V@5.0A, 60W Adapter
IP65 on Front Panel
15° ~ 85 °
355.7 (W) x 443.3 (H) x 257.1 (D) mm
CE/FCC/LVD
POS Ready 7/
VFD, 20 Columns x 2 Lines
Dallas i-button Reader
2D CMOS Barcode Scanner
Wi-Fi IEEE 802.11 a/b/g/n/ac
AP-5515
All-in-One Touch POS Terminal
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
Read following instructions carefully.
Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
Make sure that the voltage applied to the power outlet is within the specified
range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
Power off the system and remove the power adapter while cleaning the
system.
Before powering on the system, make sure all the peripherals are
firmly installed.
