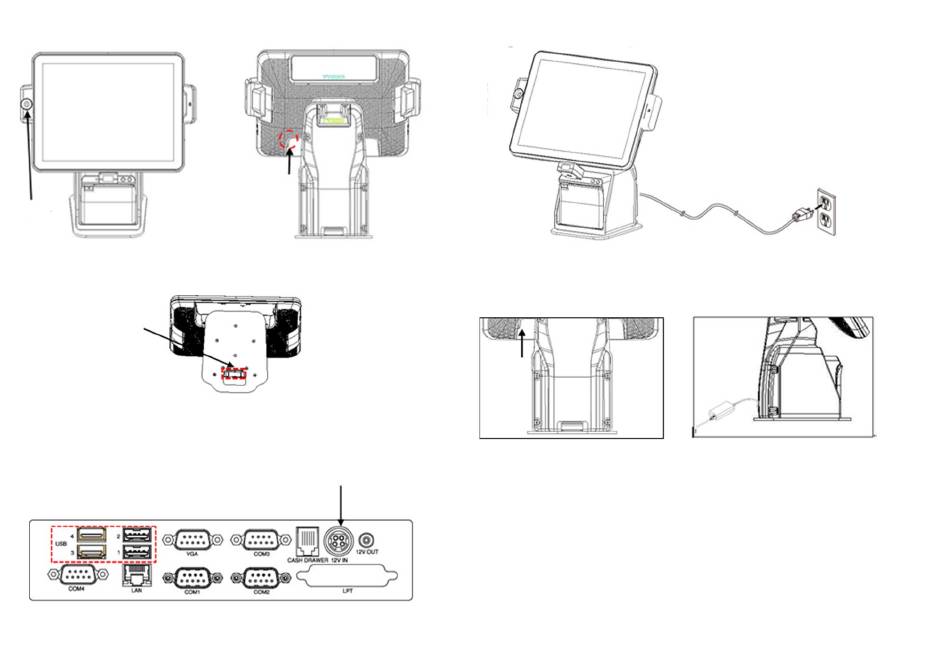

Parts Descriptions
LCD
Touch Screen
i-Button
(Optional)
Front View
AC Power
Cord
Connector
Bottom I/O Ports
USB Ports
VGA
COM4
LAN
COM1
Customer Display or 2
LCD Display (Optional)
MSR
(Optional)
Power
Switch
Cable Access
Opening
Rear View
Base
Main Power
Inout
Cash
12V DC
COM3
Out
Drawer
COM2
LPT
(Optional)
Install Your POS System
nd
POS Terminal
1.
Place the POS terminal on the proper location.
2.
Connect the power cord to the POS terminal.
Power
Switch
Cable Access Opening
of the Base
3.
Connect the optional peripherals to the POS
(for example: Mouse, Keyboard, and Barcode Scanner).
4.
Plug the AC power cord to the power source (electrical outlet).
5.
Make sure they are properly connected to the POS terminal, Power
Adapter, and Power Source.
6.
Turn on the switches of optional peripherals (if installed).
7.
Turn on the power switch of the POS terminal (on the back of the
POS terminal).
Electrical Outlet
Power Cord
Cable Access
Opening
Power Cord
