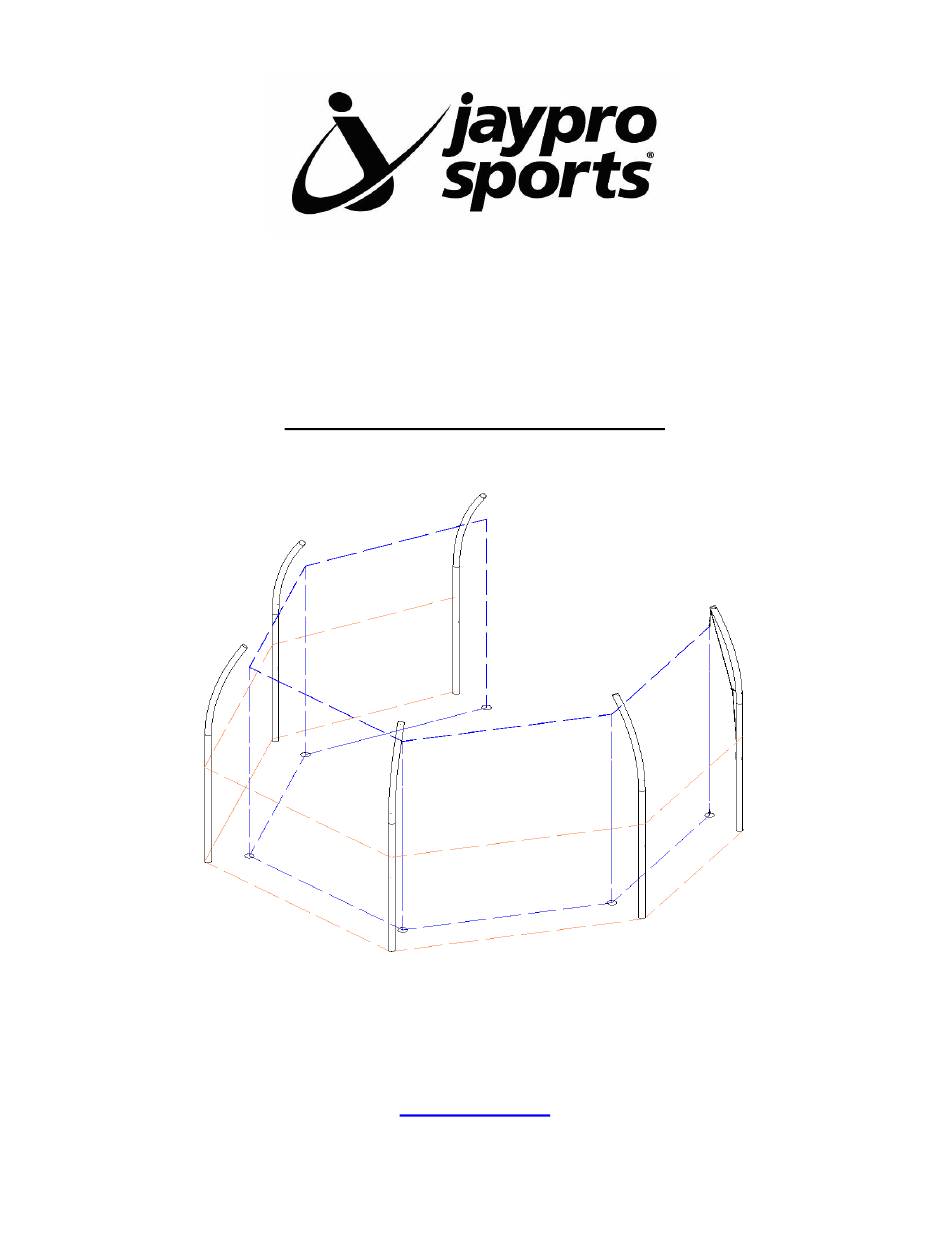

- Page 1 --- DCHS-35BN --- (HIGH SCHOOL DISCUS CAGE w/ BARRIER NET) Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Rev: - Page 1 of 10...
- Page 2 PARTS LIST HIGH SCHOOL DISCUS CAGE w/ BARRIER NET IMAGE DESCRIPTION H.S. DISCUS POLE DISCUS NET BARRIER NET 4" PLASTIC PIPE CAPS, BLACK 1'' SWIVEL PULLEY 5/16" x 3 1/8" SNAP HOOK 5/16 DOUBLE BRAIDED BLACK ROPE x 20 FT 1/4”...
- Page 3 IMAGE DESCRIPTION 3/8"-16 HEX HD LOCKNUT, ZP 3/8" FLAT WASHER, ZP 3/8"-16 TREADED EXPANSION ANCHOR, ZP 1/4"-20 x 5 1/2" HEX HD SCREW, ZP 1/4"-20 NYLON LOCKNUT, ZP 1/4" SAE FLAT WASHER, ZP 1/4'' SPLIT LOCK WASHER, ZP 1/4" WIRE ROPE CLIPS 1/4"...
-
Page 4: Tools Required
HAZARDOUS. 3) ALTERATION OR MODIFICATION OF THIS EQUIPMENT MAY BE HAZARDOUS AND RESULT IN INJURY. FOR REPAIR OR REPLACEMENT, CONTACT YOUR DEALER OR JAYPRO SPORTS. TOOLS REQUIRED: (1) 7/16” and 9/16” Socket Wrench and Box Wrench (1) 7/16” Nut Driver... - Page 5 Layout & Excavation: 1) Note these are suggested dimensions for average soil conditions, consult local building codes. 2) Dig six 30” deep x 24” wide holes for the pole and six 20” deep x 6” wide holes for the net anchor shown in figure 1. Ground sleeves sold separately. (DCHS-6S) 3) For the pole footing, pour 6”...
- Page 6 Install Pole Hardware: 1) Assemble two sets of 3/8” eyebolt hardware & 1/4” cleat hardware and pole cap onto the poles as show in figure 4. Route the hoisting rope through the pulley. 2) Attach the snap hook to the hoisting rope with a bowline knot. Temporarily attach the free end of the hoisting rope to the snap hook.
- Page 7 5/16” x 3 1/8” SNAP HOOK 3/8"-16 x 5" LONG EYEBOLT 3/8"-16 HEX HD LOCKNUT 3/8" FLAT WASHER 3/8" FLAT WASHER ~ Backside ~ ~ Inside Cage ~ 1/4"-20 x 5 1/2" HEX HD SCREW (3X) 1/4" WASHER LOCK 1/4"-20 NYLON LOCK NUT 1/4"...
- Page 8 Layout Pole & Net: 1) Before inserting the poles into the sleeves, check to make sure: i) The cleat installed opposite of the pulley. ii) Rune the hoisting rope thru pulley. iii) Secure both ends together (loosely). 2) Lay the net out lengthwise and cut the 3/16” coated aircraft cable to length, extending each end enough to make up the loop.
- Page 9 FIGURE: 5 – TYP HOIST END 1/4" WIRE ROPE THIMBLE with (2X) 1/4" WIRE ROPE CLIPS STRIP OFF VINYL COATING ON AIRCRAFT CABL 8" BLACK CABLE TIE (SPACE 12” ON CENTER) MAIN NET (14’ x 55’) FIGURE: 6 – TYP HOIST END Rev: - Page 9 of 10...
- Page 10 SNAP HOOK BARRIER NETTING VELCRO TIE STRAP Rev: - Page 10 of 10...
