Wiring Diagrams - SMC Networks ITV0000 Series Operation Manual

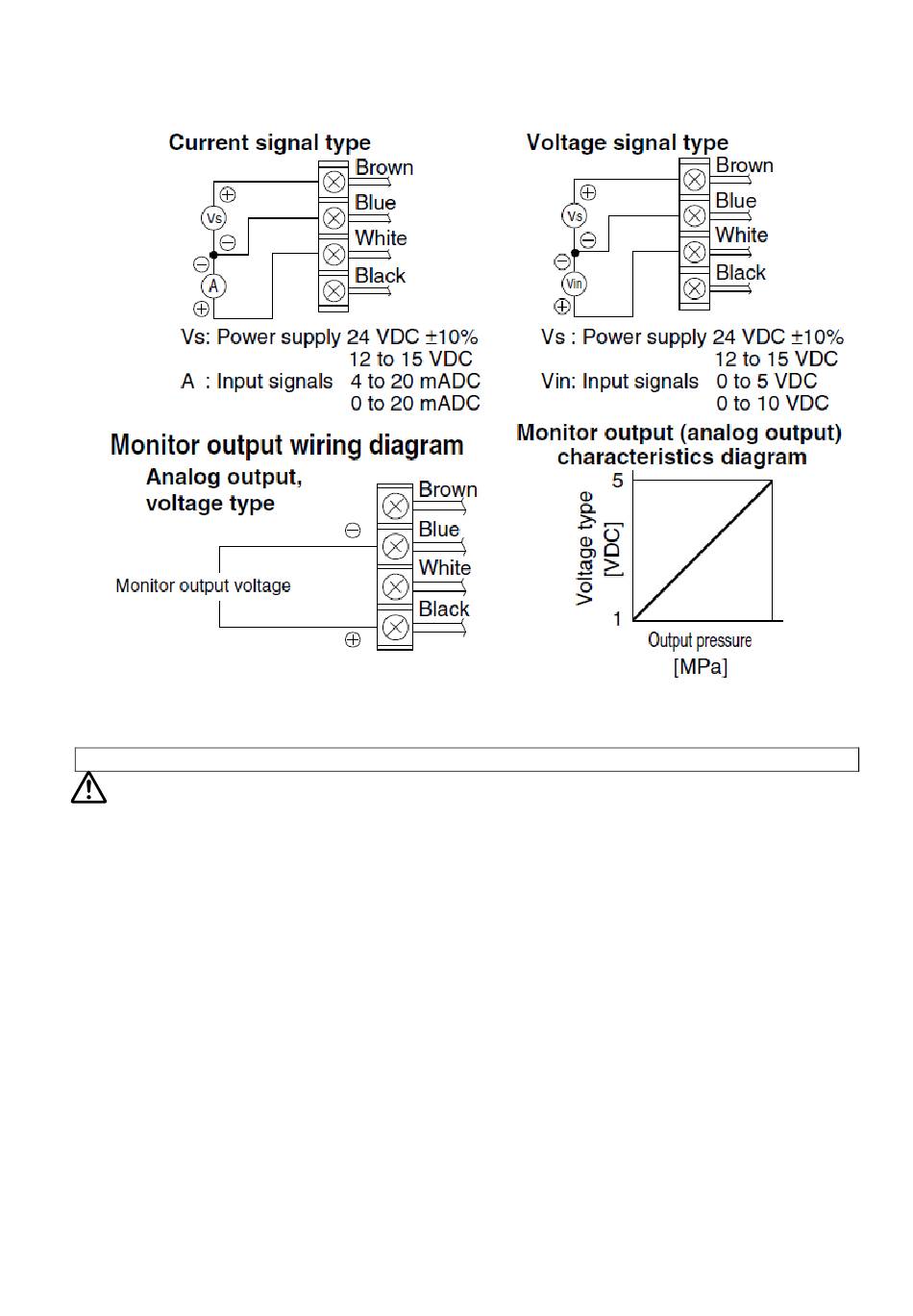

Wiring diagrams

Caution
1. Do not use a lubricator on the supply side of this product, as doing so may result in a
malfunction. When lubrication of terminal equipment is necessary, connect a lubricator
on the output side of this equipment.
2. If electric power is shut off while pressure is being applied, pressure will be retained on
the output side.
However, this output pressure is held only temporarily and is not guaranteed. If exhausting of
this pressure is desired, shut off the power after reducing the set pressure, and discharge the air
using a residual pressure exhaust valve, etc.
3. If supply pressure to this product is interrupted while the power is still on, the internal
solenoid valve will continue to operate and a humming noise may be generated.
Since the life of the product may be shortened, shut off the power supply also when supply
pressure is shut off.
4. This product has been adjusted according to each specification at the time of shipment
from our factory. As it may cause a malfunction, do not disassemble or remove each
part.
5. The optional cable connector is a 4-wire type. When the monitor output (analog output) is
not being used, keep it from touching the other wires as doing so may result in a
malfunction.
6. Please note that the right angle cable does not rotate and is limited to only one entry
direction.
Handling
5
0.1
0
0.5
0.9
-0.1
