Product Description

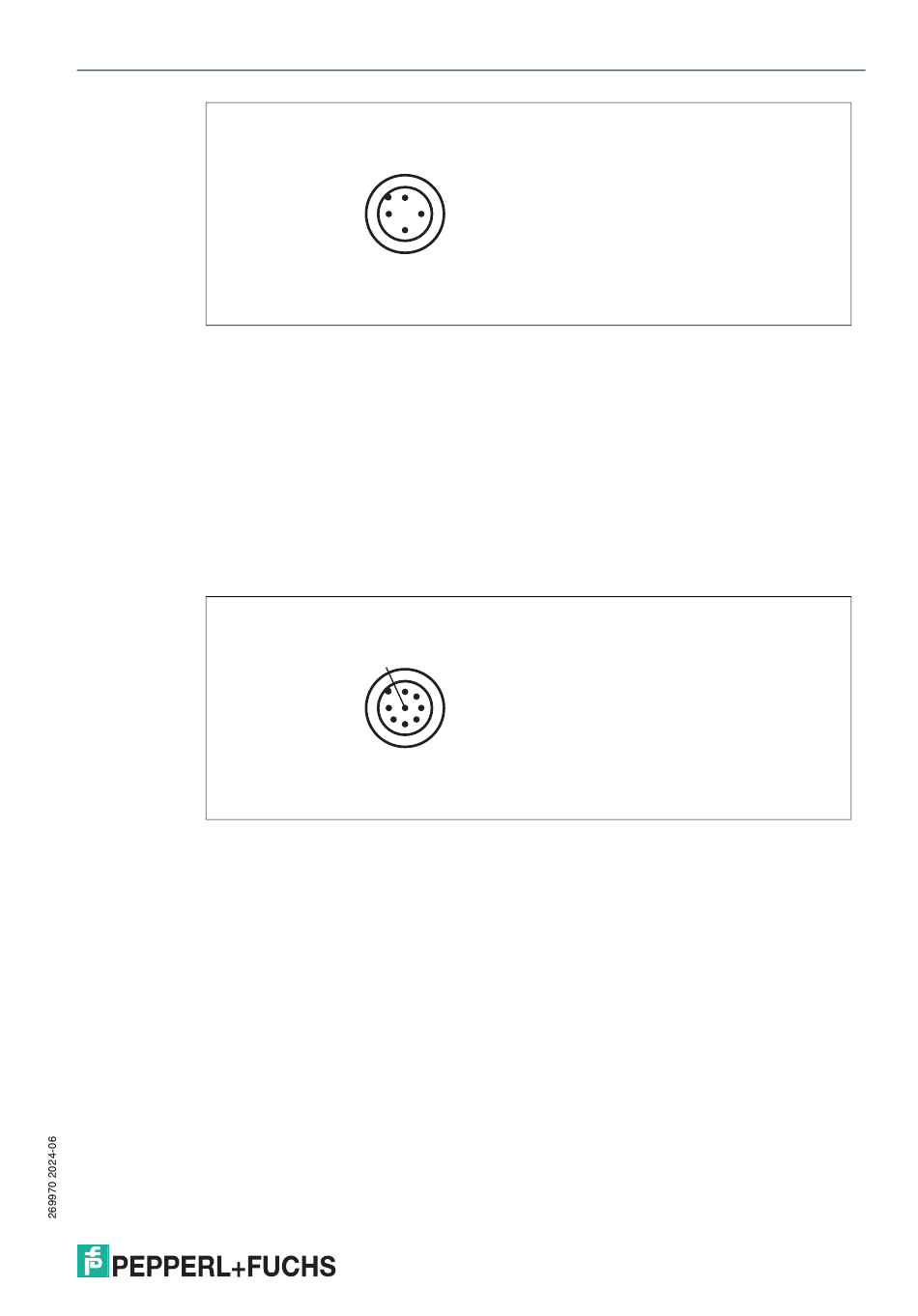

Figure 3.2
1 24 V power supply
2 I/Q2
3 Ground (GND)
4 I/Q1
MultiPort
An 8-pin M12 connector is located on the rear of the housing. Inputs/outputs 3
and 4 are located here
1 DNC (Do not connect)
2 DNC (Do not connect)
3 DNC (Do not connect)
4 I/Q3
5 I/Q4
6 I/Q2
7 I/Q1
8 DNC (Do not connect)
All pins with "DNC (Do not connect)" must not be connected!
Interface:
There is a 4-pin M12 socket on the back of the housing to connect the Ethernet
interface. The following diagram shows the pinning:
1
4
2
3
Power supply connection layout
1
8
7
2 6
3 5
4
