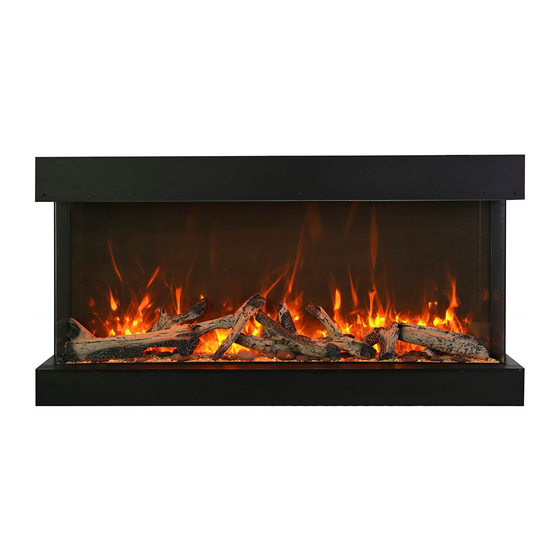

INSTALLATION AND OPERATION INSTRUCTIONS FOR
40-TRU-VIEW-XL
50-TRU-VIEW-XL
60-TRU-VIEW-XL
72-TRU-VIEW-XL
SAFETY INFORMATION
WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60-TRU-VIEW-XL and is the answer not in the manual?

Questions and answers

Summary of Contents for Amantii 60-TRU-VIEW-XL

  • Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR 40-TRU-VIEW-XL 50-TRU-VIEW-XL 60-TRU-VIEW-XL 72-TRU-VIEW-XL SAFETY INFORMATION WARNING If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2: Table Of Contents

    Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS............................3 UNPACKING AND TESTING APPLIANCE .......................4...
  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use.
  • Page 4: Unpacking And Testing Appliance

    UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components operate correctly.
  • Page 5: 40-Tru-View-Xl

    40-TRU-VIEW-XL This appliance has been tested in accordance with the UL Standard 2021 Description Built-in Appliance for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need NO HEATER assistance during installation, please MOTOR HEATER...
  • Page 6: 50-Tru-View-Xl

    50-TRU-VIEW-XL This appliance has been tested in accordance with the UL Standard 2021 Description Built-in Appliance for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need NO HEATER assistance during installation, please MOTOR HEATER...
  • Page 7: 60-Tru-View-Xl

    60-TRU-VIEW-XL This appliance has been tested in accordance with the UL Standard 2021 Model Number Build-in Appliance for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need...
  • Page 8: 72 -Tru-View-Xl

    72 –TRU-VIEW-XL This appliance has been tested in accordance with the UL Standard 2021 Description Built-in Appliance for fixed and location dedicated Voltage 120V AC 60Hz electric room appliances in the United Watts 1500W Max States and Canada. If you need NO HEATER assistance during installation, please MOTOR HEATER...
  • Page 9: Safety Drill Screw Area

    SAFETY DRILL SCREW AREA There is a safety drill screw area as show below. Please make sure that the fix screws are in this area. T h e m a n u a l c o n tro l p a d p o s itio n Sa fe ty d rill s cre w a re a (Da rk a re a ) HARD- WIRE INSTALLATION...
  • Page 10: For Bathroom Use

    2. Attach the wiring to the junction block. Please make sure the live wire goes into the “L”, the neutral wire into “N” and the ground wire into “G”. 3. Put the plate back and screw back. FOR BATHROOM USE If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit.
  • Page 11: Outdoor Installations

    OUTDOOR INSTALLATIONS The TRU-VIEW-XL series electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance.
  • Page 12: Installation

    40-TRU-VIEW-XL 43 3/4 14 3/4" 27 1/8 50-TRU-VIEW-XL 53 3/4 14 3/4" 27 1/8 fending panel 60-TRU-VIEW-XL 63 3/4 14 3/4" 27 1/8 72-TRU-VIEW-XL 75 3/4 14 3/4" 27 1/8 fending bar 3. Fix back the fending bar after the panel is removed.
  • Page 13 framing plate framing plate 5. Make an opening for the fireplace according to requested measurement. 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
  • Page 14 8. Decorate the plywood or drywall with glazed fending bar and panel. tile, wallpaper, etc. 3. After the fending panel is removed, screw back the bar. Installation for Front and Right Side Viewing 1. To install the fireplace where the left side is close to a wall, and you want to view the fire from front and right side, take off the fending panel on the right.
  • Page 15 5. Make an opening for the fireplace according 7. After checking that the fireplace operates to requested measurement. properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
  • Page 16 Installation for Front and Left Side Viewing 1. Install the fireplace where the right side is close to a wall, and you want to view the fire from front and left side, take off the fending panel on the left. 4.
  • Page 17 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs. To fix the bottom of the fireplace and the wall studs with the 8.
  • Page 18: Media Options

    Media Options The fireplace comes with no media. Consumers may purchase optional decorative media if they choose. See dealer for more details. Media Operation 1. Unscrew 2 screws and take off two brackets which 3. Take off the front glass panel and put it in safe place. are fending the front glass panel.
  • Page 19: Operation

    OPERATION The fireplace can be operated either by the switches located on the left bottom of the fireplace unit or by supplied remote control. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION 1. The main power ON/OFF switch in position O, the fireplace is OFF. 2.
  • Page 20: Remote Control Operation

    REMOTE CONTROL OPERATION For remote to function make sure the heater is plugged in and main power switch located on the bottom left hand side is at position I. When operating the remote make sure you point the remote to the centre of the fireplace and make sure each time you press the button.
  • Page 21: Installing Wall Thermostat

    INSTALLING WALL THERMOSTAT WALL THERMOSTAT WIRING DIAGRAMS Wire the wall thermostat prior to installing the fireplace. WALL THERMOSTAT WIRING(24 VAC) Install Wall Thermostat per instructions provided with kit and per the following information: 1. Turn off circuit breaker. 2. Remove cover plate located on the left side of appliance. Pull the wire out and cut the inside thermostat.
  • Page 22: Replacement Parts

    REPLACEMENT PARTS This list contains replacement parts PART NUMBER DESCRIPTION QTY. 40-TRU-VIEW-XL 50-TRU-VIEW-XL 60-TRU-VIEW-XL 72-TRU-VIEW-XL 10701281 10701216 10701217 10701218 FRONT CLEAR GLASS 10201505 ADJUSTABLE SCREW 3123010 FRONT CLEAR GLASS BRACKET 10702200 10702168 10702169 10702170 BOTTOM TRAY GLASS 10701284B 10701219B 10701220B...
  • Page 23: Exploded View

    EXPLODED VIEW...
  • Page 24: Wiring Diagram

    Wiring Diagram...
  • Page 25: Trouble Shooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary. Ember Ember LED’s are burnt out Inspect the ember bed LED’s and glowing or dimming replace them if necessary. Appliance turns off and Appliance has overheated and Turn off the main switch, allow...
  • Page 26: Service History

    SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:...
  • Page 27: Warranty

    Last updated on January 15, 2021...
