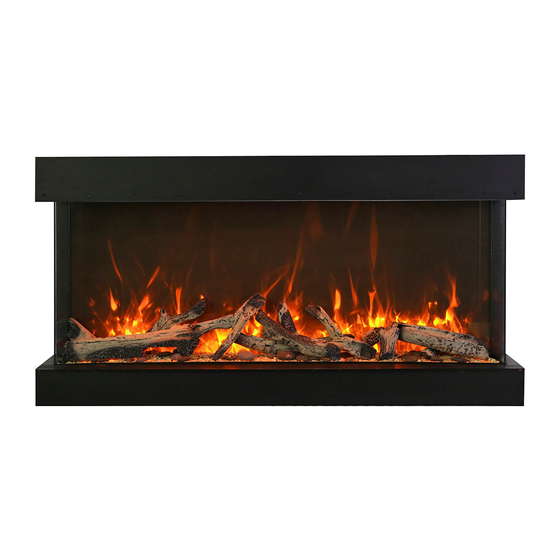

INSTALLATION AND OPERATION INSTRUCTIONS FOR
40-TRU-VIEW-XL
50-TRU-VIEW-XL
60-TRU-VIEW-XL
72-TRU-VIEW-XL
SAFETY INFORMATION
WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-TRU-VIEW-XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amantii 40-TRU-VIEW-XL

Summary of Contents for Amantii 40-TRU-VIEW-XL

  • Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR 40-TRU-VIEW-XL 50-TRU-VIEW-XL 60-TRU-VIEW-XL 72-TRU-VIEW-XL SAFETY INFORMATION WARNING If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 2: Table Of Contents

    Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS............................3 PLUG INSTALLATION INSTRUCTIONS........................4...

  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use.

  • Page 4: Plug Installation Instructions

    PLUG INSTALLATION Your power cord will come separate from the unit, please locate it when unpacking your fireplace. The plug contained inside the box is predetermined at the factory and according to orders placed by authorized dealers. Available are UK, European, Swiss & Australian plugs. Should you require any of these options please contact your dealer for purchase.

  • Page 5: Unpacking And Testing Appliance

    UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 240 Volt grounded outlet. LOCATING THE FIREPLACE Plan where to locate and frame the fireplace.

  • Page 6: 40-Tru-View-Xl

    40-TRU-VIEW-XL Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 43 1/4” or 109.7 cm Appliance Height 26 5/8” or 67.7 cm Appliance Depth 14 1/4” or 36.3 cm Gross Weight 121.3lbs or 55kg...

  • Page 7: 50-Tru-View-Xl

    50-TRU-VIEW-XL Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 53 1/4” or 135.2 cm Appliance Height 26 5/8” or 67.7 cm Appliance Depth 14 1/4” or 36.3 cm Gross Weight 123.5lbs or 56kg Plug Location Left side Cord Length...

  • Page 8: 60-Tru-View-Xl

    60-TRU-VIEW-XL Model Number Build-in Appliance Voltage 220-240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 63 1/4” or 160.6 cm Appliance Height 26 5/8” or 67.7 cm Appliance Depth 14 1/4” or 36.3 cm Gross Weight 141lbs or 64kg Plug Location Left side Cord Length...

  • Page 9: 72 -Tru-View-Xl

    72 –TRU-VIEW-XL Description Built-in Appliance Voltage 220-240V AC 50-60Hz Watts 1900W Max NO HEATER MOTOR HEATER Appliance Width 75 1/4” or 191 cm Appliance Height 26 5/8” or 67.7 cm Appliance Depth 14 1/4” or 36.3 cm Gross Weight 165lbs or 75kg Plug Location Left side Cord Length...

  • Page 10: Safety Drill Screw Area

    SAFETY DRILL SCREW AREA There is a safety drill screw area as show below. Please make sure that the fix screws are in this area. T h e m a n u a l c o n tro l p a d p o s itio n Sa fe ty d rill s cre w a re a (Da rk a re a )

  • Page 11: Installation

    The rough wall opening size of the fireplace: W(＂) D(＂) H(＂) 2. Take off the fending bars and panels if you 40-TRU-VIEW-XL 43 3 4 14 3/4" 27 1 8 want to view the fire from three angles. 50-TRU-VIEW-XL 53 3/4 14 3/4"...
  • Page 12 framing plate framing plate 5. Make an opening for the fireplace according to requested measurement. 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
  • Page 13 8. Decorate the plywood or drywall with glazed fending bar and panel. tile, wallpaper, etc. 3. After the fending panel is removed, screw back the bar. Installation for Front and Right Side Viewing 1. To install the fireplace where the left side is close to a wall, and you want to view the fire from front and right side, take off the fending panel on the right.
  • Page 14 5. Make an opening for the fireplace according 7. After checking that the fireplace operates to requested measurement. properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs.
  • Page 15 Installation for Front and Left Side Viewing 1. Install the fireplace where the right side is close to a wall, and you want to view the fire from front and left side, take off the fending panel on the left. 4.
  • Page 16 7. After checking that the fireplace operates properly, cover the glass panels with protective plastic bag and install plywood or drywall. 6. Insert the fireplace into the wall opening. Drive the mounting screws into the frame plates on the unit and the wall studs. To fix the bottom of the fireplace and the wall studs with the framing plates that you’ve removed from left 8.

  • Page 17: Media Options

    Media Options The fireplace comes with no media. Consumers may purchase optional decorative media if they choose. See dealer for more details. Media Operation 1. Unscrew 2 screws and take off two brackets which 3. Take off the front glass panel and put it in safe place. are fending the front glass panel.

  • Page 18: Operation

    OPERATION The fireplace can be operated either by the switches located on the left bottom of the fireplace unit or by supplied remote control. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION 1、 Press key . Press for the first time，heater work at 1900W, indicator lights red.

  • Page 19: Remote Control Operation

    REMOTE CONTROL OPERATION Press the remote control’s key“ ”, its screen turns on, the flame ignites and the flame icon appears on 、 the LCD screen of the remote control. Week, time (24h system), and temperature setting are displayed normally. Press it again, the screen of the remote control will turn off; Key“...
  • Page 20 7、 Press the heating key“ .” Press for the first time ,the heating elements work at 1900W, the LCD screen displays , the indicator on the machine lights red. Press a second time , the heating elements work at 950W, the LCD screen displays , the indicator on the machine lights blue.
  • Page 21 for Tuesday. Press for the 7th time and it displays . Press for the 8th time and it exits and recovers to the current week day; 11、Press“ .” Press for the first time and the timing function turns on, the LCD screen displays the machine’s indicator lights green.

  • Page 22: Care And Maintenance

    CARE AND MAINTENANCE 1. Switch off and unplug from the power supply before cleaning. 2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface of the products. CAUTION: Allow the product to completely cool before handling or cleaning it. 3.

  • Page 23: Replacement Parts

    REPLACEMENT PARTS This list contains replacement parts PART NUMBER DESCRIPTION QTY. 40-TRU-VIEW-XL 50-TRU-VIEW-XL 60-TRU-VIEW-XL 72-TRU-VIEW-XL 10701281 10701216 10701217 10701218 FRONT CLEAR GLASS 10201505 ADJUSTABLE SCREW 3123010 FRONT CLEAR GLASS BRACKET 10702200 10702168 10702169 10702170 BOTTOM TRAY GLASS 10701284 10701219 10701220...

  • Page 24: Exploded View

    EXPLODED VIEW...

  • Page 25: Wiring Diagram

    Wiring Diagram...

  • Page 26: Trouble Shooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary. Ember Ember LED’s are burnt out Inspect the ember bed LED’s and glowing or dimming replace them if necessary. Appliance turns off and Appliance has overheated and Turn off the main switch, allow...

  • Page 27: Service History

    SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:...
