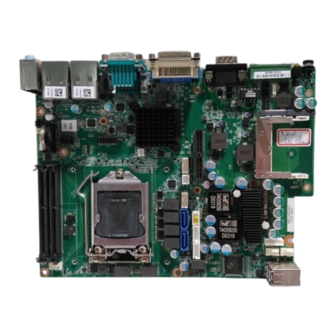

Advantech AIIS-3400 User Manual

Machine vision system (computer)
Hide thumbs Also See for AIIS-3400:

Advertisement

Quick Links

Download this manual
User Manual
AIIS-3400/3410
Machine Vision System
(Computer)

Advertisement

loading
Need help?

Need help?

Do you have a question about the AIIS-3400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech AIIS-3400

Summary of Contents for Advantech AIIS-3400

  • Page 1 User Manual AIIS-3400/3410 Machine Vision System (Computer)
  • Page 2 The documentation and the software included with this product are copyright © 2024 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.

  • Page 3: Product Warranty (2 Years)

    Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.

  • Page 4: Technical Support And Assistance

    Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...

  • Page 5: Safety Instructions

    The camera is only to be connected to PoE networks without routing to outside plants. The power cord must be connected to a socket or outlet with a ground connec- tion. AIIS-3400/3410 User Manual...

  • Page 6: Consignes De Sécurité

    ZONE D‘ACCÈS RESTREINT: l’équipement ne doit être installé que dans un Zone d'accès restreint. AVERTISSEMENT: Cet ensemble d‘instructions est donné conformément à la CEI 704-1. Advantech décline toute responsabilité quant à l’exactitude des déc- larations contenues ici. La caméra ne doit être connectée qu'aux réseaux PoE sans acheminement vers des installations extérieures.

  • Page 7: Packing List

    Driver CD x 1 PN: 2061340000  Wallmount brackets x 2 PN: 1960014487T006  Hole protectors x 4 PN: 1990022908S000  CPU cooler x 1 PN: 1960060620N001  2-pin Phoenix DC power connector x 1 PN: 1652002205  AIIS-3400/3410 User Manual...

  • Page 8: Ordering Information

    8-CH DIO DB-25 Wiring Terminal, DIN-rail Mount AIIS-DIO32-00A1E Isolated DIO module, 32-CH, 9-pin USB interface AIIS-E730-AE Isolated DIO module, 32-CH, 9-pin MIO with PCIe x1 interface PCL-10137-1E 32-CH DIO Cable 1M for Wiring Terminal ADAM-3937-BE 32-CH DIO DB-37 Wiring Terminal, DIN-rail Mount AIIS-3400/3410 User Manual viii...
  • Page 9 Isolated DIO module, 32-CH, 9-pin USB interface AIIS-E730-AE Isolated DIO module, 32-CH, MIO with PCIex1 interface PCL-10137-1E 32-CH DIO Cable 1M for the Wiring Terminal ADAM-3937-BE 32-CH DIO DB-37 Wiring Terminal, DIN-rail Mount 9691341010E PCI riser card AIIS-3400/3410 User Manual...
  • Page 10 AIIS-3400/3410 User Manual...

  • Page 11: Table Of Contents

    Figure 2.9 32-bit DIO Connector..........12 Table 2.6: 32-Bit DIO Connector Pin Assignment ..... 12 2.1.5 VGA+DVI Connector..............13 Figure 2.10Figure 2.7 VGA Connector ........13 Table 2.7: VGA Connector Pin Assignment ......13 Figure 2.11DVI Connector ............13 AIIS-3400/3410 User Manual...
  • Page 12 HDD Installation ..................19 Figure 2.18HDD Installation ............19 Internal USB Lock Installation..............20 CFast Installation ..................20 Figure 2.19CFast Installation (AIIS-3400 only)......20 AIIS-DIO32 Installation ................21 Figure 2.20AIIS-DIO32 Installation..........21 Wallmount Installation................22 Figure 2.21Wallmount Installation ..........22 2.10...
  • Page 13 Overview ....................70 Isolated Digital I/O Connections.............. 70 C.2.1 Dry/Wet Contact Support for Digital Input........70 Figure C.1 Isolated Digital Input Connections ......70 C.2.2 Isolated Digital Output Connections..........70 Figure C.2 Isolated Digital Output Connections ......71 xiii AIIS-3400/3410 User Manual...

  • Page 14: Exploded Diagram And Parts List

    Appendix D Exploded Diagram & Parts List ..73 Exploded Diagram .................. 74 Figure D.1 Exploded Diagram............ 74 Table D.1: Parts List ..............75 AIIS-3400/3410 User Manual...

  • Page 15: Chapter 1 General Introduction

    Chapter General Introduction This chapter gives background information on the AIIS-3400/3410 series.

  • Page 16: Introduction

    Introduction The AIIS-3400/3410 Box IPC is an ideal, application-ready, system platform solution. All electronics are protected in a compact, sealed case for easy embedding in the customer’s own housing, or as a standalone unit where space is limited. The AIIS-3400P/3410P’s self-contained PoE controller features performance com- puting with Power over Ethernet, a multiple-I/O interface, and extended product lon- gevity, all in a compact form factor.

  • Page 17: Product Specifications

    Power Output: 15 W max. per channel/ 30W max. for 1 & 2 channel (control by BIOS, and enable or disable PoE power setting at 3.2.3.2) USB, AIIS-3400U/3410U  – Controller: CH1~CH4: uPD720202 x4 – Compliant: USB 3.0 – Power output: 4.5W per channel AIIS-3400/3410 User Manual...

  • Page 18: Ethernet

    Power adapter: AC to DC, 24Vdc/9.58A, 230W, FSP230-AAAN3 (optional)  1.3.10 Cooling System Fan:  – 1 (8 cm / 57 CFM) for AIIS-3410 – 1 (6 cm / 24.97 CFM) for AIIS-3400 1.3.11 Miscellaneous LED Indicators: Power, HDD, temperature  Control: Power on/off switch  1.3.12 Environment Operating Temperature: 0 ~ 45 º...

  • Page 19: Physical Characteristics

    1.4.2 BIOS CMOS (JCMOS1) The AIIS-3400/3410 CPU card contains a jumper that can erase BIOS CMOS data and reset the system BIOS information. Normally this jumper should be set with pins 1-2 closed. If you want to reset those data, set JCMOS1 to 2-3 closed for just a few seconds, and then move the jumper back to 1-2 closed.

  • Page 20: Hardware Monitor Alarm (Jobs1) And Watchdog Timer Output (Jwdt1)

    Hardware Monitor Alarm (JOBS1) and Watchdog Timer Output (JWDT1) AIIS-3400/3410 contains a watchdog timer that will reset the CPU in the event the CPU stops processing. This feature means AIIS-3400/3410 will recover from a soft- ware failure or an EMI problem. The JWDT1 jumper settings control the outcome of what the computer will do in the event the watchdog timer is tripped.

  • Page 21: Chapter 2 Hardware Installation

    Chapter Hardware Installation This chapter introduces external IO and the installation of AIIS-3400/3410 Hardware.

  • Page 22: Front Panel Controls, Indicators, And Connectors

    Front Panel Controls, Indicators, and Connectors Figure 2.1 AIIS-3400U Front View Figure 2.2 AIIS-3400P Front View Figure 2.3 AIIS-3410U Front View AIIS-3400/3410 User Manual...

  • Page 23: Power On/Off Button

    2.1.1 Power On/Off Button AIIS-3400/3410 has a Power On/Off button with LED indicators on the front side that show On status (green LED) and Off/Suspend status (orange LED). The Power but- ton supports dual functions: Soft Power -On/Off (Instant off or Delay 4 Seconds then off), and Suspend.

  • Page 24: Power Input Connector

    LED color Function Connected Powered Device 2.1.3 Power Input Connector AIIS-3400/3410 comes with a four-pin header that carries 19Vdc - 24Vdc external power input. Figure 2.7 Power Input Connector Table 2.4: Power Input Connector Pin Assignments Signal 19Vdc - 24 Vdc 19Vdc - 24 Vdc 2.1.4...
  • Page 25 AIIS-3400/3410 User Manual...
  • Page 26 DSUB-37 female connector (detail schematic can be referred at Appendix C) Figure 2.9 32-bit DIO Connector Table 2.6: 32-Bit DIO Connector Pin Assignment Signal Signal DI10 DI12 DI14 COM1 DO10 DO12 DO14 COM2 DI11 DI13 DI15 DO11 DO13 DO15 AIIS-3400/3410 User Manual...

  • Page 27: Vga+Dvi Connector

    2.1.5 VGA+DVI Connector AIIS-3400/3410 offers an integrated D-sub 24-pin female DVI-D Digital Visual Inter- face connector and a D-sub 15-pin VGA; DVI-D carries digital video signal. This sup- ports high-speed, high-resolution digital displays and traditional analog displays. Figure 2.10 Figure 2.7 VGA Connector Table 2.7: VGA Connector Pin Assignment...

  • Page 28: Com Connectors

    2.1.6 COM Connectors AIIS-3400/3410 provides 2 D-sub 9-pin connectors that are serial communication interface ports. COM-1 & COM-2 support RS-232/422/485 mode by BIOS selection. Figure 2.12 COM Connectors Table 2.9: Front 2-COM Pin Assignment RS-232 RS-422 RS-485 TXD - DATA -...

  • Page 29: Usb 3.0 Connectors

    SSTX- SSTX+ 2.1.9 Audio Connector AIIS-3400/3410 offers stereo audio ports via three phone jack connectors for Line_Out, Line_In, and Mic_In. The audio chip is controlled by ALC892, and it’s com- pliant with the Azalea standard. Figure 2.15 Audio Connector Table 2.12: Audio Pin Assignments...

  • Page 30: Remote Power Switch Connector

    2.1.10 Remote Power Switch Connector AIIS-3400/3410 includes a 2-pin Phoenix DC power connector that provides for remote power control. CPU Installation Remove top cover. Pull the handle beside the processor socket outward and lift it. Remove the socket protection cap.

  • Page 31: Cpu Cooler Installation

    Retirez le capot supérieur. Fixez le refroidisseur de processeur sur la carte mère. Fixez quatre vis sur le refroidisseur dans la plaque arrière en acier sur le PCB. Réinstallez le capot supérieur. Figure 2.16 CPU & CPU Cooler Installation AIIS-3400/3410 User Manual...

  • Page 32: Memory Installation

    Remove top cover. Insert the memory module into the SODIMM socket. Re-attach the top cover. Installation de mémoire Retirez le capot supérieur. Insérez le module de mémoire dans le socket SODIMM. Réinstallez le capot supérieur. Figure 2.17 Memory Installation AIIS-3400/3410 User Manual...

  • Page 33: Hdd Installation

    Assurez-vous que le PCB Le côté du disque dur fera face au capot inférieur. Connectez le câble de signal SATA et le câble d'alimentation au disque dur. Réinstallez le support du disque dur et le capot supérieur. Figure 2.18 HDD Installation AIIS-3400/3410 User Manual...

  • Page 34: Internal Usb Lock Installation

    Assemble the CFast clamp to assure firm installation. Reinstall top cover. Installation de Cfast Retirez le capot supérieur. Insérez la carte CFast dans le support. Assemblez la bride CFast pour assurer une installation ferme. Réinstallez le capot supérieur. Figure 2.19 CFast Installation (AIIS-3400 only) AIIS-3400/3410 User Manual...

  • Page 35: Aiis-Dio32 Installation

    Installation d'AIIS-DIO32 Retirez le capot supérieur. Installez l'AIIS-DIO32 avec 2 entretoises et 2 vis. Connectez le connecteur USB12 de la carte principale au connecteur USB1 AIIS-DIO32 via Câble DIO. Réinstallez le capot supérieur. Figure 2.20 AIIS-DIO32 Installation AIIS-3400/3410 User Manual...

  • Page 36: Wallmount Installation

    Cette paire de supports muraux est conçue pour être utilisée sur le côté du châssis ou le bas. L'installation inversée n'est pas autorisée. Les trous de vis qui ne sont pas utilisés pour les supports muraux doivent être conservés rempli de vis. AIIS-3400/3410 User Manual...

  • Page 37: Din-Rail Installation (Aiis-3400 Only)

    2.10 DIN-Rail Installation (AIIS-3400 Only) Figure 2.22 DIN-Rail Installation Note! This DIN-rail bracket is designed for use on the rear side or the bot- tom. Reverse installation is not permitted. Screw holes that are not used for DIN-rail brackets should be kept filled with screws.

  • Page 38: Pcie/Pci Card Installation (Aiis-3410 Only)

    2.11 PCIe/PCI Card Installation (AIIS-3410 Only) Figure 2.23 PCIe/PCI Card Installation AIIS-3400/3410 User Manual...

  • Page 39: Chapter 3 Ami Bios Setup

    Chapter AMI BIOS Setup...

  • Page 40: Introduction

    The Setup Utility uses a number of number of menus for making changed and turning specific features on or off. This chapter describes the basic navigation of the AIIS-3400/3410 setup screens. AMI's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.

  • Page 41: Entering Bios Setup

    System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. AIIS-3400/3410 User Manual...

  • Page 42: Advanced Bios Features Setup

    3.2.2 Advanced BIOS Features Setup Select the Advanced tab from the AIIS-3400/3410 setup screen to enter the Advanced BIOS setup screen. You can select any of the items in the left frame of the screen, such as CPU configuration, to go to the sub menu for that item.
  • Page 43 Platform Misc Configuration  – Native PCIE Enable PCI Express Native Support Enable/Disable. This is only available in Vista. – Native ASPM On enable, Vista will control the ASPM support for the device. If disabled, the BIOS will. AIIS-3400/3410 User Manual...
  • Page 44 Use this item to select the number of processor cores you want to activate when you are using a dual or quad core processor. Hyper-threading Intel's proprietary simultaneous multi-threading implementation is used to improve parallelization of computations performed on x86 microprocessors. Enable or Disable CPA advanced encryption standard instruction AIIS-3400/3410 User Manual...
  • Page 45 Select the performance state that the BIOS will set before OS handoff. Intel(R) Speedstep(tm)  Allows more than two frequency ranges to be supported. Turbo Mode  Turbo mode. C states  Intel C states setting for power saving AIIS-3400/3410 User Manual...
  • Page 46 3.2.2.4 PCH-FW Configuration Figure 3.7 PCH-FW Configuration PCH-FW Version  PCH-FW page shows Intel ME FW information. AIIS-3400/3410 User Manual...
  • Page 47 3.2.2.5 Trusted Computing Figure 3.8 Trusted Computing Security Device Support  Enable or Disable TPM Support. You can purchase Advantech LPC TPM mod- ule to enable TPM function. P/N: PCA-TPM-00A1E. 3.2.2.6 ACPI Settings Figure 3.9 ACPI Settings AIIS-3400/3410 User Manual...
  • Page 48 Enable or Disable S3 Video Repost. PowerOn by Modem  Enable or Disable PowerOn by Modem. 3.2.2.7 SMART Settings Figure 3.10 SMART Settings SMART Self Test  Enable or Disable SMART Self Test on all HDDs during POST. AIIS-3400/3410 User Manual...
  • Page 49 3.2.2.8 Super IO Configuration Figure 3.11 Super IO Configuration Figure 3.12 Super IO Configuration Serial Port 1 Configuration  – Serial Port Enable or Disable Serial Port 1. AIIS-3400/3410 User Manual...
  • Page 50 ACPI OS to pro- tect the system from overheat damage. CPUFAN1 Smartfan Setting  Enable or Disable CPUFAN Mode to SMART FAN setting. SYSFAN1 Smartfan Setting  AIIS-3400/3410 User Manual...
  • Page 51 Enable or Disable SYSFAN Mode to SMART FAN setting. 3.2.2.10 S5 RTC Wake Settings Figure 3.14 S5 RTC Wake Settings Wake System at Fixed Time  Enable or Disable system wake at set time event. The system will wake at the hr:min:sec as specified. AIIS-3400/3410 User Manual...
  • Page 52 3.2.2.11 Serial Port Console Redirection Figure 3.15 Serial Port Console Redirection Figure 3.16 Serial Port Console Redirection COM1  – Console Redirection Settings Console Redirection Enable or Disable. AIIS-3400/3410 User Manual...
  • Page 53 Select a COM port to display redirection of legacy OS and Legacy OPROM Messages. Serial Port for Out-of-Band Management/ Windows Emergency Manage-  ment services (EMS) – Console Redirection Enable or Disable Console Redirection. 3.2.2.12 Intel TXT Information Figure 3.17 Intel TXT Information AIIS-3400/3410 User Manual...
  • Page 54 Value to be programed into PCI Latency Timer Register. VGA Palette Snoop  Enable or Disable VGA palette registers snooping SR-IOV Support  If system has SR-IOV capable PCIe Devices, this option Enable or Disables Single Root IO Virtualization Support. AIIS-3400/3410 User Manual...
  • Page 55  Controls the execution of UEFI and Legacy Storage OpROM Video  Controls the execution of UEFI and Legacy Video OpROM Other PCI devices  Determine OpROM execution policy for devices other than network, storage, or video. AIIS-3400/3410 User Manual...
  • Page 56 Hub descriptor. Mass Storage Devices  Mass storage device emulation type. "Auto" enumerates device according to their media format. Optical drives are emulated as 'CDROM', drives with no media will be emulated according to a drive type. AIIS-3400/3410 User Manual...

  • Page 57: Chipset

    3.2.3 Chipset Figure 3.21 Chipset 3.2.3.1 System Agent (SA) Configuration Figure 3.22 System Agent (SA) Configuration AIIS-3400/3410 User Manual...
  • Page 58 Figure 3.23 System Agent (SA) Configuration VT-d  Enable or Disable VT-d function. Above 4GB MMIO BIOS assignment  Enable/Disable above 4GB MemoryMappedIO BIOS assignment. This is dis- abled automatically when Aperture Size is set to 2048MB. AIIS-3400/3410 User Manual...
  • Page 59 - Primary IGFX Boot Display: Select the video Device which will be activated during POST. This has no effect if external graphics present. - Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display. AIIS-3400/3410 User Manual...
  • Page 60 Select Auto/ PCIE1/ PCIE2/ PCIE3/ PCIE4/ PCIE5/ PCIE6/ PCIE7 of D28: F0/ F1/ F2/ F3/ F4/ F5/ F6/ F7, PCIE8/PCIE9/PCIE10/PCIE11/PCIE12/PCIE13/ PCIE14/PCIE15 of D29: F0/ F1/ F2/ F3/ F4/ F5/ F6/ F7/, PCIE16/ PCIE17/ PCIE18/ PCIE19 of D27: F0/ F1/ F2/ F3, Graphics device should be primary PCIE. AIIS-3400/3410 User Manual...
  • Page 61 Enable or disable PCIE to wake the system from S5. High Precision Timer  Enable or Disable the High Precision Event Timer. Restore AC Power loss  Specify what state to go to when power is re-applied after a power failure (G3 state). AIIS-3400/3410 User Manual...

  • Page 62: Security

    3.2.4 Security Select Security Setup from the AIIS-3400/3410 Setup main BIOS setup menu. All Security Setup options, such as password protection is described in this section. To access the sub menu for the following items, select the item and press <Enter>.

  • Page 63: Boot

    Enable or Disable Quiet Boot option. Boot Option #1/2  Sets the boot order. Boot Option Priorities  Controls the placement of newly detected UEFI boot options. Driver Option Priorities  Set the order of the legacy devices on this group. AIIS-3400/3410 User Manual...

  • Page 64: Save & Exit

    Select Exit Discarding Changes from the Exit menu and press <Enter>. The following message appears: Quit without saving? [Yes] [No] Select Yes to discard changes and exit. Discard Changes  Select Discard Changes from the Exit menu and press <Enter>. AIIS-3400/3410 User Manual...

  • Page 65: Software Installation

    Chapter Software Installation This chapter introduces driver installation.

  • Page 66: Chipset Software Installation Utility

    4.1.1 Before you begin To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the AIIS-3400/3410 are located on the software installation CD. Note! The files on the software installation CD are compressed. Do not attempt to install the drivers by copying the files manually.

  • Page 67: Windows 10 / Windows 8.1 / Windows 7

    Caution! The Intel® Graphics Device does not support Windows 10 (32-bit) and Windows 8.1 (32-bit) Le périphérique graphique Intel® ne prend pas en charge Windows 10 (32-bits) et Windows 8.1 (32-bit) AIIS-3400/3410 User Manual...

  • Page 68: Windows 10 / Windows 8.1 / Windows 7 Driver Setup

    Insert the driver CD into your system’s CD-ROM drive. Navigate to the "04_Intel ME" folder and find folder "Intel ME" to install the driver. Note! If the Intel® Management Engine (Intel® ME) driver has not been suc- cessfully installed in Win7, please refer to the Win7 ME install process below. AIIS-3400/3410 User Manual...

  • Page 69: Install Intel® Me For Windows 7

    4.4.1 Introduction The AIIS-3400/3410 has dual Gigabit Ethernet LANs via dedicated PCI Express x1 lanes (INTEL i210AT) that offer bandwidth of up to 500 MB/sec, eliminating the bot- tleneck of network data flow and incorporating Gigabit Ethernet at 1000 Mbps.

  • Page 70: Windows 10 / Windows 8.1 / Windows 7

    Install USB 3.0 4.5.1 Introduction AIIS-3400/3410 provides 8 x USB 3.0 and the data transfer rate of USB 3.0 (5Gb/s) is 10 times to USB 2.0 (480 Mbps). Insert the driver CD into your system’s CD-ROM drive. Navigate to "08_AIIS- 3400USB_USB3.0"...

  • Page 71: Appendix A Programming The Watchdog Timer

    Appendix Programming the Watchdog Timer...

  • Page 72: Watchdog Timer Overview

    The AIIS-3400/3410’s watchdog timer can be used to monitor system software oper- ation and take corrective action if the software fails to function within the programmed period. This section describes the operation of the watchdog timer and how to pro- gram it.
  • Page 73 Unlock NCT6776D Select register of watchdog timer Enable the function of the watchdog timer Use the function of the watchdog timer Lock NCT6776D AIIS-3400/3410 User Manual...

  • Page 74: Example Programs

    Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------- Dec dx; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- Dec dx ; Set second as counting unit AIIS-3400/3410 User Manual...
  • Page 75 Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- Dec dx ; Set minute as counting unit Mov al,0f5h Out dx, al Inc dx In al,dx Or al, 08h Out dx,al ;----------------------------------------------------------- AIIS-3400/3410 User Manual...
  • Page 76 Dec dx ; Enable watchdog timer to be reset by mouse Mov al,0f7h Out dx,al Inc dx In al,dx Or al,80h Out dx,al ;----------------------------------------------------------- Dec dx ; lock NCT6776D Mov al,0aah Out dx,al Enable watchdog timer to be reset by keyboard ;----------------------------------------------------------- Mov dx,2eh ; unlock NCT6776D AIIS-3400/3410 User Manual...
  • Page 77 Out dx,al Out dx,al ;----------------------------------------------------------- Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------- Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx AIIS-3400/3410 User Manual...
  • Page 78 Dec dx ; Generate a time-out signal Mov al,0f7h Out dx,al ;Write 1 to bit 5 of F7 register Inc dx In al,dx Or al,20h Out dx,al ;----------------------------------------------------------- Dec dx ; lock NCT6776D Mov al,0aah Out dx,al AIIS-3400/3410 User Manual...

  • Page 79: Appendix B Programming 8-Bit Dio (Gpio)

    Appendix Programming 8-Bit DIO (GPIO)

  • Page 80: Supported Gpio Register

    OUT DX,AL OUT DX,AL --------------------------------------------------------------- Configure logical device, configuration register CRE0,CRE1,CRE2 --------------------------------------------------------------- MOV DX,2EH MOV AL,09H OUT DX,AC DEC DX MOV AL,30H OUT DX,AL INC DX IN AL,DX OR AL,10000000B DEC DX MOV AL,07H OUT DX,AL INC DX AIIS-3400/3410 User Manual...

  • Page 81: Isolated Digital Input/Output

    40~60%)) Optical Isolator response time Rise time:2us ,Fall time:3us V_IH(max)=3.35 Input Voltage V_IH(min)= 3.55 V_IL(max)= 2 Isolated Digital Output Number of Output Channels Outputs Voltage Max:50V Optical Isolator response time tPLH:130ns,tPHL:20ns Sink Current 500 mA max. /channel AIIS-3400/3410 User Manual...
  • Page 82 AIIS-3400/3410 User Manual...

  • Page 83: Appendix C 32-Bit Dio Signal Connections

    Appendix 32-Bit DIO Signal Connections...

  • Page 84: Overview

    (IDO 0 ~ IDO 15) while it is being used as an output channel, the current will flow from the external voltage source to the card. Please take care that the current through each GND pin not exceed 100 mA. AIIS-3400/3410 User Manual...
  • Page 85 Figure C.2 Isolated Digital Output Connections AIIS-3400/3410 User Manual...
  • Page 86 AIIS-3400/3410 User Manual...
  • Page 87 Appendix Exploded Diagram & Parts List...

  • Page 88: Exploded Diagram

    Exploded Diagram Figure D.1 Exploded Diagram AIIS-3400/3410 User Manual...
  • Page 89 Table D.1: Parts List Fan filter CFast card clamps bracket Top cover Chassis assy HDD tray USB clamps bracket DIO board Side bracket PoE board Side cover R SYS fan Side cover L Main board Front IO panel Fan bracket AIIS-3400/3410 User Manual...
