User Manual
AIMB-278
12th Gen Intel® Core™
Processor (Alder Lake), Mini-ITX
with Q670E, PCIex16 Gen5, and
2.5GbE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIMB-278 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech AIMB-278

Summary of Contents for Advantech AIMB-278

  • Page 1 User Manual AIMB-278 12th Gen Intel® Core™ Processor (Alder Lake), Mini-ITX with Q670E, PCIex16 Gen5, and 2.5GbE...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech’s customer services. To ensure you get the full benefit of our services, please follow the instructions below carefully.
  • Page 4 ADVANTEC Category Speed Capacity Vendor Module_PN Chip_PN ECC Result H P/N SQR- SQR- IVA45 DDR5 4800 32GB Advantech SD5N32G4K8 SD5N32G4K PASS D8BNJ MNAB 8MNAB SQR- SQR- 2AA45 DDR5 4800 16GB Advantech SD5N16G4K8 SD5N16G4K PASS D8BNJ MNAB 8MNAB AIMB-278 User Manual...
  • Page 5 USB3. M.2 M M.2 E PCIe Chipset GbE 2.5GbE COM TPM AMP AIII AIMB-278Q-00A1 Q670E (1)/ 1 AIMB-278H-00A1 H610E (1) (1)/ 1 2/(2) *() Supports by BOM options Note! USB power current delivery under S5 Max. 1.8A. AIMB-278 User Manual...
  • Page 6 It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the AIMB-278, check it for signs of ship- ping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales representative immediately.

  • Page 7: Table Of Contents

    Board Layout: Jumper and Connector Locations........5 Figure 1.1 Jumper and Connector Locations (Top Side)..... 5 Figure 1.2 Jumper and Connector Locations (Bottom Side)..6 AIMB-278 Board Diagram ................. 6 Figure 1.3 AIMB-278 Board Diagram .......... 6 Safety Precautions ..................7 Jumper Settings ..................7 1.8.1 How to Set Jumpers..............
  • Page 8 Save & Exit Configuration............82 Chapter Software Introduction & Services ... 85 Introduction ..................... 86 Value-Added Software Services ............. 86 4.2.1 Software API................86 Chapter Chipset Software Installation Utility Before you Begin ..................90 Introduction ..................... 90 AIMB-278 User Manual viii...
  • Page 9 Chapter Setup..........91 Introduction ..................... 92 Windows 10 VGA Driver Installation ............92 Chapter Configuration......93 Introduction ..................... 94 Features ....................94 Installation ....................94 Windows® 10 Driver Setup (Intel i219LM&Intel i226) ......94 AIMB-278 User Manual...
  • Page 10 AIMB-278 User Manual...

  • Page 11: Chapter 1 General Information

    Chapter General Information...

  • Page 12: Introduction

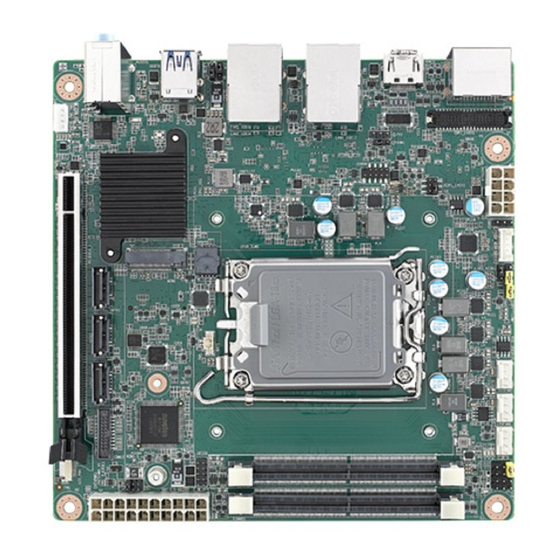

    Introduction The Advantech AIMB-278 is designed with the Intel® Q670E/H610E PCH for indus- trial applications that require both performance computing and enhanced power man- agement capabilities. The motherboard leverages Intel® Core™ i9/i7/i5/i3/Pentium/ Celeron desktop processors, up to 20 MB SmartCache, and 2 x DDR5 4800MHz SO- DIMM (up to 64) GB.

  • Page 13: Graphics

    Power supply voltage: +3.3V, +5V, +12V, -12V, +5VSB  Power consumption:  Intel® Core™ i9-12900E 5GHz, 2pcs 32GB DDR5 4800MHz SDRAM Boost: 117.882W; Typical: 102W Board size: 170 x 170 mm (6.69 x 6.69 in).  Board weight: 0.365 kg.  AIMB-278 User Manual...

  • Page 14: Jumpers And Connectors

    Jumpers and Connectors Connectors on the AIMB-278 motherboard link it to devices such as hard disk drives and a keyboard. In addition, the board has a number of jumpers used to configure the system for your application. The tables below list the function of each of the board jumpers and connectors. Later sections in this chapter give instructions on setting jumpers.

  • Page 15: Board Layout: Jumper And Connector Locations

    Table 1.1: Connector and Header List AT / ATX Mode selection PSON1 M.2 E-KEY Connector M2E1 PCI Express x16 Bifurcation Board Layout: Jumper and Connector Locations Figure 1.1 Jumper and Connector Locations (Top Side) AIMB-278 User Manual...

  • Page 16: Aimb-278 Board Diagram

    M.2 E-key 2230 Chipset Line out/Line in/ M.2 M-key 2280 (Q670E/H610E) ALC888S Mic in 3 ports SATA3 SPI BIOS H/W Monitor Super IO NCT6126D 6-bit GPIO TPM 2.0 COM1 RS-232 COM2 RS-232/422/485 Figure 1.3 AIMB-278 Board Diagram AIMB-278 User Manual...

  • Page 17: Safety Precautions

    1, 2, and 3. In this case you connect either pins 1 and 2, or 2 and 3. A pair of needle-nose pliers may be useful when set- ting jumpers. AIMB-278 User Manual...

  • Page 18: Cmos Clear (Jcmos1)

    1.8.2 CMOS Clear (JCMOS1) The AIMB-278 motherboard contains jumpers that can erase CMOS data and reset the system BIOS information. Normally these jumpers should be set with pins 1-2 closed. If you want to reset the CMOS data, set CMOS1 to 2-3 closed for just a few seconds, and then move the jumper back to 1-2 closed.

  • Page 19: Vds1)

    Table 1.6: JFP1: PWRBTN# / RESET# / HDD LED / Internal Buzzer / External Speaker Header Function Jumper Setting Internal Buzzer (Default) 1.8.7 PCI Express x16 Bifurcation (SW1) Table 1.7: PCI Express x16 Bifurcation (SW1) Function Jumper Setting 1 X16 (Default) 2 X8 AIMB-278 User Manual...

  • Page 20: Com1_Ri# Pin Ri# / 5V / 12V Selection (Jsetcom1_V1)

    Jumper position for 12V System Memory AIMB-278 has two sockets for a 260-pin DDR4 SO-DIMM. These sockets use a 1.2 V unbuffered double data rate synchronous DRAM (DDR SDRAM). DRAM is available in 4GB, 8GB, 16GB, and 32GB capacities. The sockets can take any combination with SODIMMs of any size, providing a total memory sizes of 4GB, 8GB, 16GB, and up to max 64GB.

  • Page 21: Cache Memory

    1.11 Cache Memory The AIMB-278 supports a CPU with one of the following built-in full-speed last level caches: 30MB for Intel® Core™ i9-12900E/i9-12900TE 25MB for Intel® Core™ i7-12700E/i7-12700TE 18MB for Intel® Core™ i5-12500E/i7-12500TE 12MB for Intel® Core™ i3-12100E/i7-12100TE 2.5MB Pentium G7400E/G7400TE The built-in second-level cache in the processor yields much higher performance than conventional external cache memories.
