Advantech AIWireless AIW-171HQ User Manual

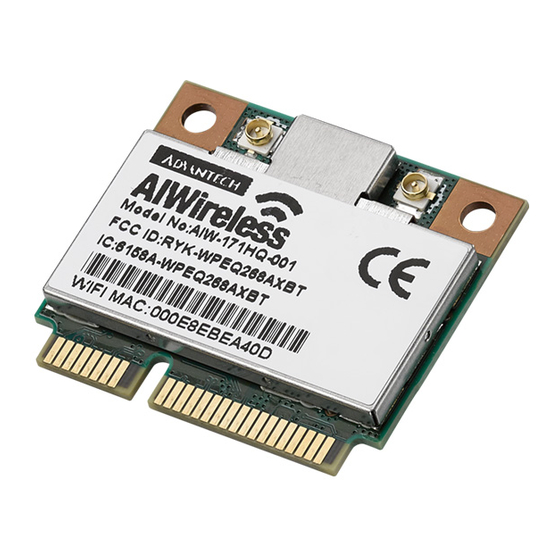

802.11ax/ac/b/g/n half-size minipcie solution based on qca6856 chipset
Hide thumbs

Advertisement

Quick Links

Download this manual
AIW-171HQ
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AIWireless AIW-171HQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech AIWireless AIW-171HQ

Summary of Contents for Advantech AIWireless AIW-171HQ

  • Page 1 AIW-171HQ User manual...
  • Page 2 Applicability Type AIW PN Description WPEQ- 802.11ax/ac/b/g/n Half-size MiniPCIe solution based AIW-171HQ 268AXI(BT) on QCA6856 chipset...

  • Page 3: Revision History

    Revision History Version Owner Date Description First issue V1.0 Joejohn.Chen 2023-06-28 Change Model name from EWM-W176H01E to AIW-171HQ for higher brand awareness. Antenna information correction V1.1 Joejohn.Chen 2023-09-01 Add golden finger picture...

  • Page 4: Product Introduction

    1 Product Introduction Item Description IEEE 802.11ax/ac/a/b/g/n (2T2R) Standard Bluetooth V5.2, 5.0, 4.2, V4.1, V4.0LE, V3.0, V2.1+EDR Chipset solution Qualcomm Atheros WCN6856...
  • Page 5 802.11b: 11Mbps 802.11a/g: 54Mbps 802.11n: MCS0~15 Data Rate 802.11ac: MCS0~9 802.11ax: HE0~11 Bluetooth: 1 Mbps, 2Mbps and Up to 3Mbps IEEE 802.11ax/ac/a/b/g/n ISM Band, 2.412GHz~2.484GHz, 5.150GHz~5.850GHz Operating Frequency 5.925~7.125GHz *Subject to local regulations WLAN: PCIe Interface Bluetooth: USB Form Factor Half-size MiniPCIe 2 x IPEX MHF1 connectors, Antenna...
  • Page 6 Item Description 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256- QAM) 802.11ax: OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256- QAM, 1024-QAM) Modulation Header: GFSK Payload 2M: π/4-DQPSK Payload 3M: 8-DPSK TX mode: 632 mA (Average) Power Consumption RX mode: 378 mA (Average) Operating Voltage DC 3.3V...
  • Page 7 Note: The storing condition is only for product functionality, no included for parts appearance.
  • Page 8 2. Output Power & Sensitivity Wi-Fi (Tolerance: 2.4G +/- 2dbm, 5G +/- 2.5dbm, 6G +/-2.5dbm) 802.11b Data Rate Tx ± 2dBm Rx Sensitivity ≦-90dBm 11Mbps 18dBm 802.11g Data Rate Tx ± 2dBm Rx Sensitivity ≦-74dBm 54Mbps 17.5dBm 802.11n / 2.4GHz Data Rate Tx ±...
  • Page 9 802.11n / 5GHz Data Rate Tx ± 2dBm (1TX) Tx ± 2dBm (2TX) Rx Sensitivity HT20 ≦-76dBm MCS7 16dBm 19dBm ≦-73dBm HT40 MCS7 15.5dBm 18.5dBm...
  • Page 10 802.11ac Data Rate Tx ± 2dBm (1TX) Tx ± 2dBm (2TX) Rx Sensitivity VHT80 ≦-62dBm MCS9 15dBm 18dBm ≦-58dBm VHT160 MCS9 14dBm 17dBm 802.11ax / 2.4 GHz Data Rate Tx ± 2dBm (1TX) Tx ± 2dBm (2TX) Rx Sensitivity HE40 ≦-57dBm MCS11 13dBm...
  • Page 11 2.2 Bluetooth Bluetooth Data Rate Tx ± 2dBm (Class 1 Device) Rx Sensitivity 0≦ Output Power ≦14dBm <0.1% BR, BER at -70dBm 3Mbps...

  • Page 12: Hardware Specification

    3. Hardware Specification 3.1 Hardware Dimension Dimension (L x W x H): 29.85mm(±0.15mm) x26.65mm(±0.15mm) x 4.20mm(±0.3mm) AIW-171HQ 2D Drawings...

  • Page 13: Block Diagrams

    3.2 Block Diagrams AIW-171HQ BLOCK DIAGRAM...
  • Page 14 3.3 MHF1 connector SPEC...

  • Page 15: Pin Definition

    3.4 Pin Definition The following section illustrate signal pin-outs for the module connector. l Top Side Pin Name Type Description Open Drain active Low signal. When the add-in card supports wakeup, this signal is used by the add-in card to request that the system return from a WAKE# sleep/suspended state to service a function initiated wake event.
  • Page 16 PETn0 PCIe Transmit data-Negative PETp0 PCIe Transmit data-Positive No Connection No Connection PERn0 No Connection PERp0 Ground connections PCI Express receive data-Positive PCI Express receive data- Negative +3.3Vaux VDD system power supply input +3.3Vaux VDD system power supply input Ground Connections ANTCTRL2 No Connection ANTCTRL3...

  • Page 17: Bottom Side

    l Bottom Side Pin Name Type Description 3.3V VDD system power supply input Ground Connections 1.5V/COEX3 No Connection UIM_PWR No Connection UIM_DATA No Connection UIM_CLK No Connection UIM_RESET No Connection UIM_SPU No Connection Ground connections Active low signals. These signals are used by the system to disable radio operation on add- in cards that implement radio frequency applications.
  • Page 18 +1.5V/ ANTCTRL0 No Connection SMB_CLK No Connection SMB_DATA No Connection Ground Connections USB_D- USB serial differential data Negative USB_D+ USB serial differential data Positive Ground Connections LED_WWAN# No Connection LED_WLAN# No function LED_WPAN# No Connection +1.5V/ ANTCTRL1 No Connection Ground connections +3.3Vaux VDD system power supply input Table 3-1 Top side pin assignment...
