Advantech AIMC-3422 Startup Manual

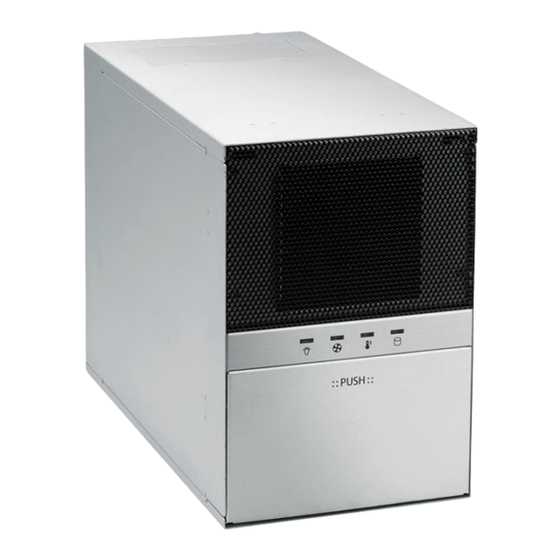

AIMC-3422
Micro Computer, Intel
4 Expansions 2PCI/2PCIe, 300W PSU
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. AIMC-3422 Bare System x 1
2. Driver CD x 1
3. USB 2.0 Cable x 1
4. USB 3.0 Cable x 1
5. Four-port USB Cable x 1
6. LPT Cable x 1
7. Mounting Bracket x 2
8. Rubber Foot x 4
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of AIMC-3422, please refer
to information on the enclosed CD-ROM (in PDF
format).
Note 2: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the AIMC-3422 Series Rev. A1.
Part No. 2001342200
Printed in China
Core™ i7/i5/i3 CPU, H110,
®
P/N: AIMC-3422-00A1E
P/N: 2061302900
P/N: 1700014398
P/N: 1700020277-01
P/N: 1700014398
P/N: 1700002223
P/N: 1960014487T00C
P/N: 1990012452S000
1st Edition,
December 2016
Specifications
Processor System
• LGA1150 Intel Core™ i5/i3/Pentium
®
4th Gen. (Haswell) Refresh CPU (Support from BIOS V2.XX)
i7-
CPU i7-6700 i5-6500
6700TE
Core 4 4 4
Base Frequency
3.4 2.43 3.2
(GHz)
L3 Cache (MB) 8 6 6
Chipset H110
4th Gen. (Haswell) CPU (Support from BIOS V1.XX)
CPU i7-4770S i7-4770TE i5-4570S i5-4570TE i3-4330 i3-4330TE G3420
Base
Frequency 3.1 2.3 2.9 2.7
(GHz)
L3 Cache
8 8 6 4
(MB)
* Part Number iX-XXXXTX & GXXXXXX can use 1U CPU
cooler for 2 expansion slots. The remaining CPUs have to
use 1.5U Cooler for 1 expansion slot.
BIOS
• AMI 128 Mbit SPI Flash
Chipset
• Intel H110
®
Memory
• Supports dual channel DDR4 1866/2133 16 GB per
DIMM, Max capacity is 32 GB
Graphic
• Chipset: Intel HD Graphics
®
Expansion Slot
• One PCIe x16
• One PCIe x1
• Two PCIs
Ethernet
• Chipset supports:
- LAN 1: Intel I219V
®
- LAN 2: Intel I211AT
®
• Connection: 2 on-board RJ-45 connector with LED
indicators
SATA
• Max Data Transfer Rate: 600 MB/s (SATA 3.0)
• HDD Bay: 1 internal 3.5"
AIMC-3422 Startup Manual 1
/Celeron
® ®
i5-
i3-6100 i3-6100TE G4400 G4400TE
6500TE
4 2 2 2 2
2.3 3.7 2.7 3.3 2.9
6 4 4 3 3
G3320TE G1820
3.5 2.4 3.2 2.3 2.7
3 3 3 3 2
G3900 G3900TE
2 2
2.8 2.6
2 2
G1820TE
2.2
2
