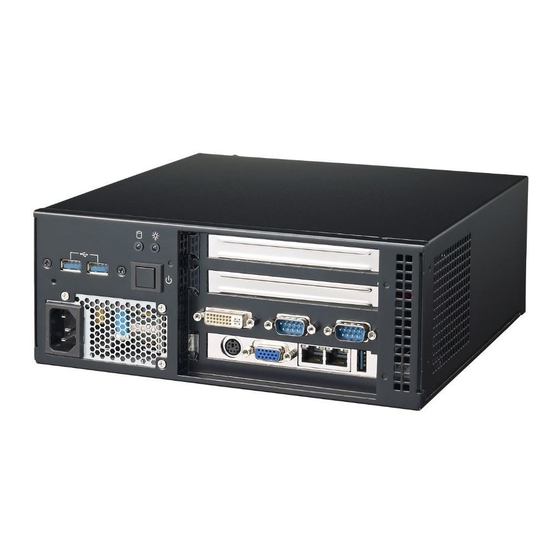

Advantech AIMC-3202 Startup Manual

AIMC-3202
Micro Computer, Intel
H110, 2 Expansions, 250W 80Plus PSU
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following items have been shipped:
1. AIMC-3202 Bare System x 1
2. Driver CD x 1
3. USB 2.0 Cable x 1
4. USB 3.0 Cable x 1
5. Four-port USB Cable x 1
6. LPT Cable x 1
7. Mounting Brackets x 2
8. Rubber Foot x 4
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of AIMC-3202, please refer
to information on the enclosed CD-ROM (in PDF
format).
Note 2: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the AIMC-3202 Series Rev. A1.
Part No. 2001320200
Printed in China
Core™ i7/i5/i3 CPU,
®
P/N: AIMC-3202-00A1E
(AIMC-3202-01A1E)
P/N: 2061302900
P/N: 1700014398
P/N: 1700020277-01
P/N: 1700014398
P/N: 1700002223
P/N: 1960014487T00C
P/N: 1990012452S000
1st Edition
October 2016
Specifications
Processor System
i7- i7- i5-
CPU
6700 6700TE 6500
Processor
Core 4 4 4
System
Base 3.4 2.4 3.2
(0 ~ 40° C for
Frequency GHz GHz GHz
65W CPU)
(0 ~ 45° C for L3 Cache 8M 8M 6M
35W CPU)
Chipset H110
BIOS AMI 128Mb SPI Flash
* Part Number iX-XXXXTX & GXXXXXX can use 1U CPU
Cooler for 2 Expansion slots. Other CPUs have to use 1.5U
Cooler for 1 Expansion slot.
BIOS
• AMI 128 Mbit SPI Flash
Chipset
• Intel H110
Memory
• Supports Dual Channel DDR4 1866/2133 16 GB per
DIMM, Max capacity is 32 GB
Graphic
• Chipset: Intel HD Graphics
®
Expansion Slot
• AIMC-3202-00:
- One PCIe x16 (Upper-layer slot)
- One PCIe x4 (Lower-layer slot)
• AIMC-3202-01:
- One PCI (Upper-layer slot)
- One PCIe x16 (Lower-layer slot)
Ethernet
• Chipset support:
- LAN 1: Intel I219V
®
- LAN 2: Intel I211AT
®
• Connection: 2 x on-board RJ-45 connector with LED
indicators
SATA
• Max Data Transfer Rate: 600 MB/s (SATA 3.0)
• HDD Bay: 2 internal 2.5"
I/O Interface
• Display: VGA + DVI-D
• USB: 3 USB3.0
• PS/2: 1
Watchdog Timer
• Programmable 1~255 sec/min
AIMC-3202 Startup Manual 1
i5- i3- i3- G G G
6500TE 6100 6100TE 4400 4400TE 3900
4 2 2 2 2 2
2.3 3.7 2.7 3.3 2.9 2.8
GHz GHz GHz GHz GHz GHz
6M 4M 4M 3M 3M 2M
G
3900TE
2
2.6 GHz
2M
