User Manual

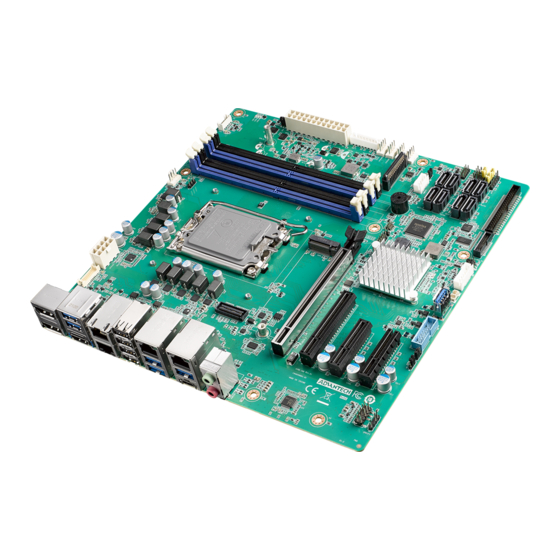

AIMB-588
®
12th Gen Core™ i9/i7/i5/i3
Intel
LGA1700, MicroATX with 2 DP++/
HDMI/ eDP, 1 GbE LAN, 3 2.5GbE
LANs, 8 USB 3.2, 1 USB 3.2
Type-C, 6 COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIMB-588 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech AIMB-588

Summary of Contents for Advantech AIMB-588

  • Page 1 User Manual AIMB-588 ® 12th Gen Core™ i9/i7/i5/i3 Intel LGA1700, MicroATX with 2 DP++/ HDMI/ eDP, 1 GbE LAN, 3 2.5GbE LANs, 8 USB 3.2, 1 USB 3.2 Type-C, 6 COM...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Product Warranty (2 years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
  • Page 4 It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the AIMB-588, check it for signs of ship- ping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales representative immediately.

  • Page 5: Table Of Contents

    Table 1.1: Jumper Setting List ............4 Table 1.2: Connector/Header List ............. 5 Figure 1.2 I/O Connectors ..............6 AIMB-588 Board Diagram ................. 6 Figure 1.3 AIMB-588 Block Diagram ..........6 Safety Precautions ..................... 7 Jumper Settings ....................8 1.8.1 How to Set Jumpers ................
  • Page 6 Power Switch/HDD LED/SMBUS/Speaker Pin Header (JFP1) ....96 ATX/AT Mode Selection (PSON1) ..............96 COM1/2, COM3/4/5/6 (COM12/COM3456) ..........97 Case Open Pin Header (JCASEOP_SW1) ..........98 USB Ports (HDMI_USB56/LAN34/USB10111213/LAN1_USB12/ LAN2_USB3/USB4/USB89/USB7) ..............99 A.10 HDMI+VGA (HDMI_VGA1) ................105 A.11 Display Port (DP1) ..................106 AIMB-588 User Manual...
  • Page 7 COM3,4,5,6 Box Header (COM3456) ............126 A.26 Vertical USB2 Connector(USB15) .............. 127 A.27 USB2 Pin Header 2port (USB13_14) ............128 A.28 CPU FAN Connector (CPUFAN1) .............. 128 A.29 Power LED and Keyboard Lock Pin Header (JFP2) ........ 129 AIMB-588 User Manual...
  • Page 8 AIMB-588 User Manual viii...

  • Page 9: Chapter 1 General Information

    Chapter General Information...

  • Page 10: Introduction

    PCIe x4 slot (Gen 3), 1 x PCIe x4 slot (Gen 4), 4 USB 2.0 ports and 5 USB 3.2 Gen 2, 1 USB 3.2 Gen 2 Type C (AIMB-588R SKU). Standard Micro ATX form factor with industrial features: The AIMB-588 is a ...

  • Page 11: Input/Output

    Gen2 ports with transmission rates up to 10 Gbps and 1 USB Typc-C Gen 2x2 port with transmission rates up to 20 Gbps.  GPIO: AIMB-588 supports 8-bit GPIO from super I/O for general purpose con- trol application. 1.3.4 Graphics ®...
  • Page 12 Board size: 244 mm x 244 mm (9.6" x 9.6")  Board weight: 0.5 kg  AIMB-588 User Manual...

  • Page 14: Jumpers And Connectors

    Jumpers and Connectors Connectors on the AIMB-588 motherboard link it to devices such as hard disk drives and a keyboard. In addition, the board has a number of jumpers used to configure your system for your application. The tables below list the function of each of the board jumpers and connectors. Later sections in this chapter give instructions on setting jumpers.
  • Page 15 EATXPWR1 DIMMA1,DIMMA2, DDR5 U-DIMM Socket DIMMB1, DIMMB2 CPU FAN Power Connector CPUFAN1 MPS’s I2C/SMBUS Programming for +VCCIN Controller JSMB1 NGFF M.2 M-Key connector for 2280 module M2M1 ATX 12V Power Supply Connector ATX12V1 eDP Panel Connector EDP1 AIMB-588 User Manual...

  • Page 16: Aimb-588 Board Diagram

    Figure 1.2 I/O Connectors AIMB-588 Board Diagram Figure 1.3 AIMB-588 Block Diagram AIMB-588 User Manual...

  • Page 17: Safety Precautions

    Caution! There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer’s instructions. AIMB-588 User Manual...

  • Page 18: Jumper Settings

    Function Jumper Setting Disable Flash Descriptor Security (Default) Enable Security measures defined in the Flash Descriptor. 1.8.3 CMOS Clear Jumper (JCMOS1) Signal Pin Definition VBAT RTC RESET# Function Jumper Setting Keep COMS Data (Default) Clear CMOS Date AIMB-588 User Manual...

  • Page 19: Com3_Ri# Pin Ri#/5V/12V Selection

    Setting Set COM3_RI# as RI# (Default) Set COM3_RI# as 5V Set COM3_RI# as 12V 1.8.5 Watchdog Timer Output and OBS Beep (JOBS1+JWDT1) Function Setting Watchdog Timer Output(2-3) (Default) OBS BEEP(4-5) (Default) Watchdog Timer Disable(1-2) OBS BEEP(4-5) (Default) AIMB-588 User Manual...

  • Page 20: Power Switch/Hdd Led/Smbus/Speaker Pin Header (Jfp1)

    Signal Pin Definition FP_HDD_LED FP_PANSWIN# FRP_SPK2 FP_HDD_LED# FRP_SPK3 SMBDAT_JFP FP_SYS_RESET# FRP_SPK4 SMBCLK_JFP Function Jumper Setting Internal Buzzer (Default) 1.8.7 ATX/AT Mode Selection (PSON1) Signal Pin Definition ATX selection +VCC AT selection Function Jumper Setting ATX Mode (Default) AT Mode AIMB-588 User Manual...

  • Page 21: Edp Panel Voltage Selection (Jedp1)

    Jumper position for +12V System Memory AIMB-588 has four 288-pin DDR5 memory sockets for 3600/4000/4400 MHz memory mod ules with maximum capacity of 128 GB (Maximum 32 GB for each DIMM). AIMB- 588Q/H supports only non-ECC DDR5 memory modules. AIMB-588R can support ECC/non-ECC DDR5 memory module.

  • Page 22: Memory Installation Procedures

     DIMM installation Recommended UDIMM module installation guide, please use the same UDIMM memory module on the same channel and load the module from the 2nd slot if single module used as below picture. AIMB-588 User Manual...

  • Page 23: Connecting Peripherals

    Chapter Connecting Peripherals...

  • Page 24: Introduction

    USB Ports (HDMI_USB56/LAN34/USB10111213/ LAN1_USB12/LAN2_USB3/USB4/USB89/USB7) The AIMB-588 provides up to 13 USB ports. (5 x USB3.2 Gen2, 4 x USB2.0 type A and 1 x USB3.2 Gen2 type C on the rear side, 2 x USB 3.2 Gen1 via internal header and 1 x USB 3.2 Gen1 via vertical connector) The USB interface complies with USB...

  • Page 25: Dp1 Connector (Dp1)

    DP1 Connector (DP1) AIMB-588 DP connector has max resolution support to 4096 x 2304 @ 30 Hz. Serial Ports (COM12/COM3456) AIMB-588 supports six serial ports. COM1, COM3-6 supports RS-232. COM2 sup- ports RS-232/422/485. These ports can connect to serial devices, such as a mouse or a printer, or to a com- munications network.

  • Page 26: Keyboard And Mouse Connector (Kbms1)

    Keyboard and Mouse Connector (KBMS1) 6-pin mini-DIN connectors (KBMS1, 2.54pitch) is for supporting the PS/2 keyboard and PS/2 mouse. CPU Fan Connector (CPUFAN1) AIMB-588 User Manual...

  • Page 27: System Fan Connector (Sysfan1/Sysfan2/Sysfan3/Sysfan4)

    System FAN Connector (SYSFAN1/SYSFAN2/ SYSFAN3/SYSFAN4) If a fan is used, this connector supports cooling fans of 1500 mA (18 W) or less. Power LED and Keyboard Lock Pin Header (JFP2) AIMB-588 User Manual...

  • Page 28: Audio Jack (Audio1)

    But can BOM option to support 3 ports.(line-in/line out/ Mic in) 2.10 Serial ATA Interface Connector (SATA1~8) AIMB-588 features a high performance Serial ATA III interface (up to 600 MB/s) which eases hard drive cabling with thin, space-saving cables. AIMB-588R-00A1 and AIMB- 588Q-00A1 support SATA1~SATA8, AIMB-588H-00A1 supports SATA5~SATA8.

  • Page 29: Front Panel Audio Connector (Fpaud1)

    PCI Express x 8 Slot (PCIEX8_1) PCI Express x 4 Slot (PCIEX4_1/PCIEX4_2) AIMB-588 provides a PCIe x16 slot, which offers BOM option to 1 PCIex8 for users to install add-on cards when their applications require higher graphic performance than the CPU embedded graphics controller can provide.

  • Page 30: Ngff M.2 M-Key Connector For 2280 Module (M2M1)

    2.13 NGFF M.2 M-Key Connector for 2280 Module (M2M1) M.2 M-key: 2280, PCIex4 interface, and can support NVMe devices. 2.14 General Purpose I/O Connector (GPIO1) AIMB-588 User Manual...

  • Page 31: Case Open Connector (Jcase1)

    Note! 1. Please connect the ATX12V1 connector with the PSU ATX 12V 8- pin connector. 2. For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12V Specification 2.0 (or later version) and provides a minimum power of 180 W. AIMB-588 User Manual...

  • Page 32: Ddr5 U-Dimm Socket (Dimma1/Dimma2/Dimmb1/Dimmb2)

    2.17 DDR5 U-DIMM Socket (DIMMA1/DIMMA2/ DIMMB1/DIMMB2) 2.18 SPDIF Interface Connector (SPDIF1) AIMB-588 User Manual...

  • Page 33: Espi Debug Card Connector (Espi1)

    2.19 ESPI Debug Card Connector (ESPI1) 2.20 Battery Wafer Box (BAT1) AIMB-588 User Manual...

  • Page 34: Spi Bios Flash Socket (Spi1)

    2.21 SPI BIOS Flash Socket (SPI1) 2.22 BIOS Flash Connector (SPI_CN1) AIMB-588 User Manual...

  • Page 35: Edp Backlight Inverter Power Connector (Inv1)

    2.23 eDP Backlight Inverter Power Connector (INV1) 2.24 SMBUS Connector (SMBUS1) AIMB-588 User Manual...

  • Page 36: Mps's I2C/Smbus Programming For +Vccin Controller (Jsmb1)

    2.25 -V5/+V5/-V12/+V12/+V3.3/+V5_DUAL Power Supply Connector (VOLT1) MPS’s I2C/SMBUS Programming for +VCCIN 2.26 Controller (JSMB1) AIMB-588 User Manual...

  • Page 37: Edp Panel Connector (Epd1)

    2.27 eDP Panel Connector (EPD1) AIMB-588 User Manual...
  • Page 38 AIMB-588 User Manual...

  • Page 39: Bios Operation

    Chapter BIOS Operation...

  • Page 40: Introduction

    AIMB-588 setup screens. BIOS Setup The AIMB-588 Series system has AMI BIOS built in, with a SETUP utility that allows users to configure required settings or to activate certain system features. The SETUP saves the configuration in the FLASH of the motherboard. When the power is turned off, the battery on the board supplies the necessary power to pre- serve the FLASH.

  • Page 41: Main Menu

    System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. AIMB-588 User Manual...

  • Page 42: Advanced Bios Features

    3.2.2 Advanced BIOS Features Select the Advanced tab from the AIMB-588 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration and go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 43 3.2.2.1 CPU Configuration  Performance-core Information Displays the P-core information. AIMB-588 User Manual...
  • Page 44 3.2.2.2 CPU SMM Enhancement  SMM Use Delay Indication [Enable] Enable/disable usage of SMM_DELAYED MSR for MP sync in SMI.  SMM Use Block Indication [Enable]  SMM Use SMM en-US Indication [Enable] AIMB-588 User Manual...
  • Page 45 3.2.2.3 Power & Performance  CPU – Power Management Control CPU – Power Management Control Options.  GT – Power Management Control AIMB-588 User Manual...
  • Page 46 CPU – Power Management Control 3.2.2.3.1  Boot performance mode [Turbo Performance] Select the performance state that the BIOS will set starting from reset vector. AIMB-588 User Manual...
  • Page 47 View/Configure Turbo Ratio Limit Options. – Energy Efficient P-state [Enable] – Package Power Limit MSR Lock [Disabled] – Power Limit 1 Override [Disabled] – Power Limit 2 Override [Enabled] – Power Limit 2 0 – Energy Efficient P-state [Disable] AIMB-588 User Manual...
  • Page 48  Current Turbo Ratio Limit Settings – P-core Turbo Ratio Limit Numcore0 1 Performance-core Turbo Ratio Limit Numcore0 defines the core range, the turbo Ratio Limit Ratio0. If value is zero, this entry is ignored. AIMB-588 User Manual...
  • Page 49 P-core Turbo Ratio Limit Ratio7 41 Performance-core Turbo Ratio Limit Ratio7 defines the turbo ratio (max is 85 in normal mode and 120 in core extension mode), the core range is defined in Turbo Ratio Limit Numcore7. AIMB-588 User Manual...
  • Page 50 3.2.2.3.2 CPU VR Settings  PSYS Slope PSYS Slope defined in 1/100 increments. Range is 0-200. For a 1.25 slope, enter 125. 0=Auto. Users BIOS VR mailbox command 0x9. AIMB-588 User Manual...
  • Page 51  Acoustic Noise Settings – Acoustic Noise Mitigation [Disabled] Enabling this option will help mitigate acoustic noise on certain SKUs when the CPU is in deeper C state. AIMB-588 User Manual...
  • Page 52  Core/IA VR Domain – R Config Enable [Enabled] VR Config Enable. – IRMS [Disabled] Enable/Disable IRMS – Current root mean square. AIMB-588 User Manual...
  • Page 53  GT Domain  VR Config Enable [Enabled] VR Config Enable. AIMB-588 User Manual...
  • Page 54  RFI Domain – FRI Frequency 0 Set desired RFI frequency, in increments of 100KHZ. (For a frequency of 100.6MHZ, enter 1006.) AIMB-588 User Manual...
  • Page 55 3.2.2.3.3 Custom P-state Table  Number of P states 0 Sets the number of custom P-states. At least 2 states must be present. AIMB-588 User Manual...
  • Page 56 GT – Power Management Control 3.2.2.3.4  RC6 (Render Standby) [Enabled] Check to enable render standby support.  Maximum GT frequency [Default Max Frequency]  Disable Turbo GT frequency [Disabled] 3.2.2.4 PCH-FW Configuration AIMB-588 User Manual...
  • Page 57 AIMB-588 User Manual...
  • Page 58 OS.  ACPI Sleep State [S3 (Suspend to RAM)] Select ACPI sleep state the system will enter when the SUSPEND button is pressed.  S3 Video Repost [Disabled] Enable or Disable S3 Video Repost. AIMB-588 User Manual...
  • Page 59 3.2.2.6 NCT6126D Super IO Configuration  Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). AIMB-588 User Manual...
  • Page 60 – Serial Port [Enabled] Enable or Disable Serial Port (COM) – Device Settings: IO=3F8h; IRQ =4 – Change Settings [Auto] To select an optimal setting for serial port 1. AIMB-588 User Manual...
  • Page 61  Serial Port 2 Configuration – Serial Port [Enable] – Device Settings IO=2F8h; IRQ=3; – Change Settings [Auto] – COM Port Mode [RS-232] To select an optimal setting for serial port 2. AIMB-588 User Manual...
  • Page 62  Digital I/O Configuration – Digital I/O Pin 1 - 8 [Input] 3.2.2.7 NCT6126D HW Monitor  PC Health Status AIMB-588 User Manual...
  • Page 63  Smart Fan Mode Configuration – CPU Fan Mode [SMART FAN IV Mode] – System Fan1 Mode [SMART FAN IV Mode] – System Fan2 Mode [SMART FAN IV Mode] AIMB-588 User Manual...
  • Page 64 3.2.2.8 NCT5124DSEC Super IO Configuration  Serial Port 3 Configuration – Serial Port [Enabled] – Device Settings: IO=C80h; IRQ =5; – Change Settings [Auto] To select an optimal setting for serial port 3. AIMB-588 User Manual...
  • Page 65  Serial Port 55 Configuration – Serial Port [Enabled] – Device Settings: IO=C88h; IRQ =7; – Change Settings [Auto] To select an optimal setting for serial port 4. AIMB-588 User Manual...
  • Page 66  Serial Port 5 Configuration – Serial Port [Enabled] – Device Settings: IO=C90h; IRQ =10; – Change Settings [Auto] To select an optimal setting for serial port 5. AIMB-588 User Manual...
  • Page 67  Serial Port 57 Configuration – Serial Port [Enabled] – Device Settings: IO=228h; IRQ =11; – Change Settings [Auto] To select an optimal setting for serial port 6. AIMB-588 User Manual...
  • Page 68 3.2.2.9 S5 RTC Wake Settings  Wake system from S5 [Disabled] The item allows you enable or disable system wake up on alarm event. AIMB-588 User Manual...
  • Page 69 3.2.2.10 Serial Port Console Redirection  Console Redirection [Disabled] Enable or disable the console redirection feature.  Redirection COM Port [COM1] AIMB-588 User Manual...
  • Page 70 3.2.2.11 Intel TXT Information AIMB-588 User Manual...
  • Page 71  XHCI Hand-off [Enabled]  USB Mass Storage Driver Support [Enabled]  USB hardware delays and time-outs USB Device transfer & reset time-out and delay setting.  Mass Storage Devices [Auto] Shows USB mass storage device information. AIMB-588 User Manual...
  • Page 72  USB PWR OFF Configuration 1-6 [Disabled] Power off USB port 1-6 via BIOS setting. 3.2.2.13 Network Stack Configuration AIMB-588 User Manual...
  • Page 73 3.2.2.14 CSM Configuration  CSM Support [Disabled] 3.2.2.15 NVMe Configuration AIMB-588 User Manual...
  • Page 74 3.2.2.16 Tls Auth Configuration  Server CA Configuration  Client Cert Configuration 3.2.2.17 Driver Health AIMB-588 User Manual...

  • Page 75: Chipset Configuration Setting

    Users can display a Chipset Setup option by highlighting it using the keys. All Chipset Setup options are described in this section. The Chipset Setup screens are shown below. The sub menus are described on the following pages. AIMB-588 User Manual...
  • Page 76 3.2.3.1 Chipset Configuration Setting - System Agent (SA) Configuration  VT-d [Enabled] Disable or enable VT-d function on MCH. AIMB-588 User Manual...
  • Page 77 3.2.3.1.1 Memory Configuration  SIO Port 80 Control [Disabled]  CPU Warning Temperature [Disabled]  ACPI Shutdown Temperature [Disabled]  Case Open Warning [Disabled]  Wake On Ring [Disabled] AIMB-588 User Manual...
  • Page 78 3.2.3.1.2 Graphic Configuration  External Gfx Card Primary Display Configuration AIMB-588 User Manual...
  • Page 79  LCD Control – Backlight Signal Control [PWM] – Backlight Control PWM – Backlight PWM Frequency Control [23.3 KHz] AIMB-588 User Manual...
  • Page 80 3.2.3.1.3 Graphic Configuration  DMI/OPI Configuration  DMI Advanced Menu AIMB-588 User Manual...
  • Page 81 3.2.3.1.4 VMD Configuration  Enable VMD controller [Disabled] AIMB-588 User Manual...
  • Page 82 3.2.3.1.5 PCI Express Configuration  M.2 Key M  PCIE X16_1 AIMB-588 User Manual...
  • Page 83 Chipset Configuration Setting – PCH-IO Configuration 3.2.3.2  PCI Express Configuration  SATA Configuration  Security Configuration  HD Audio Configuration AIMB-588 User Manual...
  • Page 84 3.2.3.2.1 PCI Express Configuration  DMI Link ASPM Control [L1]  PCIe function swap [Enabled]  PCIe EQ settings  PCIe EQ override [Disabled] AIMB-588 User Manual...
  • Page 85 AIMB-588 User Manual...
  • Page 86 3.2.3.2.2 SATA Configuration AIMB-588 User Manual...
  • Page 87 3.2.3.2.3 Security Configuration  RTC Memory Lock [Enabled]  BIOS Lock [Enabled]  Force unlock on all GPIO pads [Disabled] AIMB-588 User Manual...
  • Page 88 3.2.3.2.4 HD Audio Subsystem Configuration Settings  HD Audio [Enabled] AIMB-588 User Manual...

  • Page 89: Security Setting

    Select this option and press to access the sub menu, and then type in the pass- word. Set the Administrator password.  User Password Select this option and press to access the sub menu, and then type in the pass- word. Set the User Password.  Security Boot AIMB-588 User Manual...

  • Page 90: Boot Setting

    Quiet Boot [Disabled] If this option is set to disabled, the BIOS displays normal POST messages. If enabled, an OEM logo is shown instead of POST messages.  Boot Option #1 Choose boot priority from boot device. AIMB-588 User Manual...

  • Page 91: Save & Exit Configuration

    Select this option to quit Setup without making any permanent changes to the system configuration. Select Reset Discarding Changes from the Exit menu and press <Enter>. The following message appears: Discard Changes and Exit Setup Now? [Ok] [Cancel] AIMB-588 User Manual...

  • Page 92: Mebx

    Select Restore Defaults from the Exit menu and press <Enter>.  Save as User Default Save the all current settings as a user default.  Restore User Default Restore all settings to user default values. 3.2.7 MEBx AIMB-588 User Manual...

  • Page 93: Software Introduction & Service

    Chapter Software Introduction & Service...

  • Page 94: Introduction

    Introduction The mission of Advantech Embedded Software Services is to "Enhance quality of life ® ® with Advantech platforms and Microsoft Windows embedded technology." We ® enable Windows Embedded software products on Advantech platforms to more effectively support the embedded computing community. Customers are freed from the hassle of dealing with multiple vendors (hardware suppliers, system integrators, ®...
  • Page 95 System Throttling Refers to a series of methods for reducing power consump- tion in computers by lowering the clock frequency. This API allows the user to adjust the clock from 87.5% to 12.5%. AIMB-588 User Manual...

  • Page 96: Software Utility

    Monitoring is a utility for customers to monitor system health, like voltage, CPU and system temperature and fan speed. These items are important to a device, if critical errors occur and are not solved immediately, permanent damage may be caused. AIMB-588 User Manual...

  • Page 97: Chipset Software Installation Utility

    Chapter Chipset Software Installation Utility...

  • Page 98: Before You Begin

    Before You Begin To ensure problem-free installation of the enhanced display drivers and utility soft- ware, read the instructions in this chapter carefully. The drivers for AIMB-588 can be downloaded from the Advantech website. Updates are provided via Microsoft service packs.

  • Page 99: Windows 10 Driver Setup

    Windows 10 Driver Setup When enter the website of Advantech, then search product AIMB-588. There is "Chipset" driver inside. AIMB-588 User Manual...
  • Page 100 AIMB-588 User Manual...

  • Page 101: Lan Configuration

    Chapter LAN Configuration...

  • Page 102: Introduction

    Introduction The AIMB-588 has one Gigabit Ethernet LAN and three 2.5 Gigabit Ethernet LAN via dedicated PCI Express x1 lanes (Intel I219LM (LAN1), I226V (LAN2), I226V (LAN3/4 for R SKU)), offer bandwidth of up to 500 MB/sec, eliminating the bottleneck of net- work data flow and incorporating Gigabit Ethernet at 1000 Mbps.

  • Page 103: Pin Assignments

    Appendix Pin Assignments...

  • Page 104: Flash Descriptor Security Override Setting Jumper (Me1)

    Jumper (ME1) Function Jumper Setting Disable Flash Descriptor Security (Default) Enable Security measures defined in the Flash Descriptor. CMOS Clear Jumper (JCMOS1) Function Jumper Setting Keep COMS Data (Default) Clear CMOS Date Signal Pin Definition VBAT RTC RESET# AIMB-588 User Manual...

  • Page 105: Com3_Ri# Pin Ri#/5V/12V Selection

    Set COM3_RI# as RI# (Default) Set COM3_RI# as 5V Set COM3_RI# as 12V Watchdog Timer Output and OBS Beep (JOBS1+JWDT1) Function Setting Watchdog Timer Output (2-3) (Default) OBS BEEP (4-5) (Default) Watchdog Timer Disable (1-2) OBS BEEP (4-5) (Default) AIMB-588 User Manual...

  • Page 106: Power Switch/Hdd Led/Smbus/Speaker Pin Header (Jfp1)

    Header (JFP1) Signal Pin Definition Signal Pin Definition FP_HDD_LED FP_PANSWIN# FRP_SPK2 FP_HDD_LED# FRP_SPK3 SMBDAT_JFP FP_SYS_RESET# FRP_SPK4 SMBCLK_JFP ATX/AT Mode Selection (PSON1) Function Jumper Setting ATX Mode (Default) AT Mode Signal Pin Definition ATX selection +VCC AT selection AIMB-588 User Manual...

  • Page 107: Com1/2, Com3/4/5/6 (Com12/Com3456)

    COM1/2, COM3/4/5/6 (COM12/COM3456) Signal Signal COM1_DCD# COM1_DSR# COM1_SIN COM1_RTS# COM1_SOUT COM1_CTS# COM1_DTR# COM1_RI# COM2_422_485_TX- COM2_DSR# COM2_422_485_TX+ COM2_RTS# COM2_422_RX+ COM2_CTS# COM2_422_RX- COM2_RI# AIMB-588 User Manual...

  • Page 108: Case Open Pin Header (Jcaseop_Sw1)

    COM3_SOUT COM3_CTS# COM3_DTR# COM3_RI_V# COM4_DCD# COM4_DSR# COM4_SIN COM4_RTS# COM4_SOUT COM4_CTS# COM4_DTR# COM4_RI# COM5_DCD# COM5_DSR# COM5_SIN COM5_RTS# COM5_SOUT COM5_CTS# COM5_DTR# COM5_RI# COM6_DCD# COM6_DSR# COM6_SIN COM6_RTS# COM6_SOUT COM6_CTS# COM6_DTR# COM6_RI# Case Open Pin Header (JCASEOP_SW1) Signal Pin Definition CASEOP AIMB-588 User Manual...

  • Page 109: Usb Ports

    USB Ports (HDMI_USB56/LAN34/USB10111213/ LAN1_USB12/LAN2_USB3/USB4/USB89/USB7) Signal Signal HDMI1_z_D2+ +USBV0910 USB2_D3- HDMI1_z_D2- USB2_D3+ HDMI1_z_D1+ USB31_P9_z_RX- HDMI1_z_D1- USB31_P9_z_RX+ HDMI1_z_D0+ USB31_P9_z_TX- HDMI1_z_D0- USB31_P9_z_TX+ HDMI1_z_CLK+ +USBV0910 HDMI1_z_CLK- USB2_D4- USB2_D4+ AIMB-588 User Manual...
  • Page 110 HDMI1_SCL USB31_P10_z_RX- HDMI1_SDA USB31_P10_z_RX+ +V5_HDMI1 USB31_P10_z_TX- HDMI1_HPD USB31_P10_z_TX+ AIMB-588 User Manual...
  • Page 111 Signal Signal LAN4_LED2_R_1G# LAN3_LED2_R_1G# LAN4_LED0_R_100M# LAN3_LED0_R_100M# MDI_LAN4_P0 MDI_LAN3_P0 MDI_LAN4_N0 MDI_LAN3_N0 MDI_LAN4_P1 MDI_LAN3_P1 MDI_LAN4_N1 MDI_LAN3_N1 MDI_LAN4_P2 MDI_LAN3_P2 MDI_LAN4_N2 MDI_LAN3_N2 MDI_LAN4_P3 MDI_LAN3_P3 MDI_LAN4_N3 MDI_LAN3_N3 RA10 RB10 LAN4_LED1_ACT# LAN3_LED1_ACT# +V3.3_DUAL +V3.3_DUAL AIMB-588 User Manual...
  • Page 112 Signal +USB2V1234 USB2_D8- USB2_D8+ +USB2V1234 USB2_D7- USB2_D7+ +USB2V1234 USB2_D6- USB2_D6+ +USB2V1234 USB2_D5- USB2_D5+ H1/H2/H3/H4/H5/H6 AIMB-588 User Manual...
  • Page 113 Signal LAN1_LED1_1G#_R LAN1_LED2_100M#_R LAN1_MDI0+ LAN1_MDI0- LAN1_MDI1+ LAN1_MDI1- LAN1_MDI2+ LAN1_MDI2- LAN1_MDI3+ LAN1_MDI3- LAN1_LED0_ACT#_R +V3.3_LAN1_R Signal Signal +USBV12 +USBV12 USB2_D1- USB2_D2- USB2_D1+ USB2_D2+ USB31_P1_z_RX- USB31_P2_z_RX- USB31_P1_z_RX+ USB31_P2_z_RX+ USB31_P1_z_TX- USB31_P2_z_TX- USB31_P1_z_TX+ USB31_P2_z_TX+ H5/H6 H7/H8 AIMB-588 User Manual...
  • Page 114 Signal Signal USBC1_R_CONN_TX1+ USBC1_R_CONN_TX2+ USBC1_R_CONN_TX1- USBC1_R_CONN_TX2- +VUSB_C1 +VUSB_C1 USBC1_CONN_CC1 USBC1_CONN_CC2 USBC1_CONN_DP+ USBC1_CONN_DP+ USBC1_CONN_DM- USBC1_CONN_DM- USBC1_CONN_SBU1 USBC1_CONN_SBU2 +VUSB_C1 +VUSB_C1 USBC1_R_CONN_RX1- USBC1_R_CONN_RX2- USBC1_R_CONN_RX1+ USBC1_R_CONN_RX2+ AIMB-588 User Manual...

  • Page 115: Hdmi+Vga (Hdmi_Vga1)

    A.10 HDMI+VGA (HDMI_VGA1) Signal Signal VGA1_b_R HDMI1_CON2+ VGA1_b_G VGA1_b_B HDMI1_CON2- HDMI1_CON1+ VGA1_FOC_ON HDMI1_CON1- HDMI1_CON0+ AIMB-588 User Manual...

  • Page 116: Display Port (Dp1)

    +VCC_TMDS HDMI1_CON0- HDMI1_CON_CLK+ VGA1_a_DDAT HDMI1_CON_CLK- VGA1_b_HS VGA1_b_VS VGA1_a_DCLK HDMI1_SCL HDMI1_SDA +V5_HDMI1 HDMI1_HPD A.11 Display Port (DP1) Signal DP1_C_0+ DP1_C_0- DP1_C_1+ DP1_C_1- DP1_C_2+ DP1_C_2- DP1_C_3+ DP1_C_3- DP1_C_CAD AIMB-588 User Manual...
  • Page 117 DP1_C_CEC DP1_C_AUX+ DP1_C_AUX- DP1_C_HPD +V3.3_DP A.12 RJ45 1 port+ USB3 2port (LAN1_USB12, LAN2_USB34, LAN3_USB56, LAN4_USB78) Signal LAN1_LED0_2.5G#_R LAN1_LED1_1G#_R LAN1_MDI0+ LAN1_MDI0- LAN1_MDI1+ LAN1_MDI1- LAN1_MDI2+ LAN1_MDI2- LAN1_MDI3+ LAN1_MDI3- AIMB-588 User Manual...
  • Page 118 LAN1_LED0_ACT#_R +V3.3LAN1 Signal Signal +V5_USB3C1 +V5_USB3C1 USB2_0- USB2_1- USB2_0+ USB2_1+ USB3_RX0- USB3_RX1- USB3_RX0+ USB3_RX1+ USB3_TX0- USB3_TX1- USB3_TX0+ USB3_TX1+ H5/H6 H7/H8 AIMB-588 User Manual...
  • Page 119 Signal LAN2_LED0_2.5G#_R LAN2_LED1_1G#_R LAN2_MDI0+ LAN2_MDI0- LAN2_MDI1+ LAN2_MDI1- LAN2_MDI2+ LAN2_MDI2- LAN2_MDI3+ LAN2_MDI3- LAN2_LED0_ACT#_R +V3.3LAN2 AIMB-588 User Manual...
  • Page 120 Signal Signal +V5_USB3C2 +V5_USB3C2 USB2_2- USB2_3- USB2_2+ USB2_3+ USB3_RX2- USB3_RX3- USB3_RX2+ USB3_RX3+ USB3_TX2- USB3_TX3- USB3_TX2+ USB3_TX3+ H5/H6 H7/H8 AIMB-588 User Manual...
  • Page 121 Signal LAN3_LED1_1G#_R LAN3_LED2_100M#_R LAN3_MDI0+ LAN3_MDI0- LAN3_MDI1+ LAN3_MDI1- LAN3_MDI2+ LAN3_MDI2- LAN3_MDI3+ LAN3_MDI3- LAN3_LED0_ACT#_R +V3.3LAN3 AIMB-588 User Manual...
  • Page 122 Signal Signal +V5_USB3C3 +V5_USB3C3 USB2_FCH_C_0- USB2_FCH_C_1- USB2_FCH_C_0+ USB2_FCH_C_1+ USB3_FCH_C_RX0- USB3_FCH_C_RX1- USB3_FCH_C_RX0+ USB3_FCH_C_RX1+ USB3_FCH_C_TX0- USB3_FCH_C_TX1- USB3_FCH_C_TX0+ USB3_FCH_C_TX1+ H5/H6 H7/H8 AIMB-588 User Manual...
  • Page 123 Signal LAN4_LED1_1G#_R LAN4_LED2_100M#_R LAN4_MDI0+ LAN4_MDI0- LAN4_MDI1+ LAN4_MDI1- LAN4_MDI2+ LAN4_MDI2- LAN4_MDI3+ LAN4_MDI3- LAN4_LED0_ACT#_R +V3.3LAN4 AIMB-588 User Manual...
  • Page 124 Signal Signal +V5_USB3C4 +V5_USB3C4 USB2_FCH_C_2- USB2_FCH_C_3- USB2_FCH_C_2+ USB2_FCH_C_3+ USB3_FCH_C_RX2- USB3_FCH_C_RX3- USB3_FCH_C_RX2+ USB3_FCH_C_RX3+ USB3_FCH_C_TX2- USB3_FCH_C_TX3- USB3_FCH_C_TX2+ USB3_FCH_C_TX3+ H5/H6 H7/H8 AIMB-588 User Manual...
  • Page 125 A.13 Audio Jack (AUDIO1) Signal MIC IN LINE OUT LINE IN A.14 Front Panel Audio Header (FPAUD1) Signal Signal MIC IN-L MIC IN-R FPAUD_DETECT# LINE OUT-R MIC2-JD FRONT-IO-SENSE LINE OUT-L LINE2-JD AIMB-588 User Manual...
  • Page 126 A.15 PCI Express X16 Slot (PCIEX16_1) AIMB-588 User Manual...
  • Page 127 REFCLK+ TX0+ REFCLK- TX0- RX0+ Reserved RX0- DETECT# TX1+ TX1- RX1+ RX1- TX2+ TX2- RX2+ RX2- TX3+ TX3- RX3+ Reserved RX3- Reserved TX4+ Reserved TX4- RX4+ RX4- TX5+ TX5- RX5+ RX5- TX6+ TX6- RX6+ RX6- TX7+ TX7- AIMB-588 User Manual...
  • Page 128 Reserved RX7- TX8+ Reserved TX8- RX8+ RX8- TX9+ TX9- RX9+ RX9- TX10+ TX10- RX10+ RX10- TX11+ TX11- RX11+ RX11- TX12+ TX12- RX12+ RX12- TX13+ TX13- RX13+ RX13- TX14+ TX14- RX14+ RX14- TX15+ TX15- RX15+ Reserved RX15- Reserved AIMB-588 User Manual...
  • Page 129 A.16 NGFF M.2 M-Key Connector for 2280 Module (M.2_M1) Signal Signal GND_1 3p3V_1 GND_2 3p3V_2 PERN3 NC_1 PERP3 NC_2 GND_3 DAS/DSS-I/O/LED1-I-03p3V PETN3 3p3V_3 PETP3 3p3V_4 GND_4 3p3V_5 PERN2 3p3V_6 PERP2 NC_3 GND_5 NC_4 PETN2 NC_5 PETP2 NC_6 AIMB-588 User Manual...
  • Page 130 NC_15 PETN0/SATA-A- NC_16 PETP0/SATA-A+ PERST-O-0/3p3V/NC GND_10 CLKREQ-I/O-0/3p3V/NC REFCLKN PEWAKE-I/O-0/3p3V/NC REFCLKP NC_17 GND_11 NC_18 NC_19 SUSCLK-32KHZ-O-0/3p3V PEDET-NC-PCIE/GND-SATA 70 3p3V_7 GND_12 3p3V_8 GND_13 3p3V_9 GND_14 TX11+ TX11- RX11+ RX11- TX12+ TX12- RX12+ RX12- TX13+ TX13- RX13+ RX13- TX14+ TX14- AIMB-588 User Manual...
  • Page 131 Signal 12V_1 PRSNT1 12V_2 12V_4 12V_3 12V_5 GND_1 GND_20 SMCLK JTAG2 SMDAT JTAG3 GND_2 JTAG4 3_3V_1 JTAG5 JTAG1 3_3V_2 3_3VAUX 3_3V_3 WAKE PWRGD RSVD_1 GND_21 GND_3 REFCLK+ HSOP0 REFCLK- HSON0 GND_22 GND_4 HSIP0 PRSNT2_1 HSIN0 GND_5 GND_23 AIMB-588 User Manual...
  • Page 132 GND_24 GND_6 HSIP1 GND_7 HSIN1 HSOP2 GND_25 HSON2 GND_26 GND_8 HSIP2 GND_9 HSIN2 HSOP3 GND_27 HSON3 GND_28 GND_10 HSIP3 RSVD_2 HSIN3 PRSNT2_2 GND_29 GND_11 RSVD_4 A.18 ATX 12V Power Supply Connector (ATX12V1) Signal +12V +12V +12V +12V AIMB-588 User Manual...
  • Page 133 A.19 System FAN (SYSFAN1~4) Signal SYSTEM FAN VCC SYSTEM FAN SPEED SYSTEM FAN PWM A.20 DDR5 U-DIMM Socket (DIMMA1, DIMMA2, DIMMB1, DIMMB2) AIMB-588 User Manual...
  • Page 134 A.21 ATX 12/5V/3V/5VSBV Power Supply Connector (ATXPWR1) Signal Signal +3.3V_1 +3.3V_4 +3.3V_2 -12V +5V_1 PS_ON# +5V_2 COM_3 PWR_OK +5VSB +5V_3 +12V1_1 +5V_4 +12V1_2 +5V_5 +3.3V_3 AIMB-588 User Manual...
  • Page 135 A.22 Serial ATA Interface Connector (SATA1~4) Signal A.23 8-bits General Purpose I/O Pin Header (GPIO1) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 +V5A_GPIO AIMB-588 User Manual...
  • Page 136 Keyboard and Mouse Box Header (KBMS1) Signal KB_CLK# KB_DAT# MS_DAT# VCC (+5VSB) MS_CLK# A.25 COM3,4,5,6 Box Header (COM3456) Signal Signal DCD# [3] DSR# [3] RXD [3] RST# [3] TXD [3] CTS# [3] DTR# [3] RI# [3] DCD# [4] DSR# [4] AIMB-588 User Manual...
  • Page 137 DSR# [5] RXD [5] RST# [5] TXD [5] CTS# [5] DTR# [5] RI# [5] DCD# [6] DSR# [6] RXD [6] RST# [6] TXD [6] CTS# [6] DTR# [6] RI# [6] A.26 Vertical USB2 Connector(USB15) Signal +V5_USB2C2 R_USB2_FCH_10- R_USB2_FCH_10+ AIMB-588 User Manual...
  • Page 138 A.27 USB2 Pin Header 2port (USB13_14) Signal Signal +V5_USB2C1 +V5_USB2C1 R_USB2_FCH_4- R_USB2_FCH_5- R_USB2_FCH_4+ R_USB2_FCH_5+ A.28 CPU FAN Connector (CPUFAN1) Signal CPU FAN VCC CPU FAN SPEED CPU FAN PWM AIMB-588 User Manual...
  • Page 139 A.29 Power LED and Keyboard Lock Pin Header (JFP2) Signal Signal LED Power Keyboard Lock SIO_SUSLED AIMB-588 User Manual...
  • Page 140 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2023...

This manual is also suitable for:

Aimb-588qAimb-588rAimb-588h

Table of Contents
