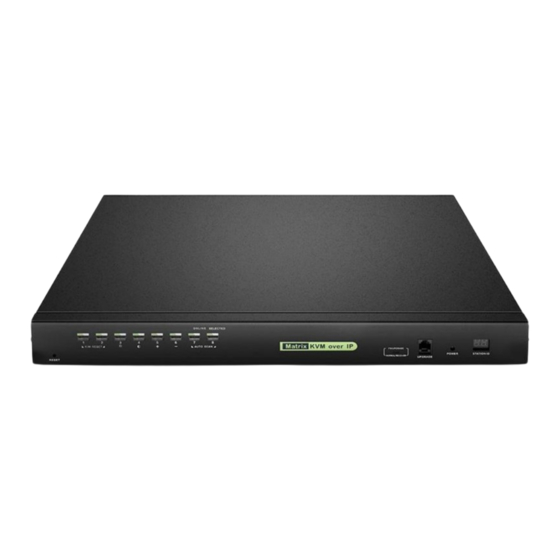

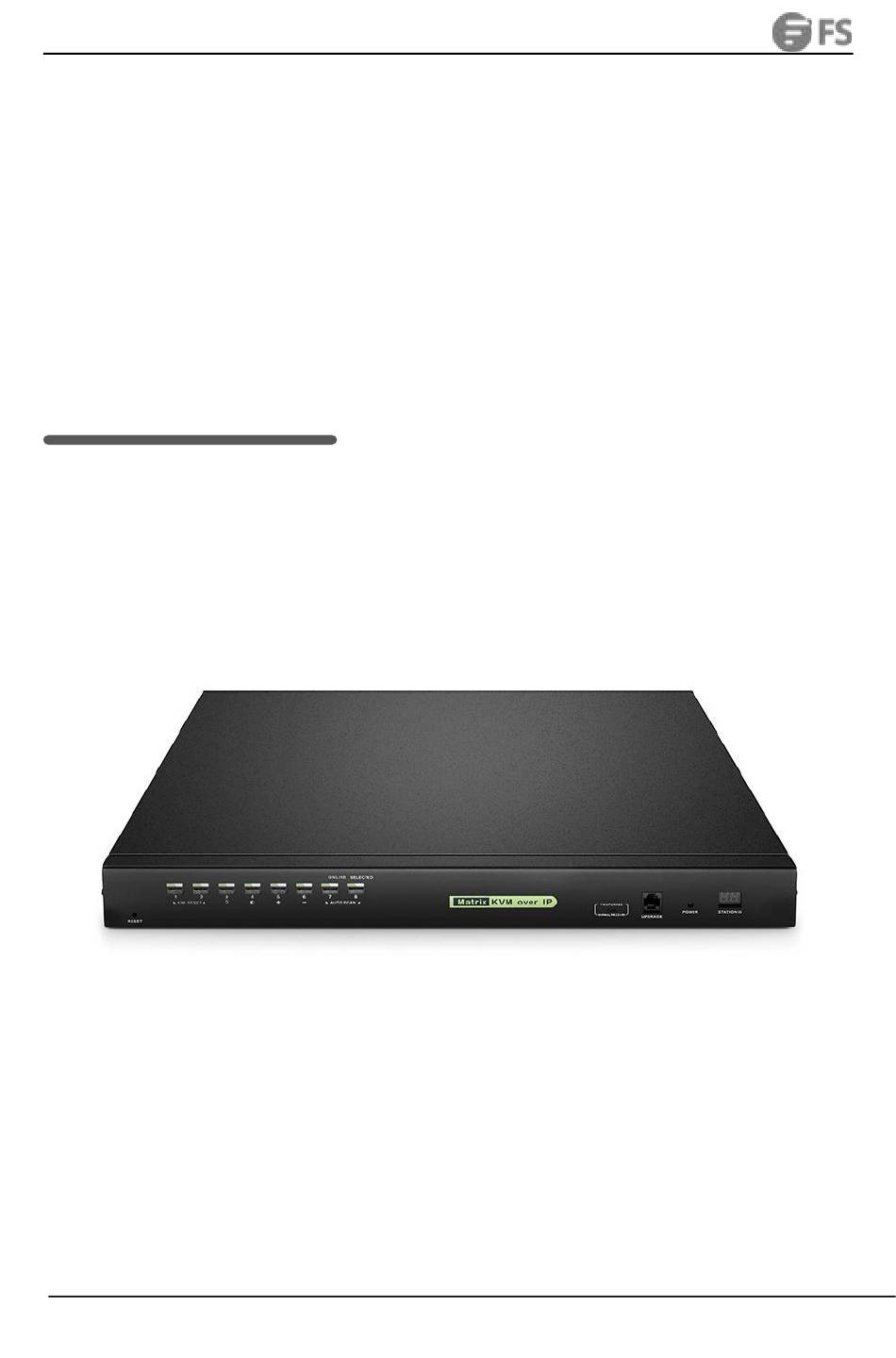

KVM-0802IP User Manual
KVM-0802IP
User Manual
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the KVM-0802IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FS KVM-0802IP

Summary of Contents for FS KVM-0802IP

  • Page 1 KVM-0802IP User Manual KVM-0802IP User Manual - 1 -...

  • Page 2: Table Of Contents

    KVM-0802IP User Manual Contents 1. Description............................3 1.1 Brief Introduction............................3 1.2 Features................................3 1.2.1 Front View ............................... 4 1.2.2 Structure and Size ............................4 2. Hardware Installation........................5 2.1 Rack Mounting..............................5 2.2 KVM Installation Diagram...........................7 2.3 Opening the KVM ............................8 2.4 KVM Adapter..............................8 3.Pushbutton operation........................9...

  • Page 3: Description

    KVM-0802IP User Manual 1.Description 1.1 Brief Introduction Matrix KVM-ove-IP (Hereinafter refers to Matrix KVM) redirects the local keyboard, mouse and video data to a remote administration console. It allows you to control one or many computers locally at the server site or remotely via the Internet using a standard browser. You can securely gain BIOS level access to systems for maintenance, support, or failure recovery over the Internet.

  • Page 4: Front View

    KVM-0802IP User Manual BIOS-level access  Video quality and video tolerance can be adjusted to optimize data transfer speed, up to 30  Full screen or scalable video display  Remote users and local users can control the same server synchronously ...

  • Page 5: Hardware Installation

    KVM-0802IP User Manual Rear view RS485 RS485 RS485 RS485 1-1.3 Explanation Ground connecting screw Power input (AC or DC) Power Switch LAN Port USB Port RS485 Port Monitor Port PC connecting port 2.Hardware Installation 2.1 Rack Mounting The KVM switch will be installed in the front or rear rack cabinet. Make sure all the connecting computers as well as external device are shut down.
  • Page 6 KVM-0802IP User Manual 2-1.1 2) Screw the bracket to the front or rear part of the KVM switch 2-1.2 3) Screw the KVM device to the rack cabinet (front or rear part) - 6 -...

  • Page 7: Kvm Installation Diagram

    KVM-0802IP User Manual 2-1.3 2.2 KVM Installation Diagram Installation Steps: 1） Make sure the IP KVM has been connected to the ground.① 2） Connect PC or server to KVM with KVM adapter and CAT5 cable according to number② and ③ in below diagram.

  • Page 8: Opening The Kvm

    KVM-0802IP User Manual 2.3 Installation diagram 2.3 Opening the KVM The KVM makes “beep” sounds after power on, UI window appears for you to input user name  and password. admin User Name ： admin Password： Power on the computer or server after power on the KVM.

  • Page 9: Pushbutton Operation

    KVM-0802IP User Manual Model No. Keyboard/Mouse Explanation KCM-1100P PS/2 Connect to PS2/VGA server USB Adapter Model No. Keyboard/Mouse Explanation KCM-1200U Connect to USB/VGA server KCM-3200H HDMI Connect to USB/HDMI server KCM-2200D Connect to USB/DVI server KCM-4200P Connect to USB/DP server...

  • Page 10: Key Combination Function

    KVM-0802IP User Manual Components Function 1-32 Switching freely from port 1 to port 32 Press 【1】and【2】 at the same time for three Reset seconds resets the keyboard and mouse Press【7】 and【8】at the same time for three seconds Scan enters the auto scan mode.

  • Page 11: Function Description

    KVM-0802IP User Manual Double click【L_Ctrl】 pop up the Double click【L_Alt】 UI interface Double click【Scroll Lock 】 Double click【Caps Lock】 【L _Alt】 +【L_Ctrl】 【L_Win】+【L_Ctrl】 Hot key 【L_Alt】 +【L_Win】 Hotkey commands are as follows： Hot key + the corresponding function key Function...

  • Page 12: User Interface Operation

    KVM-0802IP User Manual 4.User Interface Operation login UI control menu User Name：admin Password： admin After logging in the device, you can see the connection status of the device port. In the port list, 1． Click the “Connect" to enter the host screen;...

  • Page 13: User

    KVM-0802IP User Manual 4.1 User User management mainly set up for user& user group adding, delete and modifying, user password modification, user group permissions and so on. If the user do not have user management authority, the user cannot access to user management interface. The user in this section is who have the user management authority.
  • Page 14 KVM-0802IP User Manual Add user  Click【add】button, the window below appears: Note: In this window, “*” is required content 4． User name: user name can contains only low case letters, number and “_” 5． Enter password: without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _)；With strong password protection,...
  • Page 15 KVM-0802IP User Manual User group name search  Input user group name, it shows related user groups which make it convenient when you have a large number of users Add user group  Click【add】button, the window below appears 1. User group name: it contains only low case letter, number and “_”...
  • Page 16 KVM-0802IP User Manual Note: In this window, “*” is required content User name: user name can contains only low case letter, number and “_” Enter password：without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _)；With strong password protection, the password should be filled in according to the rules of strong password protection.

  • Page 17: System

    KVM-0802IP User Manual 4.2 System Network settings IPv4 address setting: IP address: preset IP address  Subnet mask: Generally, it should be consistent with other devices in the network.  Default gateway: Generally, it should be consistent with other devices in the network.
  • Page 18 KVM-0802IP User Manual Date time System time setting: Customized time: manual setting Synchronize with the NTP server: the system automatically updates the time according to the time Equipment information - 18 -...

  • Page 19: Security

    KVM-0802IP User Manual Encoding parameters 4.3 Security Security Settings Login restriction: user name login restriction  Single sign on restriction: if one user name is logged in, it can no longer log in with this user  name, if it is selected, you can log in with the user name Enable passwords expiration: current password use days, ranges from 1-365 days, if it is ...
  • Page 20 KVM-0802IP User Manual Free user log off: If user do not have operations after logging in a set time, the user will be  logged off automatically Login lockout  Lockout forbidden: when it is selected, lockout will be canceled ...

  • Page 21: Maintenance

    KVM-0802IP User Manual 4.4 Maintenance Provide system maintenance tools such as test tools, data backup and restart Backup & Restore Backup: backup current system settings Restore: estore the last backup of system Factory reset: Restore to factory state (KVM must be restarted to take effect)

  • Page 22: Remote Control

    KVM-0802IP User Manual 5.Remote Control 5.1 Configure the Target Server Before installing and using the IP-KVM Switch, connect and configure the target server first. Refer to below configuration instructions: The digital KVM switch supports below two mouse mode:  Absolute mouse mode ...
  • Page 23 KVM-0802IP User Manual Set up the display of the target server under Windows XP, Windows 2003, Windows2008 Start—>Control Panel—>[Hardware]—>Display Please follow the steps above to finish the setting. Configure the mouse under Linux (ubuntu 10)  Input “set m 1 1” in the Linux command line terminal and press Enter to finish the mouse ...

  • Page 24: Remote Web Interface Settings

    KVM-0802IP User Manual 5.2 Remote WEB Interface Settings Install and open IE browser, click top-right settings→【Internet Options】 Click【Security】→【Custom Level】 - 24 -...
  • Page 25 KVM-0802IP User Manual 【ActiveX controls and plugins】 - 25 -...

  • Page 26: Log In

    KVM-0802IP User Manual Click【Advanced】, find 【Allow software to run or install even if the signature is invalid】and select 5.3 Log in Default Items Default Value User name admin Password admin IP address 192.168.1.167 Notice: For security, please change the password after the first login.
  • Page 27 KVM-0802IP User Manual admin User Name ： admin Password： After logging in for the first time, a prompt for loading the ActiveX will appear below the browser. Clicking Allow will bring up the Download Video Plugin dialog box. Click OK to use the video plugin.

  • Page 28: Video Control Interface Menu

    KVM-0802IP User Manual Edit Port Name: 5.4 Video Control Interface Menu 【Hide or Show Toolbar】 【Setting Option】 【Send Ctrl+Alt+Del】 【Mouse Synchronization】 【Single Mouse】 【Adaptive Window】 【Source Video params】 【Full Screen】 - 28 -...
  • Page 29 KVM-0802IP User Manual Hide or Show Toolbar When the video window starts, the toolbar is always displayed by default. Click the iron toolbar will automatically hide. When the mouse move out (into) from the toolbar, it hides shows). Setting Options Keyboard &...
  • Page 30 KVM-0802IP User Manual Full Screen Setting Full Screen Zoom: When unselected, the video window will spread the video screen full of the remote computer screen in the full screen state; when selected, if the target server’s resolution is different from the remote user computer’s resolution (the resolution of the general target server is less than the resolution of the remote user computer), the video plug-in will display the screen in the middle of the screen according to the resolution of the target server.
  • Page 31 KVM-0802IP User Manual Manual calibration resolution: When the resolution of the target server is not consistent  with the resolution of the video window, it can manually calibrate the resolution after calibration Target server resolution: Resolution selection of manual calibration ...
  • Page 32 KVM-0802IP User Manual Click blank input box, virtual keyboards appears, and the key clicked on the virtual keyboard will be displayed in the input box. Send [send Ctrl+Alt+Del] Keyboard Macro: click this button, the target server will receive shortcut key. Send Ctrl+Alt+Del.
  • Page 33 KVM-0802IP User Manual Source video params Optimum size The initialization size of the video window is 1024x768, when click this button, the video window will adjust the size of the window according to the resolution of the target server. Full Screen...

  • Page 34: Ip Menu Option

    KVM-0802IP User Manual 6. IP Menu Option 6.1 User Management User management mainly set up for user & user group adding, delete and modifying, user name password modification, user group permissions and so on. If the user do not have user management authority, the user cannot access to user management interface.
  • Page 35 KVM-0802IP User Manual Click【add】button, the window below appears: Note: In this window, “*” is required content User name: user name can contains only low case letter, number and “_” Enter password：Without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _)；With strong password protection, the...
  • Page 36 KVM-0802IP User Manual Note：admin cannot be deleted，other users can be deleted, even if they are online. Edit user Click【A1】, edit user window pop up User group list - 36 -...
  • Page 37 KVM-0802IP User Manual User group list interface：list all registered users, you can see more by page turning User group name search  Input user group name, it shows related user groups which make it convenient when you  have a large number of users Add user group Click【add】button, the window below appears...
  • Page 38 KVM-0802IP User Manual Authority：mainly refers to management authority and operation authority, click show more, authority menu appears(shown in picture above), click show less, authority menu disappears Port Access: Authority to access KVM, and control target server  User Management: user management authority ...

  • Page 39: System Settings

    KVM-0802IP User Manual 1. Old passwords: The passwords you are using 2. New passwords: Without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _)；With strong password protection, the password should be filled in according to the rules of strong password protection.
  • Page 40 KVM-0802IP User Manual Network Setting IPv4 Address Setting: IP address: preset IP address  Subnet mask: Generally, it should be consistent with other devices in the network.  Default gateway: Generally, it should be consistent with other devices in the network.
  • Page 41 KVM-0802IP User Manual Date /Time Setting System Time Setting: Customized time: manual setting  Synchronize with the NTP server: The system automatically updates the time according to  the time server Time zone setting: choose time zone  Encoding Parameters...

  • Page 42: Safety Management

    KVM-0802IP User Manual 6.3 Safety Management Security Settings Login Restriction: User name login restriction Single sign on restriction: If one user name is logged in, it can no longer log in with this user  name, if it is selected, you can log in with the user name Enable passwords expiration: Current password use days, ranges from 1-365 days, if it is ...

  • Page 43: System Maintenance

    KVM-0802IP User Manual Strong password Enable password strength rules： when it is selected, the original password will be forced to be  tighten Password history depth: new password cannot be the same as the latest 3 (default) password,  this number can be changed, it ranges from 1-10 Strong passwords is at least 1 bit and maximum is 16 bits ...
  • Page 44 KVM-0802IP User Manual Backup & Restore Backup: Backup current system settings  Restore: Restore the last backup of system  Factory Reset: Restore to factory state (KVM must be restarted to take effect)  Ping Host Test network connection state to target server Input IP address and click 【ping】...
  • Page 45 KVM-0802IP User Manual Remote Upgrade Provide users with better upgrade experience and continuous technical support Upgrade Method: Click 【 browse】 and select upgrade file, upload the file to the device, then Click 【upgrade】 to finish upgrade - 45 -...

  • Page 46: Appendix

    KVM-0802IP User Manual 7.Appendix 7.1Specifications Model 8 Port 16 Port 32 Port Computer Connection Port selection Port selection Pushbutton, OSD menu, Web Keyboard 2 * USB TYPE A Mouse Console Monitor 1-HDB-15 Female(blue) Connector KVM Port (RJ-45) Upgrading switch 1* RJ11 Female...

  • Page 47: Grounding Requirements

    KVM-0802IP User Manual 7.2 Grounding Requirements Make sure the KVM and the devices that connected to KVM are all connected to the ground. To improve the device safety, please make sure the device is connected to the ground and use the STP cable to connect the device.
