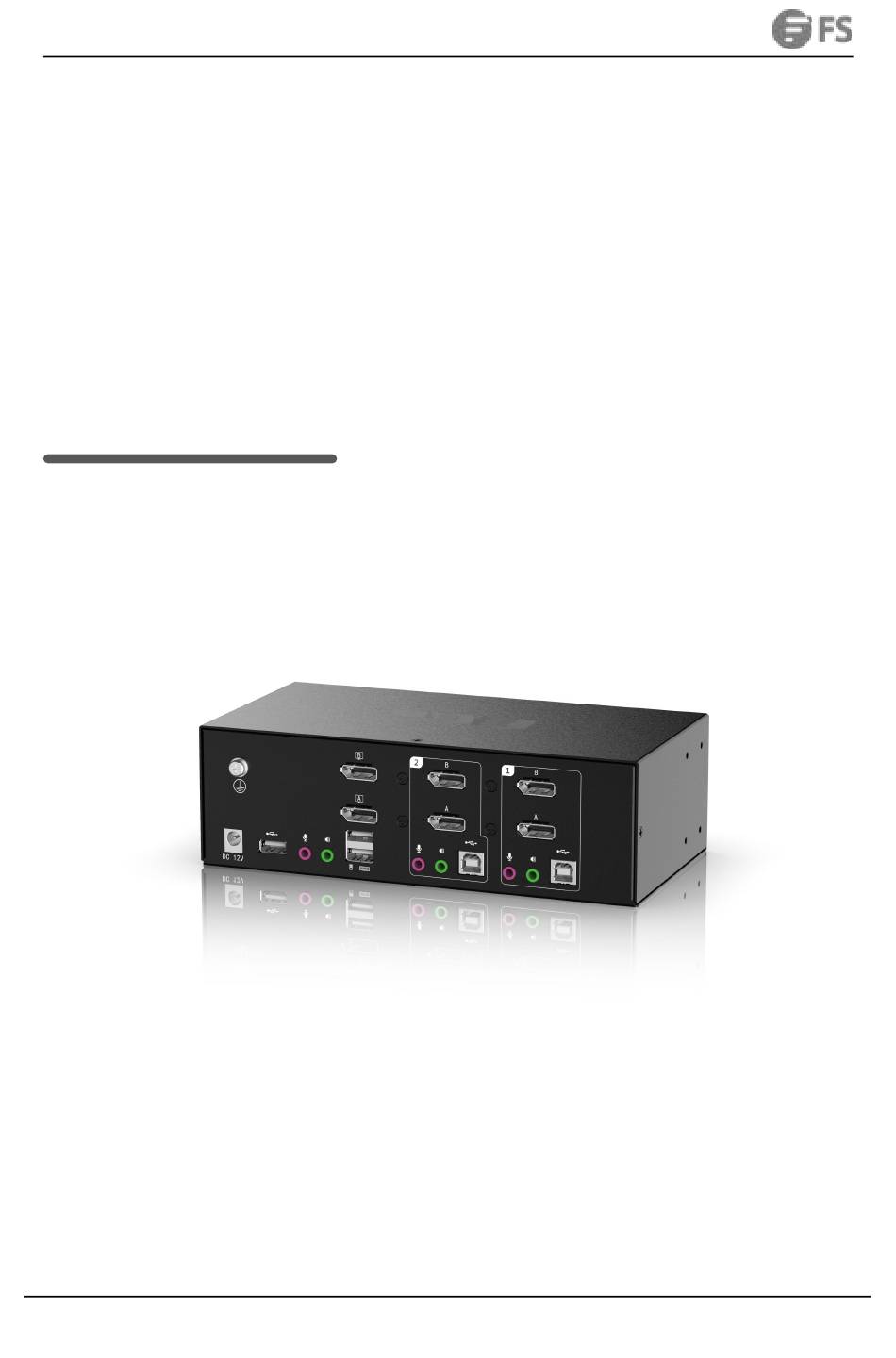

- Page 1 KVM-0201 User Manual KVM-0201 User Manual...
-
Page 2: Table Of Contents
KVM-0201 User Manual Content 1.Overview..............................2 2.Components............................2 3.Hardware Settings..........................4 4.Mouse Switching..........................5 5.Hotkey Operation..........................6 6.Specifications............................7 7.Frequently Asked Questions......................8 - 1 -... -
Page 3: Overview

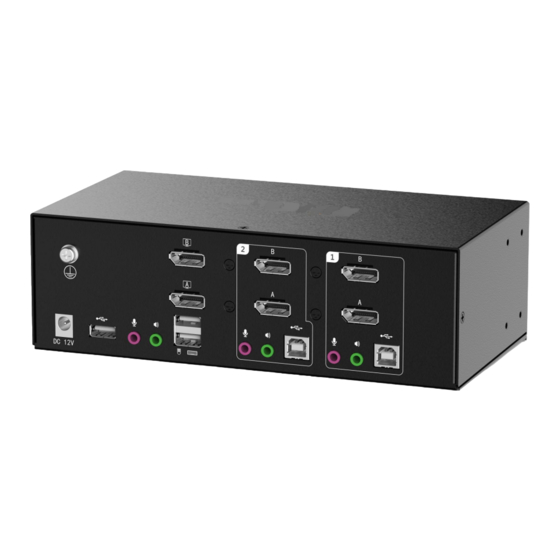

KVM-0201 User Manual 1.Overview KVM-0201 is a 2 in 2 out UHD KVM switch that allows users to access to two dual DP display port computers via a single USB keyboard and mouse. Both input and output support DisplayPort1.2. With a built-in 1 USB 2.0 hub and 2.1 channel audio for rich bass surround sound. It supports superior video quality up to 4K UHD @ 60 Hz and 4K DCI @ 60Hz,displaying vivid high-definition images and providing high-quality sound effects for music, movies and games. - Page 4 KVM-0201 User Manual LED status panel Components Port LED Mode Selection LED Audio LED KVM LED USB HUB LED Mode selection button and mode indicator Pressing the Mode Selection button at different times will light up different Mode LED. Press Button Mode LED that lights up KVM、Audio、USB HUB...
-
Page 5: Hardware Settings
KVM-0201 User Manual 3.Hardware Settings It is important that all connected equipment must be properly grounded to prevent damage from electrical surges or static electricity. Ensure that power of all devices will be connected to this installation are turned off. You must unplug the power cord of all computers with "Keyboard on"... -
Page 6: Mouse Switching
KVM-0201 User Manual Connection diagram 4.Mouse Switching ： Middle + right ： Middle + left Switch to the previous port Switch to the next port Middle button + left button Switch to the previous port Mouse Switching Middle button + right button... -
Page 7: Hotkey Operation
KVM-0201 User Manual 5.Hotkey Operation The DM series provides a wealth of hotkey functions to control and configure the device using the keyboard. Press [Scroll Lock] twice continuously (within 2S interval) to enter the keyboard hotkey mode. If no key is pressed within two seconds in the keyboard hotkey mode, the keyboard will exit the hotkey operation mode. -
Page 8: Specifications
KVM-0201 User Manual 6.Specifications Model KVM-0201 Computer Connections Port Selection Pushbutton; Hotkey; Mouse Monitor 2 * DisplayPort Keyboard/mouse 2 * USB type A（White） Console Microphone (Pink) 1* 3.5mm Audio Jack Speaker (Green) 1 * 3.5mm Audio Jack Connectors Video input... -
Page 9: Frequently Asked Questions
KVM-0201 User Manual 7.Frequently Asked Questions Issue Solution Check whether the port indicator on the front panel of the device is Check whether the USB cable is connected (USB-B connects to the KVM switch, USB-A connects to the PC host ).
