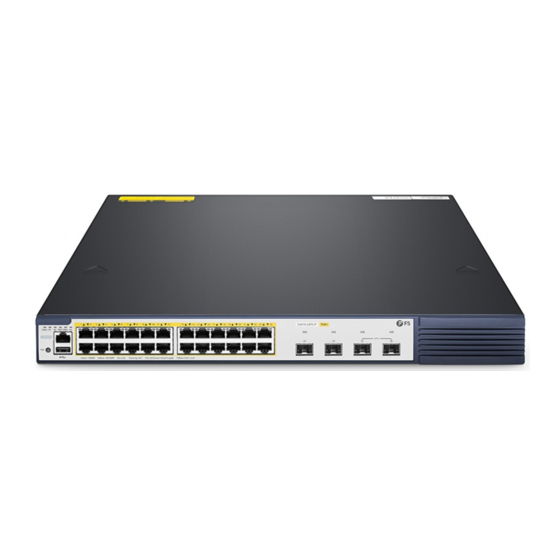

FS S3410 Series Quick Start Manual

Managed l2+ gigabit poe+ switches
Hide thumbs Also See for S3410 Series:
Table of Contents

Advertisement

Quick Links

S3410 Series Switches
MANAGED L2+ GIGABIT POE+
SWITCHES
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3410 Series and is the answer not in the manual?

Questions and answers

Related Manuals for FS S3410 Series

Summary of Contents for FS S3410 Series

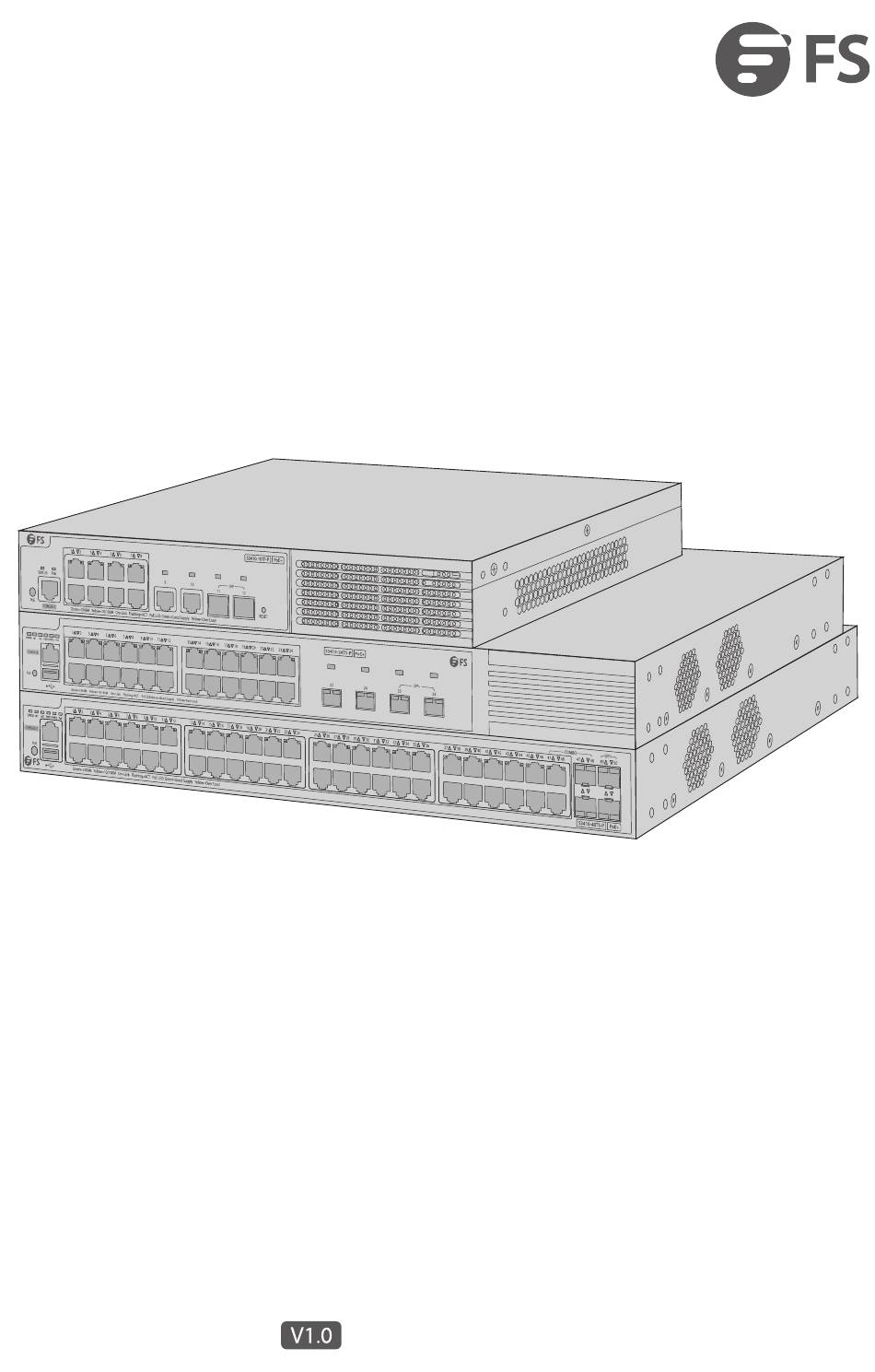

  • Page 1 S3410 Series Switches MANAGED L2+ GIGABIT POE+ SWITCHES Quick Start Guide...
  • Page 2 Introduction Thank you for choosing S3410 Series Managed PoE+ Switches. This guide is designed to familiarize you with the layout of the switch and describes how to deploy the switch in your network. S3410-10TF-P S3410-24TS-P PoE+ STATUS M1 M2 PWR1 PWR2 PoE...

  • Page 3: Hardware Overview

    Grounding Cable x1 Rubber Pad x4 Mounting Bracket x2 M4 Screw x8 NOTE: S3410 series PoE+ switches have dust plugs delivered with them. Keep the dust plugs properly and use them to protect idle optical ports. Hardware Overview Front Panel Ports S3410-10TF-P...
  • Page 4 S3410-24TS-P CONSOLE S3410-24TS-P PoE+ STATUS M1 M2 PWR1 PWR2 PoE SFP+ CONSOLE Green=1000M Yellow=10/100M On=Link Flashing=ACT PoE LED:Green=Good Supply Yellow=Over Load RJ45 RJ45/SFP Combo SFP+ S3410-48TS-P CONSOLE SFP+ RJ45 RJ45/SFP Combo Ports Description RJ45 10/100/1000BASE-T ports for Ethernet connection RJ45/SFP Combo One RJ45 port and one SFP slot, with one port active at a time SFP+ SFP+ ports for 1/10G connection...

  • Page 5: Front Panel Buttons

    Front Panel Buttons S3410-10TF-P RESET Button Description Switch the display mode between PoE mode and switch mode. Restart: Press and hold the RESET button for more than ve seconds, RESET and then wait for ten seconds. S3410-24TS-P S3410-24TS-P PoE+ STATUS M1 M2 PWR1 PWR2 PoE SFP+ CONSOLE...

  • Page 6: Back Panels

    Back Panels S3410-10TF-P Cable Clamps Holes Power Supply Grounding Point S3410-24TS-P/S3410-48TS-P Module1 Module2 Input Input Power Output Output Expansion Module Slot Dual Power Supplies Grounding Point Front Panel LEDs S3410-10TF-P RJ45 STATUS PoE(1-8)
  • Page 7 S3410-24TS-P PWR2 RJ45 SFP+ STATUS S3410-24TS-P PoE+ STATUS M1 M2 PWR1 PWR2 PoE SFP+ CONSOLE Green=1000M Yellow=10/100M On=Link Flashing=ACT PoE LED:Green=Good Supply Yellow=Over Load PoE(1-24) PWR1 S3410-48TS-P PWR2 STATUS RJ45 SFP+ PoE(1-48) PWR1 LEDs Status Description Switch is not receiving power. System is being initialized.
  • Page 8 LEDs Status Description Solid Green Indicates the switching state. Indicates the PoE state. Solid Yellow The port is not connected. The port is connected at 1000 Mbps. Solid Green RJ45 Blinking Green The port is receiving or transmitting tra c at 1000 Mbps. Solid Yellow The port is connected at 10/100 Mbps.

  • Page 9: Installation Requirements

    Installation Requirements Before you begin the installation, make sure that you have the followings: Phillips screwdriver. Standard-sized, 19" wide rack with a minimum of 1U height available. Category 5e or higher RJ-45 Ethernet cables, ber optical cables and console cable for connecting network devices.

  • Page 10: Mounting The Switch

    Mounting the Switch Desk Mounting 1. Attach four rubber pads to the bottom. 2. Place the chassis on a desk. Rack Mounting 1. Secure the mounting brackets to the two sides of the switch with the supplied M4 screws.

  • Page 11: Wall Mounting

    2. Attach the switch to the rack using four M6 screws and cage nuts. Wall Mounting 1. Secure the mounting brackets to the two sides of the switch with the supplied M4 screws.

  • Page 12: Installing The Power Supply Module

    2. Use the expansion screws to securely attach the mounting brackets on the wall. NOTE: Suitable for mounting on concrete or other non-combustible surface only. Installing the Power Supply Module S3410-24TS-P/S3410-48TS-P...

  • Page 13: Grounding The Switch

    1. Take a new power module out of the package and con rm the input mode and the input parameters of the power module match the requirements. 2. Remove the old power module and take the plane printed with power information as the top panel of the power module.

  • Page 14: Connecting The Power

    Connecting the Power 1. Plug the AC power cord into the power port on the back of the switch. 2. Connect the other end of the power cord to an AC power source. WARNING: Do not install power cable while the power is on. Connecting the RJ45 Ports 1.

  • Page 15: Connecting The Console Port

    Connecting the SFP/SFP+ Ports 1. Plug the compatible SFP/SFP+ transceiver into the SFP/SFP+ port. 2. Connect a ber optic cable to the ber transceiver. Then connect the other end of the cable to another ber device. WARNING: Laser beams will cause eye damage. Do not look into bores of optical modules or optical bers without eye protection.

  • Page 16: Stacking The Switches

    Stacking the Switches S3410-24TS-P/S3410-48TS-P The S3410-24TS-P/S3410-48TS-P switches support stacking up to 4 switches between the same series together. The switches can be physically stacked using optical ber cables connected to SFP+ transceivers or 10G Direct Attach Cables (DAC). S3410-24TS-P switch supports ports 25 & 26 for physical stacking.
  • Page 17 Con guring the Switch Con guring the Switch Using the Web-based Interface Step 1: Connect the computer to any Ethernet port of the switch using the network cable. Step 2: Set the IP address of the computer to 192.168.1.x. ("x" is any number from 2 to 254.). Set the subnet mask of the computer to 255.255.255.0.

  • Page 18: Troubleshooting

    Con guring the Switch Using the Console Port Step 1: Connect a computer to the switch's console port using the console cable. Step 2: Start the terminal simulation software such as HyperTerminal on the computer. Step 3: Set the parameters of the HyperTerminal: 9600 bits per second, 8 data bits, no parity, 1 stop bit and no ow control.

  • Page 19: Support And Other Resources

    Product Warranty FS ensures our customers that any damage or faulty items due to our workmanship, we will o er a free return within 30 Days from the day you receive your goods. This excludes any custom made items or tailored solutions.
