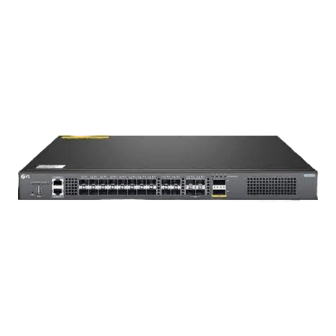

FS S5860-20SQ Configuration Manual
Reset and recovery system
Hide thumbs
Also See for S5860-20SQ:
- Quick start manual (16 pages) ,
- Quick start manual (24 pages) ,
- Quick start manual (57 pages)
Subscribe to Our Youtube Channel
Related Manuals for FS S5860-20SQ
Summary of Contents for FS S5860-20SQ
- Page 1 S5860-20SQ SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE S5860-20SQ Switch Reset and Recovery System Configuration Guide S5860-20SQ Switch Reset and Recovery System Configuration Guide Model: S5860-20SQ www.fs.com...
- Page 2 S5860-20SQ SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE Contents 1. Clear Device Password ..............................1 1.1 Networking Requirements ................................... 1 1.2 Network Topology......................................1 1.3 Configuration Steps...................................... 1 1.3.1 U-boot Save Configuration and Reset Password............................ 1 1.3.2 U-boot Restore Factory Settings Reset Password...........................2 2.
- Page 3 S5860-20SQ SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE 1. Clear Device Password 1.1 Networking Requirements (1) If the administrator forgets the login password and cannot enter the configuration mode for configuration, then you need to use the Consloe line to enter the CTRL layer for password recovery.
- Page 4 S5860-20SQ SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE Manually power off and restart the device. When prompted by Ctrl+C, press the Ctrl key C key on the keyboard at the same time to enter the u-boot interface. Under the Rboot menu, click the red reminder below to enter the address configuration menu U-Boot 1.4.2--gf4b0786 (Nov 01 2018 - 09:52:06 +0800)
- Page 5 S5860-20SQ SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE ====== Rboot Menu(Ctrl+Z to upper level) ====== Scattered utilities. ************************************************ 0. Tftp utilities. 1. X/Y/ZModem utilities. 2. Run main. 3. SetMac utilities. 4. Scattered utilities. ************************************************ Press a key to run the command: 4 ====== Rboot Menu(Ctrl+Z to upper level) ====== Scattered utilities.
- Page 6 S5860-20SQ SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE 2. Reset 2.1 Networking Requirements (1) After restoring the factory settings, the original configuration will be cleared. If the configuration is more important, please backup the configuration to the local computer first.
- Page 7 S5860-20SQ SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE Enter the set user name and password, execute dir to view the file Switch#delete config.text This operation will delete [flash:/config.text], continue? [Y/N]:y Delete success. Switch# After deleting the configuration file, enter the reload command, when confirming the restart, enter Y, set to restore to the factory settings after restart.
- Page 8 Copyright © 2009-2020 FS.COM AII Rights Reserved.
