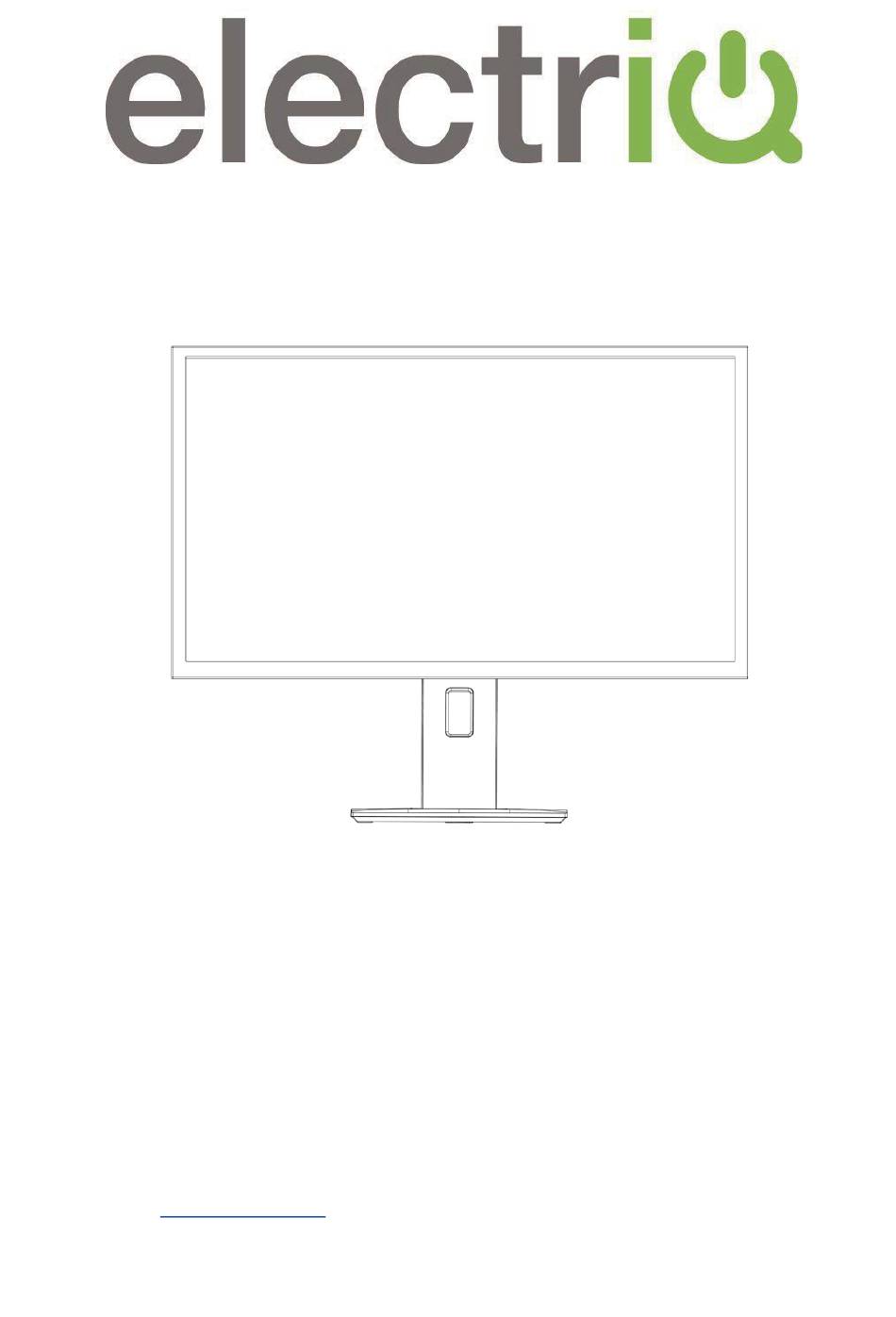

USER MANUAL
28" CURVED LED MONITOR
eiQ-284K144FSGH
Thank you for choosing electriQ
Please read the user manual before using this monitor and keep it safe for future reference Visit
www.electriQ.co.uk
to view our entire range of Intelligent Electricals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eiQ-284K144FSGH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ eiQ-284K144FSGH

Summary of Contents for ElectrIQ eiQ-284K144FSGH

  • Page 1 USER MANUAL 28” CURVED LED MONITOR eiQ-284K144FSGH Thank you for choosing electriQ Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WHATS INCLUDED GETTING STARTED CONNECTIONS MONITOR CONTROLS WALL MOUNTING INITIAL SET UP MENU OPTIONS OSD MENU MULTI DISPLAY PICTURE COLOUR INPUT ADVANCE SETTINGS OTHER ULTRA HDR AUIDO OTHER TECHNICAL SPECIFICATION TROUBLESHOOTING SUPPORT...

  • Page 3: Safety

    SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
  • Page 4 Trying to service the unit yourself is dangerous and may invalidate the product's warranty. Only qualified personnel should service this apparatus. • Do not block ventilation slots on the back cover. The monitor can be placed in a cabinet but ensure at least 5cm (2") clearance all around. Do not tap or shake the screen, this may damage internal components.

  • Page 5: Whats Included

    WHAT’S INCLUDED USER MANUAL POWER SUPPLY POWER CABLE HDMI...

  • Page 6: Getting Started

    CONNECTIONS AVAILABLE ON THE MONITOR DC 24 V HDMI2 HDMI1 AUDIO OUT DC power HDMI 2 HDMI 1 Audio out input WALL MOUNTING The monitor is provided with mounting holes for a VESA approved wall mounting bracket (not supplied). The VESA mounting pattern is: 100x100mm and the size of the screws is 4xM6x10(not supplied) Do not use screws longer than specified or damage will occur to the internal components.

  • Page 7: Initial Set Up

    INTIAL SETUP Connect the monitor to a power outlet. 1. Press the power button on the monitor or to turn it on (The indicator will be blue). 2. Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected.

  • Page 8: Osd Menu

    OSD MENU MUTI DISPLAY Display Mode There are these functions to choose, 1P, 2P, PIP, 2PCR. Select Region There are these functions to choose, Left Side, Full, Right side, 1P. PICTURE Backlight Change the backlight value from 0 to 100. Brightness Change the brightness value from 0 to 100.

  • Page 9: Colour

    COLOUR Gamma There are these functions to choose, off, 2.0, 2.2, 2.4. Colour Temp. There are these functions to choose, 6500, 7500, 9300, user. Colour Effect There are these functions to choose, standard, user, game, vivid, Colour Format There are these functions to choose, Y/U/V, R/G/B. There are these functions to choose, native, user, adobe RGB, SRGB, native.

  • Page 10: Advance Settings

    ADVANCE SETTINGS Aspect Ratio There are these functions to choose, full, enlarge, reduce, 1:1, 5:4. Over Drive Change the over drive value from 0 to 100. Off and On DCR. MPRT Off and On MPRT. Free Sync2 Off and On Free Sync2. OTHER Menu Time Change the menu time value from 0 to 100.

  • Page 11: Ultra Hdr

    ULTRA HDR Off and On HDR. Dark Enhance Off and On dark enhance. Sharp Enhance Off and On sharp enhance. HDR Contrast Change the HDR contrast value from 0 to 100. Colour Enhance Off and On colour enhance. Light Enhance Off and On light enhance.

  • Page 12: Osd

    SPECIFICATION eiQ-284K144FSGH Panel Type 28” (16:9) LED Backlit Monitor Panel Dimensions 620.9mm Diagonal Case Type Matte Black Best Resolution 3840(H)x2160(V)@144Hz Active Display Area 620.928(H)×341.28(V) Pixel Pitch 0.1617(H)×0.158(V) Contrast Ratio 1000:1 Typical Brightness 300 cd/m² Response Time 1ms MPRT Viewing Angle 170°/160°...

  • Page 13: Other

    Please contact the local council for details of your local household waste recycling centers electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
