CoolGear USBG-7U3ML-PCBA Installation Manual

CoolGear USBG-7U3ML-PCBA Installation Manual

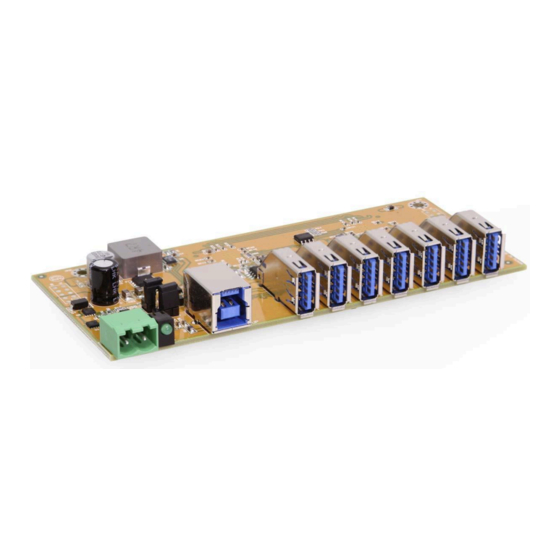

7-port usb3.0 metal hub w/surge protection and din rail mounting kit

Advertisement

Quick Links

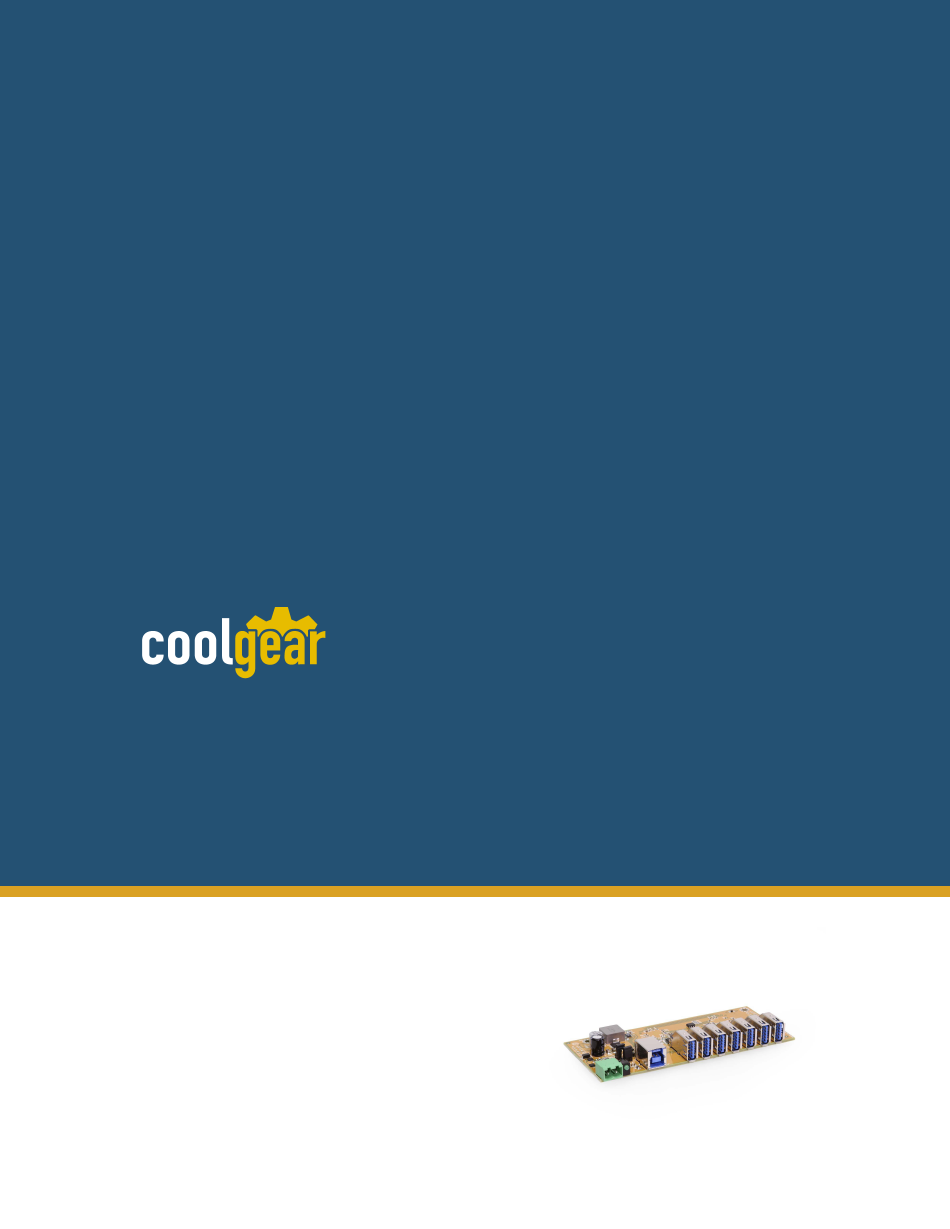

7-Port USB3.0 Metal Hub
w/Surge Protection and DIN RAIL Mounting Kit
Model Number:
USBG-7U3ML-PCBA
Installation Guide
Coolgear, Inc.
Version: 1.0
Date: 04/08/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the USBG-7U3ML-PCBA and is the answer not in the manual?

Questions and answers

Summary of Contents for CoolGear USBG-7U3ML-PCBA

  • Page 1 7-Port USB3.0 Metal Hub w/Surge Protection and DIN RAIL Mounting Kit Model Number: USBG-7U3ML-PCBA Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/08/2024...
  • Page 2 First Release 1. Introduction Thank you for purchasing Coolgear’s 7-Port USB3.0 Metal Hub. It provides an ideal solution to expand 7 USB3.0 ports from one single USB3.0 host port. It provides a wide range self power source (+7~24VDC from 2-pin Terminal Blocks) to provide enough power on USB3.0 buses.
  • Page 3: Hardware Installation

    Since the USB hub is plug-and-play, you don’t have to turn off your host computer when installing the hub. Connect the USB devices to the downstream ports of this hub. Mount your hub on the wall or DIN RAIL if required. Need help? Visit: coolgear.com/support...
  • Page 4: Environmental Specifications

    Double click Generic USB Hub, the message will show that this device is working properly. 5. Environmental Specifications Operating temp.: 0 to 55°C (32 to 131°F) Operating humidity: 5 to 95% RH Dimensions (LxWxH): 6.37”(L)x2.60”(W)x1.42”(H) (16.20x6.60x3.61 cm) Need help? Visit: coolgear.com/support...
  • Page 5 Within Every Great Machine For over 20 years our rugged, off-the-shelf USB hubs, chargers, and serial products are ready to go for your next project. Based in the US, Coolgear has successfully engineered and deployed millions of connectivity solutions into industrial, medical, automotive, commercial, and aerospace industries.
  • Page 6 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
