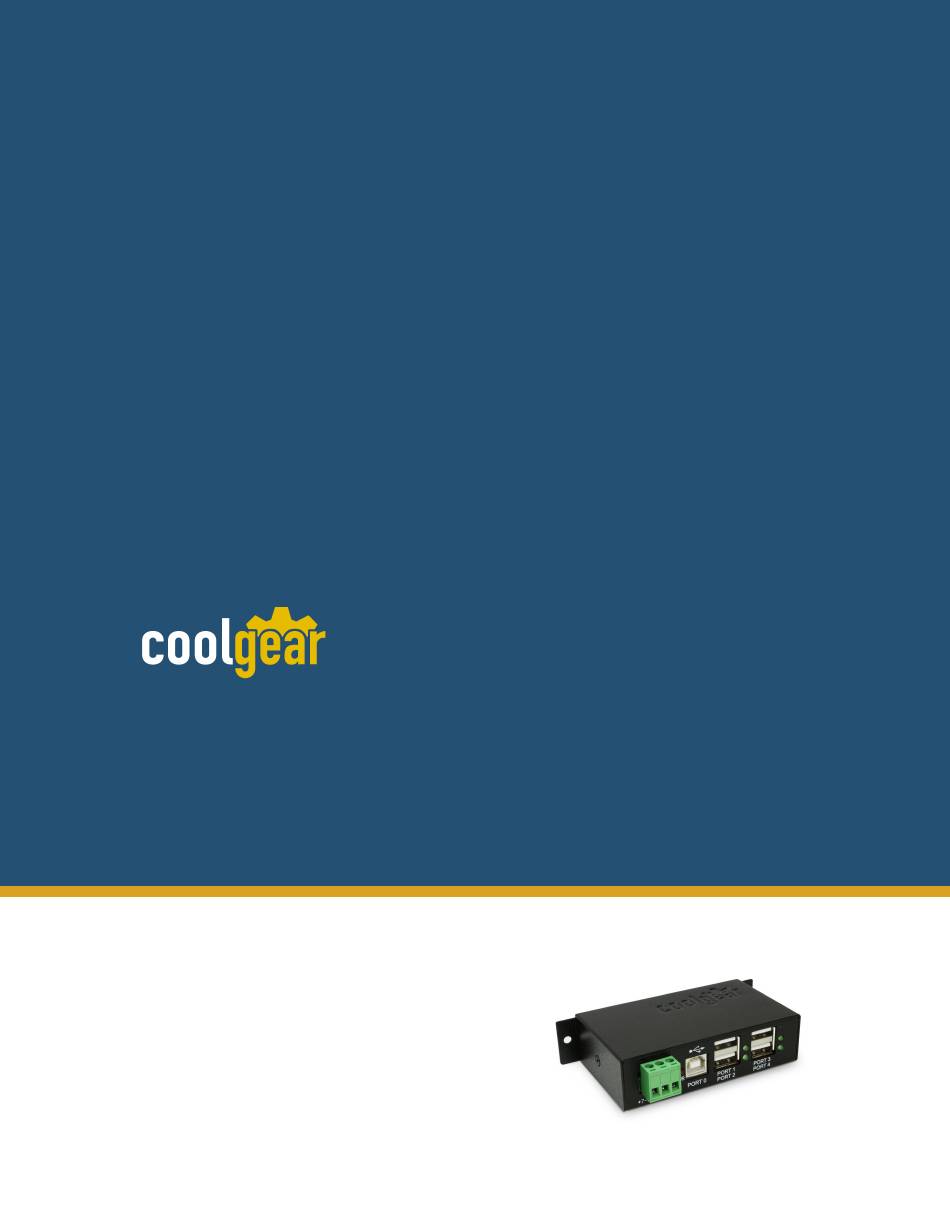

- Page 1 4-Port USB2.0 Metal Hub w/ DIN RAIL Mounting Kit Model Number: USBG-4U2ML Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/03/2024...
- Page 2 First Release 1. Introduction Thank you for purchasing Coolgear’s 4-Port USB2.0 Metal Hub. Thank you for purchasing this high-speed 4-port USB2.0 hub. It provides an ideal solution to expand 4 USB2.0 ports from one single USB2.0 host port. It provides a self power source (+7~24VDC from 3-pin Terminal Blocks) to provide enough power on USB2.0 buses.
-
Page 3: Connector Layout
Apply DC power (range from +7V to 24V) to the 3-pin Terminal Block Connector. The hub was bus-powered by the upstream USB port, this terminal block connector is to add power to ensure enough power for the 4 downstream ports. Need help? Visit: coolgear.com/support... -
Page 4: Check The Installation
4. Check the Installation To check the USB hub installation in Windows device manager, please follow the following steps: Click Start Click Control Panel Click System Click Device Manager button Double click Universal Serial Bus Controller Need help? Visit: coolgear.com/support... -
Page 5: Environmental Specifications
Do not disassemble the product. Handling the product’s ● internal components can expose it to ESD (Electro-Static Discharge) hazards that can affect the function of the device. If this product is not functioning properly, email our support ● team at support@coolgear.com. Need help? Visit: coolgear.com/support... - Page 6 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
