7-Port USB2.0 Hub with Metal Case

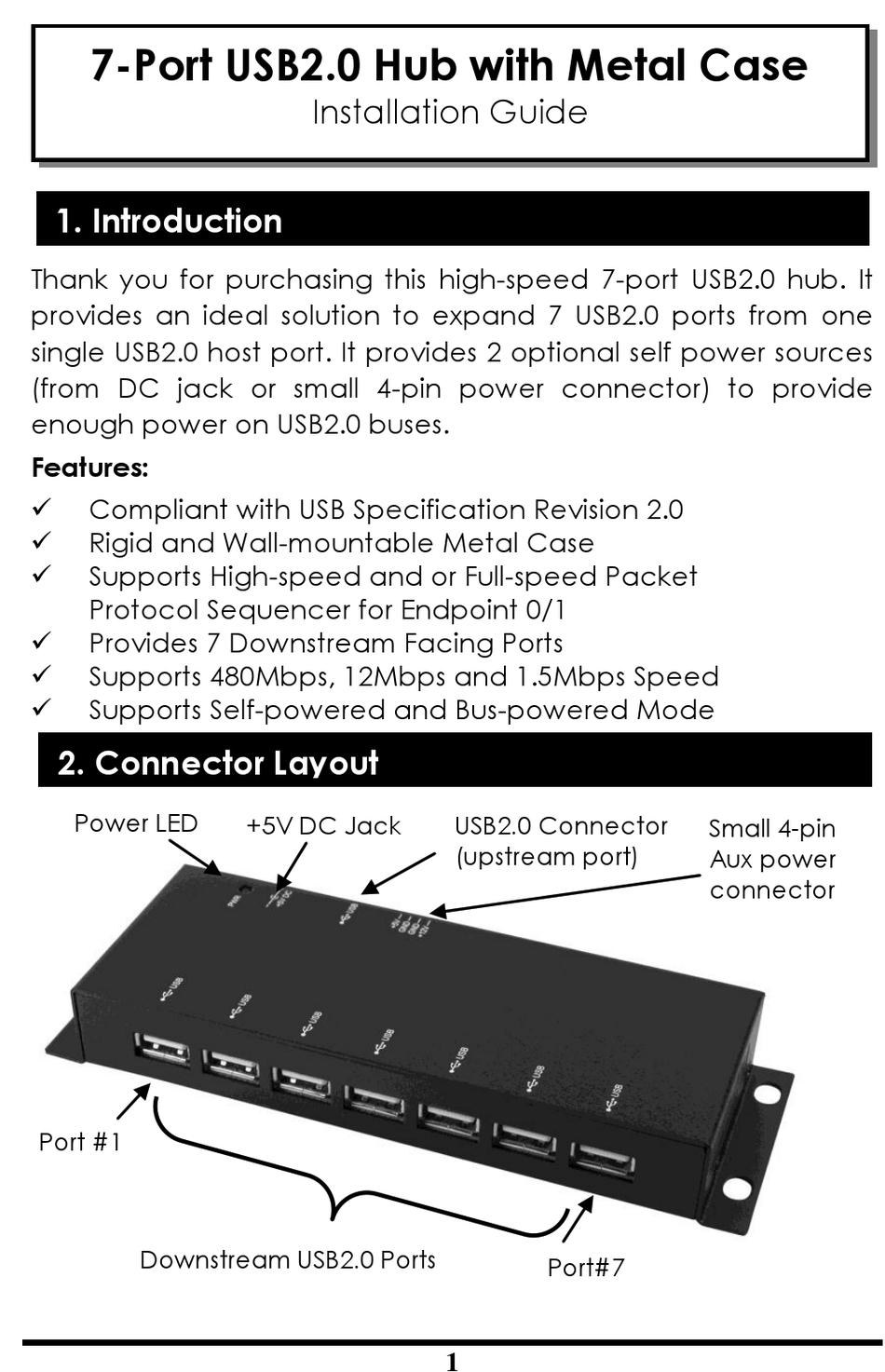

1. Introduction
Thank you for purchasing this high-speed 7-port USB2.0 hub. It
provides an ideal solution to expand 7 USB2.0 ports from one
single USB2.0 host port. It provides 2 optional self power sources
(from DC jack or small 4-pin power connector) to provide
enough power on USB2.0 buses.
Features:
Compliant with USB Specification Revision 2.0
Rigid and Wall-mountable Metal Case
Supports High-speed and or Full-speed Packet
Protocol Sequencer for Endpoint 0/1
Provides 7 Downstream Facing Ports
Supports 480Mbps, 12Mbps and 1.5Mbps Speed
Supports Self-powered and Bus-powered Mode
2. Connector Layout
Power LED
Port #1
Downstream USB2.0 Ports
Installation Guide
+5V DC Jack
USB2.0 Connector
(upstream port)
Port#7
1
Small 4-pin
Aux power
connector
