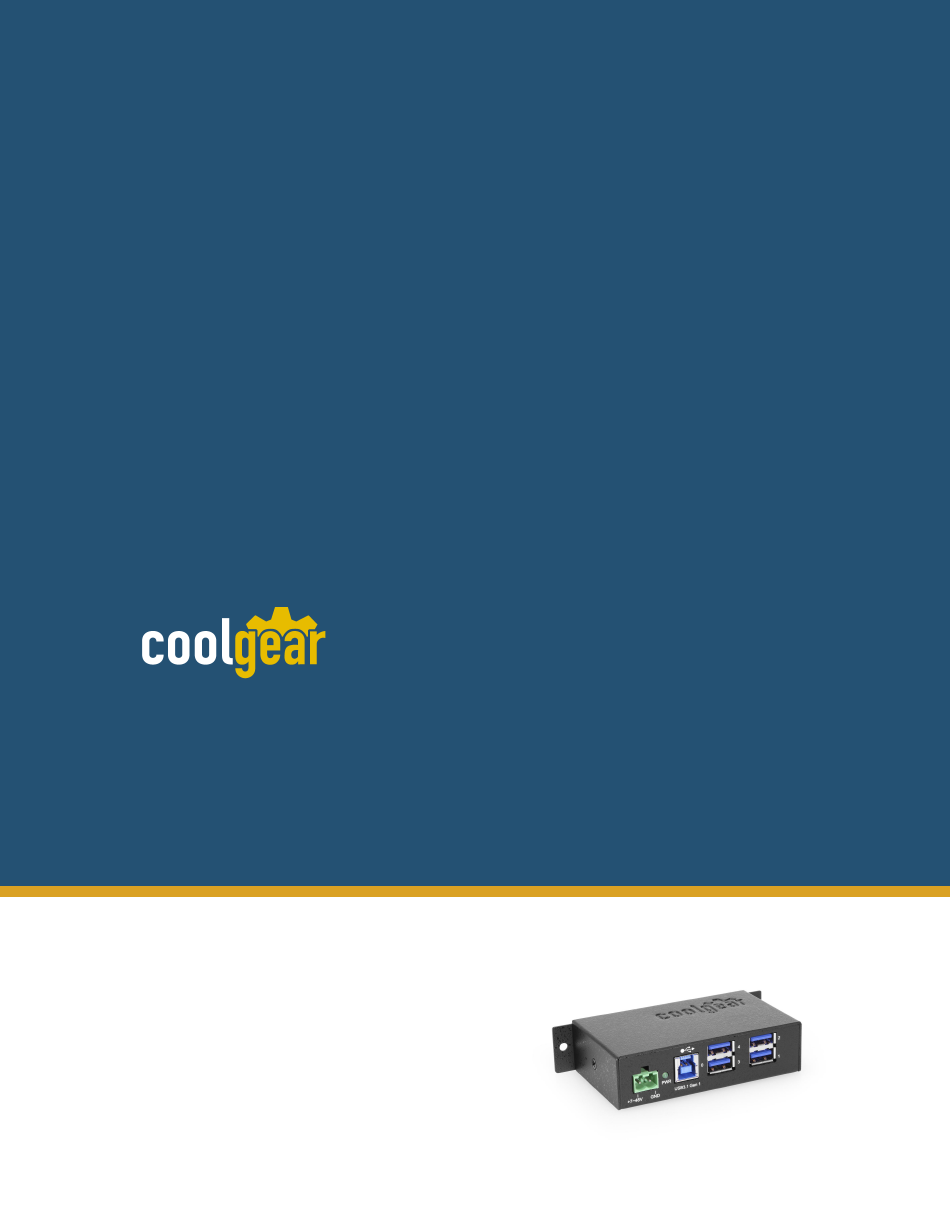

- Page 1 4-Port USB3.1 Gen 1 Metal Hub w/ DIN RAIL Mounting Kit Model Number: USBG-4U3MLR2 Installation Guide Coolgear, Inc. Version: 1.0 Date: 04/09/2024...
-
Page 2: Connector Layout
First Release 1. Introduction Thank you for purchasing Coolgear’s 4-Port USB3.1 Gen 1 Metal Hub. Thank you for purchasing this Super-speed 4-port USB3.1 Gen 1 hub. It provides an ideal solution to expand 4 USB3,1 ports (USB-A connectors) from one single USB3.1 host port. It provides a self power input (+7~48V DC from 2-pin Terminal Blocks) to provide enough power on USB3.1 downstream facing ports. -
Page 3: Hardware Installation
It will NOT affect your USB function. Connect the USB devices to the downstream ports of this hub. Mount your hub on the wall or DIN RAIL if required. Need help? Visit: coolgear.com/support... -
Page 4: Checking The Hub Installation
Double click Generic USB Hub, the message will show that this device is working properly. 5. Environmental Specifications Operating temp.: 0 to 55°C (32 to 131°F) Operating humidity: 5 to 95% RH Dimensions (LxWxH): 4.50”(L)x2.26”(W)x1.03”(H) (11.45x5.73x2.63 cm) Need help? Visit: coolgear.com/support... - Page 5 Technical Support When you reach out to Coolgear support, you’ll find yourself in the hands of a solution-oriented and knowledgeable expert ready to answer whatever question you throw at them. If you ever need help with your product, visit coolgear.com/support for support tickets, downloads, and other support resources.
- Page 6 (iv) normal wear and tear; (v) damage to or loss of repaired or replaced Products during shipping by Coolgear except when such damage or loss is caused by poor or inadequate packaging by Coolgear; or (vi) Products purchased outside the United States.
