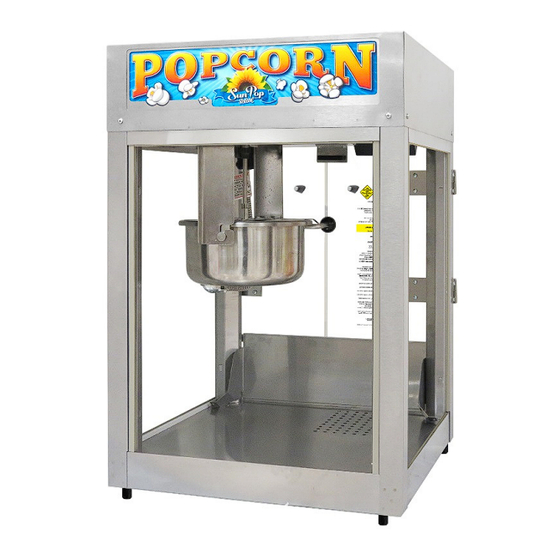

- Page 1 Instruction Manual ® Sun Pop Select and SunnyPop Model No. 2387-00-010, 2389-00-010 2387-00-012, 2389-00-012 Sun Pop Select Model 2387-00-010 SunnyPop Model 2387-00-012 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2015 Gold Medal Products Co. Part No. 110109...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Installation Instructions
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 5 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. Place the unit on a sturdy, level base. 3. The Popper must be installed with a minimum 6” clearance 4.
-
Page 6: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... -
Page 7: Controls And Their Functions
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 OPERATING INSTRUCTIONS Controls and Their Functions KETTLE HEAT SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the heating elements in the popping kettle. The green switch light ON indicates there is power to the kettle heating element. -
Page 8: Amount Of Popcorn And Oil
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Popping Corn This section describes instructions for popping Standard (salted popcorn). Amount of Popcorn and Oil Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. -
Page 9: Care And Cleaning
To avoid serious burns, DO NOT touch the kettle while it is hot! 028_020314 2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 10 DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No.
-
Page 11: Filter Cleaning Instructions
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Filter Cleaning Instructions Your popcorn machine is equipped with an efficient and durable filtration system. The filter should be cleaned every 1-2 weeks to maintain maximum efficiency. Follow the steps below for proper filter cleaning: Step 1: The filter is located on the inside of the popcorn machine directly... -
Page 12: Troubleshooting
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Troubleshooting Issue Possible Cause Solution Kettle Does Not Heat A. Power to Unit A. Make sure the lead-in cord is plugged in. B. Power to the Kettle B. Make sure the kettle lead-in cord is plugged in. C. - Page 13 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Issue Possible Cause Solution Kettle Agitator Shaft not A. Kettle Motor Switch A. If the kettle agitator shaft is not rotating, Rotating DO NOT pop corn. Make sure the Kettle Motor Switch is ON.
-
Page 14: Maintenance Instructions
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 15: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 16: Replacing Broken Glass
2387-00-012, 2389-00-012 Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop and always purchase tempered glass. 1. Remove all loose pieces of glass. - Page 17 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Kettle Assembly Parts Breakdown – 56000 (6 oz.), 58000M (8 oz.) 56000 Shown Complete Agitator Assembly (Includes Lids) Kettle Model 56000 shown * See Parts List note. 18, 16 Complete Agitator Assembly (Includes Lids) Complete Kettle Bottom Assembly includes...
- Page 18 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Kettle Assembly Parts List – 56000 (6 oz.), 58000M (8 oz.) Part Number Item Part Description 56000 58000M ACORN NUT 47702 47702 8-32 X 1/2 PHIL PAN M/S 47141 47141 KETTLE SHELL...
- Page 19 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Cabinet Exterior – Front View See Lighted Sign Section For Glass Panels, See Kettle see Replacing Assembly Glass section. Section 5, 6 Model 2387-00-010 shown Item Part Description Part No.
- Page 20 Safety Labels Section 10, 11 * CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly Model 2387-00-010 shown qualified persons in order to avoid a hazard. Item Part Description Part No.
- Page 21 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47055) Hardware Kit (P/N 47054) (contains all parts shown above) (contains all parts shown above) Part Number Item...
- Page 22 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Cabinet Interior – Controls View 11*, 12 Data Plate For Labels, see Safety Labels section. Model 2387-00-010 shown Item Part Description Part No. SMALL SWITCH BOX 48501 SMALL SWITCH LABEL 48502 GREEN LIGHTED ROCKER SWITCH 42798...
- Page 23 Cabinet Bottom – Corn Pan Element View 2552 Image * CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. See Labels 6, 7 General image used for parts reference only.
-
Page 24: Motor Plate Assembly
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Motor Plate Assembly 2552- 00- 010 Image 10, 11 See Controls View General image shown for reference. Item Part Description Part No. LIGHT SHIELD CONICAL 40589 LAMP HOLDER 47047 BLOWER PLUG AND CORD 47199... - Page 25 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Lighted Sign Assembly SunPop Select Light Box Assembly (111422) – Front View SunnyPop Light Box Assembly (111503) – Front View 12, 13 Light Box Assembly - Rear View Part Number Item Part Description...
-
Page 26: Safety Labels
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Safety Labels Unit Labels Kettle Lead In Label Power Cord Labels Item Part Description Part No. COATED BULB LABEL 42948 UNIVERAL POPPER DECAL 41019 MAIN GROUND LABEL 42375 SURFACE CONTACT WARNING 87087 POWER OFF LABEL... - Page 27 SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Accessories Item Part Description Part No. STAMPED ALUMINUM SCOOP 2071 6.5 CC MEASURE 47678 6 OZ MEASURE 49049 gmpopcorn.com Page 27...
-
Page 28: Wiring Diagram
SunPop Select Model No. 2387-00-010, 2389-00-010 and SunnyPop Model No. 2387-00-012, 2389-00-012 Wiring Diagram Models 2387 Series, 2389 Series gmpopcorn.com Page 28... - Page 29 © 2015 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
