INSTALLATION AND OPERATING INSTRUCTIONS

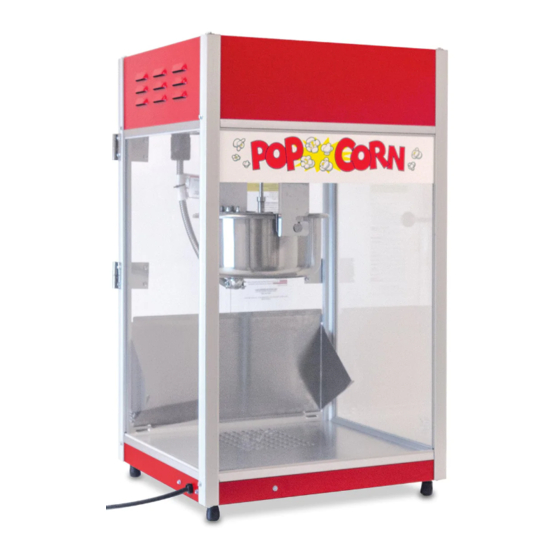

Econo 8
CHECKING SHIPMENT
Unpack all cartons and check thoroughly for any damage which might have occurred in transit. Damage
claims should be filed immediately with the transportation company
ELECTRICAL REQUIREMENTS
2388: 120V, 60Hz, 1525W
2388EX: 230V, 50Hz 1525W
If in doubt, your electrician must furnish sufficient power for proper machine operation. We recommend
this popper be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to
safety concerns, and may cause sacrificed and/or reduced performance.
INSTALLATION
Your Econo 8 Popper was adjusted, inspected, and tested before it left the factory. Remove all packing
before setting up your new Econo 8. Hang the kettle on the hanger assembly attached to the celling of
your Econo 8. Finally, make sure to plug the power cord into the power receptacle located on the celling
of your popper.

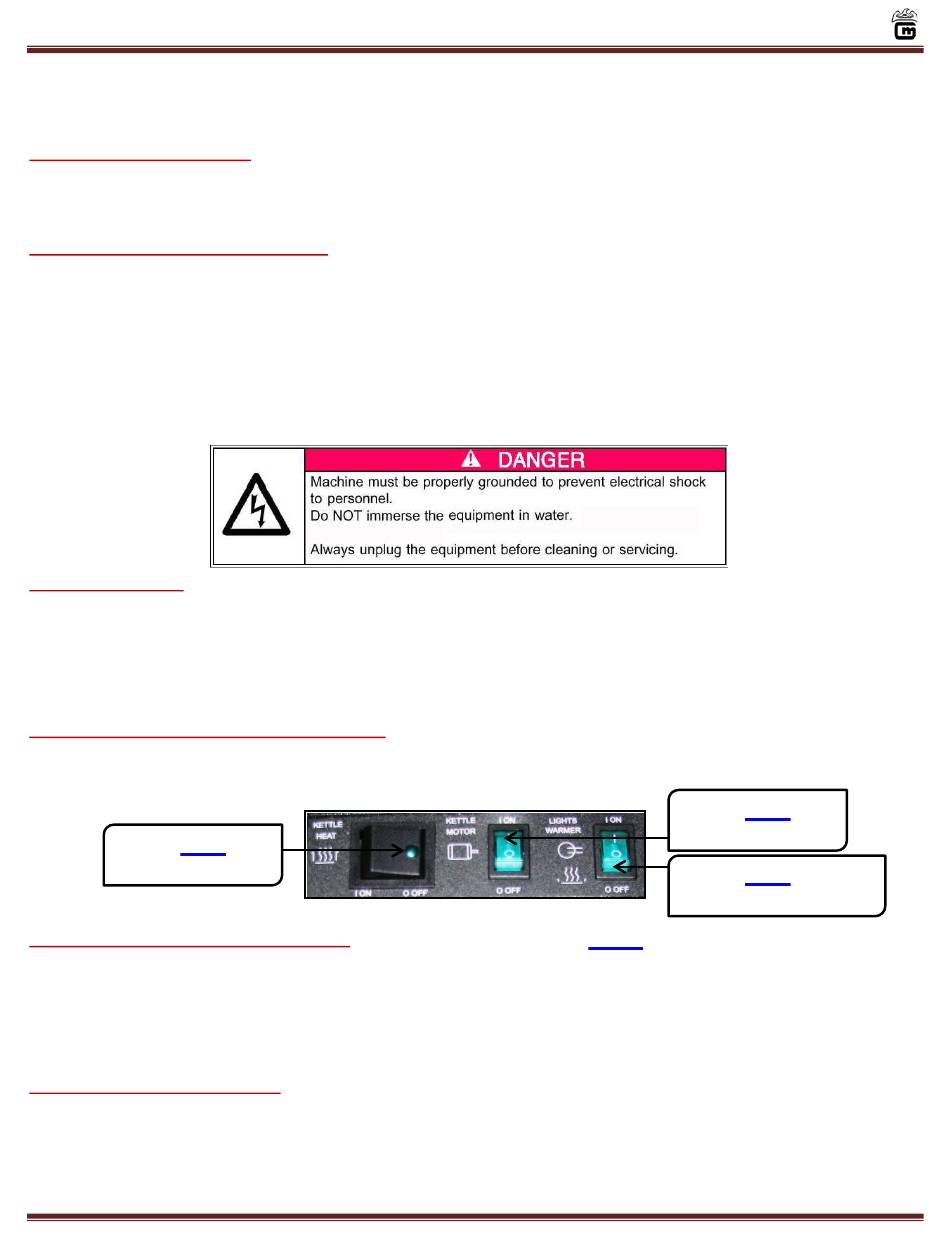

CONTROLS AND THEIR FUNCTIONS
LIGHT AND WARMER SWITCH – Turns on the heat to the bottom corn pan and heat light.
KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH – Turns on the heat element
Kettle Heat Switch
Part No.
42798
AMOUNT OF POPCORN AND OIL
Your new Econo 8 is equipped with a corn measuring cup (Part No.47147).
Corn charge – 8 oz.
Oil charge – 2.4 oz.
Flavacol – 1 1/2 teaspoon
POPPING INSTRUCTIONS
1. Turn Kettle Heat and Kettle Motor switch on.
2. Make a test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle.
3. When the 3 kernels have popped, load the kettle with corn and oil charge.
4. When corn has popped, dump the kettle.
5. Repeat cycle starting with step number 3 above; always pop 3-5 batches for best popcorn.
http://www.gmpopcorn.com
Model No. 2388, 2388EX
Gold Medal®
(1)
.
Products Company's recommendation that this
Kettle Motor Switch
Part No.
42532
(2)
Light And Warmer Switch
Part No.
42532
(2)
Page 3
