Introduction; Features - AXIOMTEK CEM710 User Manual

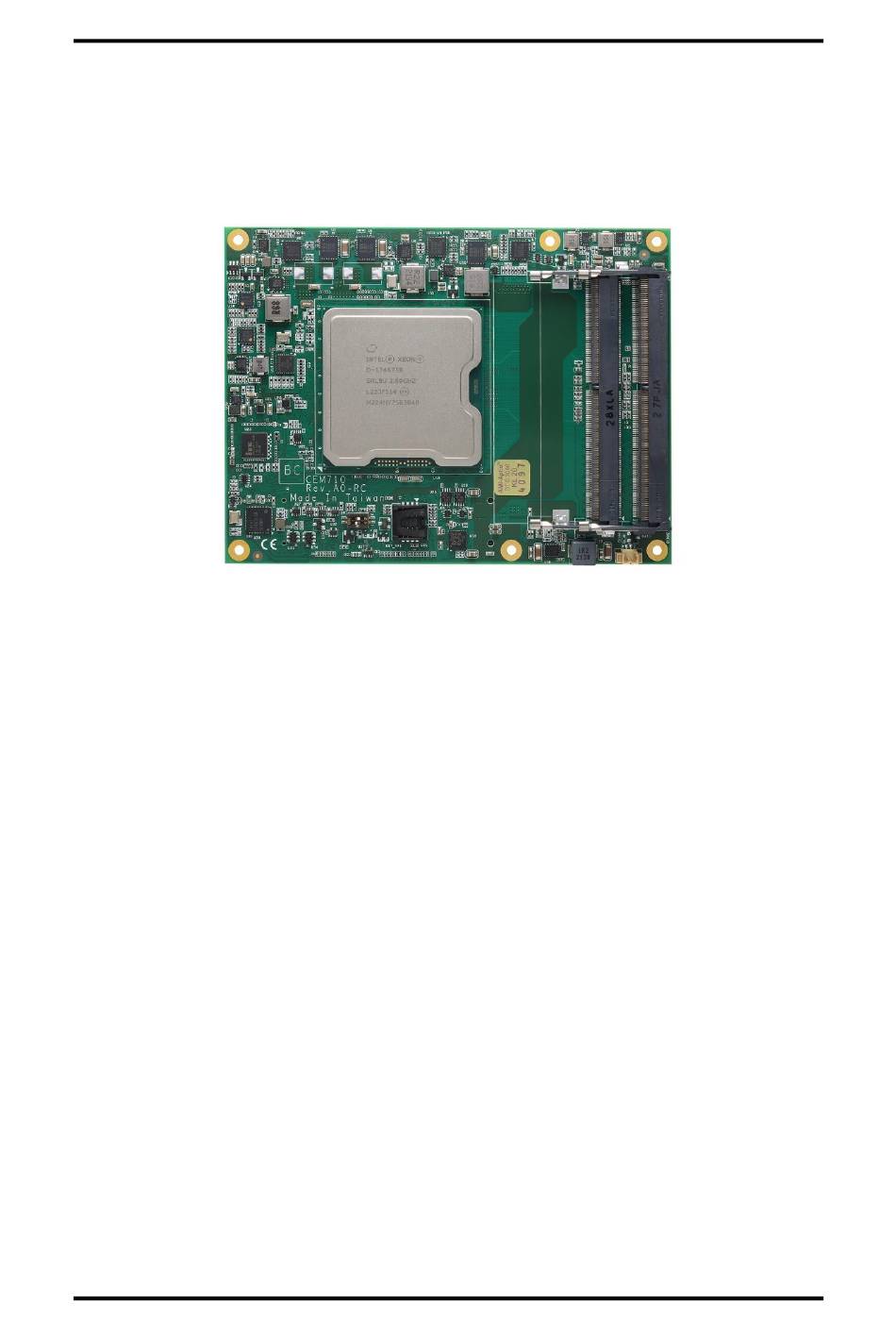

The Axiomtek CEM710 is a COM Express
processors (formerly ICE LAKE D LCC) which compatible to PICMG COM.0
specification and support dual cores or multi cores (up to 20 cores).The CEM710 was
designed for customer who need high computing performance and balanced power
consumptions for entry networking, micro servers or various applications.
1.1

Features

Xeon D
®
®
⚫ Intel BGA processors
⚫ 2 DDR4 SO-DIMMs (64GB max/SO-DIMM) with ECC support
⚫ ®
1 Intel I226 2500/1000/100/10Mbps supports Wake-on-LAN, PXE Boot ROM, NCSI
⚫
4 10Gbe KR interfaces support NCSI
⚫ 4 USB 3.2 Gen.1 ports
⚫ 4 USB 2.0 ports
⚫ 2 SATA-600
⚫ Support 32 Lanes of PCI-Express
⚫ TPM 2.0
⚫
4 GPO / 4 GPI (Open-Dain 3.3V)
2
⚫ 1 I C
⚫ 1 SMBUS
⚫ 1 SPI
⚫ 1 LPC
⚫ Watchdog Timer: 65536 levels, 65535 secs

Introduction

CEM710 COM Express
Introduction
TM Type 7 Basic Module powered by Intel
TM Type 7 Module
Section 1
® Xeon D
Rev 3.0
®
1
