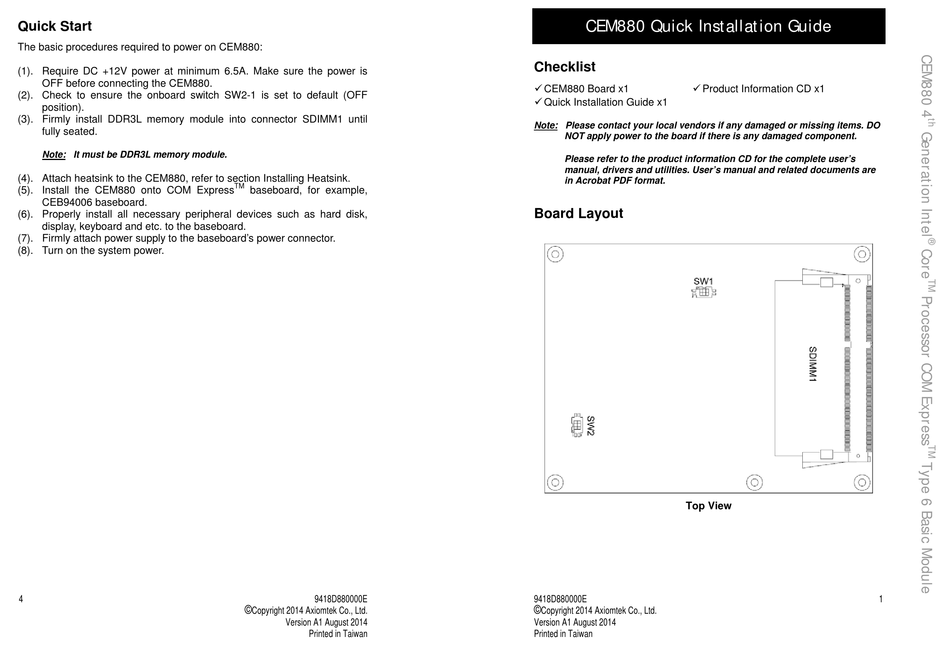

Quick Start
The basic procedures required to power on CEM880:
(1). Require DC +12V power at minimum 6.5A. Make sure the power is
OFF before connecting the CEM880.
(2). Check to ensure the onboard switch SW2-1 is set to default (OFF
position).
(3). Firmly install DDR3L memory module into connector SDIMM1 until
fully seated.
Note: It must be DDR3L memory module.
(4). Attach heatsink to the CEM880, refer to section Installing Heatsink.
(5). Install the CEM880 onto COM Express
CEB94006 baseboard.
(6). Properly install all necessary peripheral devices such as hard disk,
display, keyboard and etc. to the baseboard.
(7). Firmly attach power supply to the baseboard's power connector.
(8). Turn on the system power.
4
TM
baseboard, for example,
9418D880000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 August 2014
Printed in Taiwan
CEM880 Quick Installation Guide
Checklist
CEM880 Board x1
Product Information CD x1
Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information CD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.
Board Layout
Top View
9418D880000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 August 2014
Printed in Taiwan
1
