AXIOMTEK CEM520 Quick Installation Manual

Quick Start
The basic procedures required to power on CEM520:
(1). Make sure the power is OFF before connecting the CEM520.
(2). Check to ensure the onboard switch SW1-1 and SW1-2 are set to
default (OFF position).
(3). Firmly install DDR4 SO-DIMM in DIMM1/DIMM2 until fully seated. For
single memory channel configuration, install memory module in
channel 0 (DIMM1) DDR4 SO-DIMM socket. For dual memory
channel configuration, install memory modules of the same size, chip
width, density and rank in both channel 0 (DIMM1) and channel 1
(DIMM2) DDR4 SO-DIMM sockets.
(4). Attach heatsink to the CEM520, refer to section Installing Thermal
Solution.
(5). Install the CEM520 onto COM Express
CEB94011 baseboard.
(6). Properly install all necessary peripheral devices such as hard disk,
display, keyboard and etc. to the baseboard.
(7). Firmly attach power supply to the baseboard power connector.
(8). Turn on the system power.
(9). Press power button on the baseboard to start CEM520.
4
TM
baseboard, for example,
©
Copyright 2020 Axiomtek Co., Ltd.
Version A2 July 2020
Printed in Taiwan
CEM520 Quick Installation Guide
Checklist
CEM520 Board x1
Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
For user manual, drivers, certificates and technical
support, please visit our product website or scan
QR code.
http://www.axiomtek.com.tw/Default.aspx?Men
uId=Products&FunctionId=ProductView&ItemId
=25364&C=CEM520&upcat=332

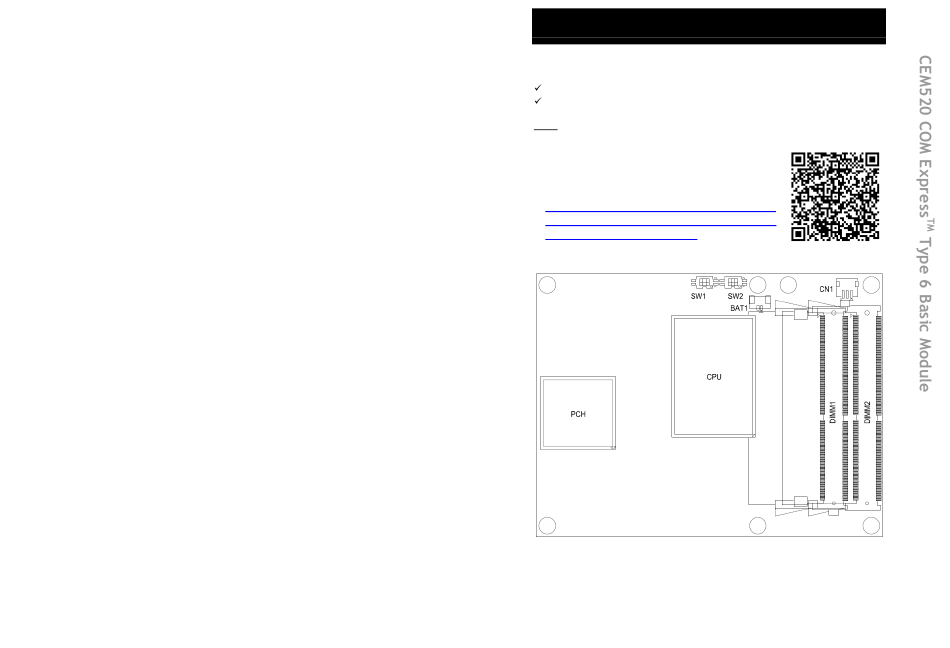

Module Layout

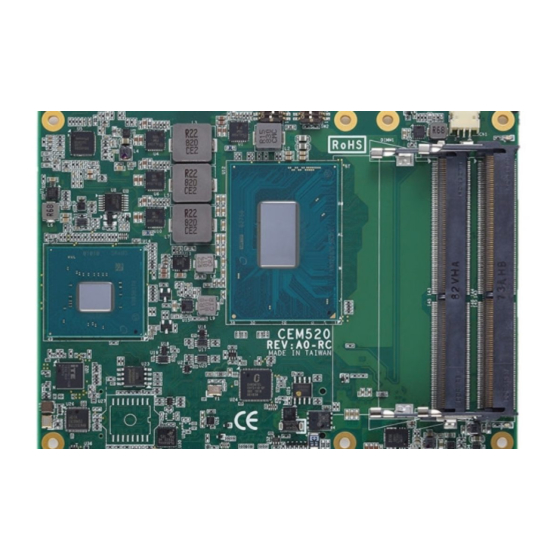

Top View
©
Copyright 2020 Axiomtek Co., Ltd.
Version A2 July 2020
Printed in Taiwan
1
