AXIOMTEK CEM881 Quick Installation Manual

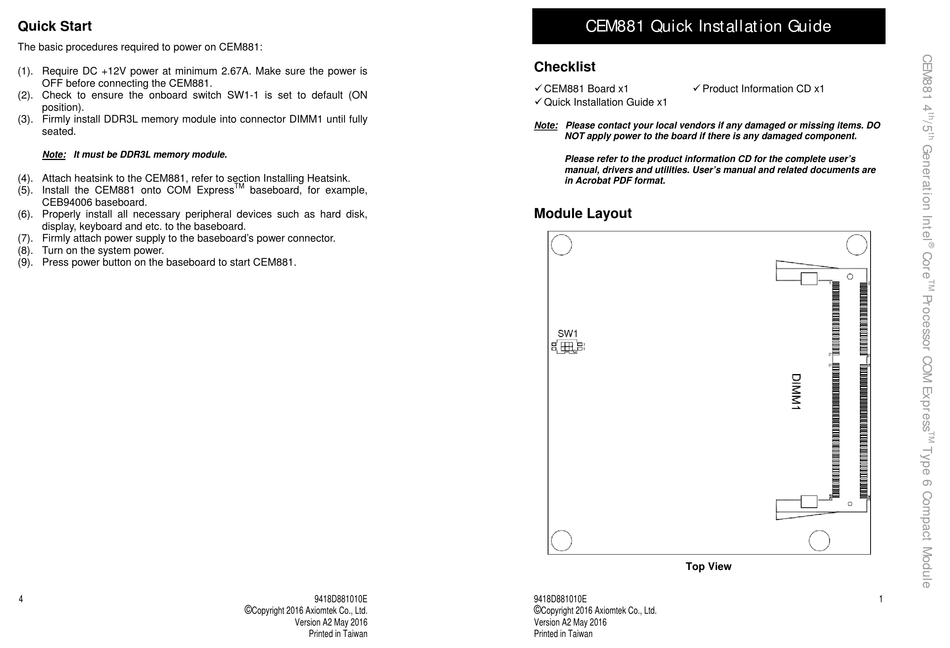

Quick Start
The basic procedures required to power on CEM881:
(1). Require DC +12V power at minimum 2.67A. Make sure the power is
OFF before connecting the CEM881.
(2). Check to ensure the onboard switch SW1-1 is set to default (ON
position).
(3). Firmly install DDR3L memory module into connector DIMM1 until fully
seated.
Note: It must be DDR3L memory module.
(4). Attach heatsink to the CEM881, refer to section Installing Heatsink.
(5). Install the CEM881 onto COM Express
CEB94006 baseboard.
(6). Properly install all necessary peripheral devices such as hard disk,
display, keyboard and etc. to the baseboard.
(7). Firmly attach power supply to the baseboard's power connector.
(8). Turn on the system power.
(9). Press power button on the baseboard to start CEM881.
4
TM
baseboard, for example,
9418D881010E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A2 May 2016
Printed in Taiwan
CEM881 Quick Installation Guide
Checklist
 CEM881 Board x1  Product Information CD x1
 Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Please refer to the product information CD for the complete user's
manual, drivers and utilities. User's manual and related documents are
in Acrobat PDF format.

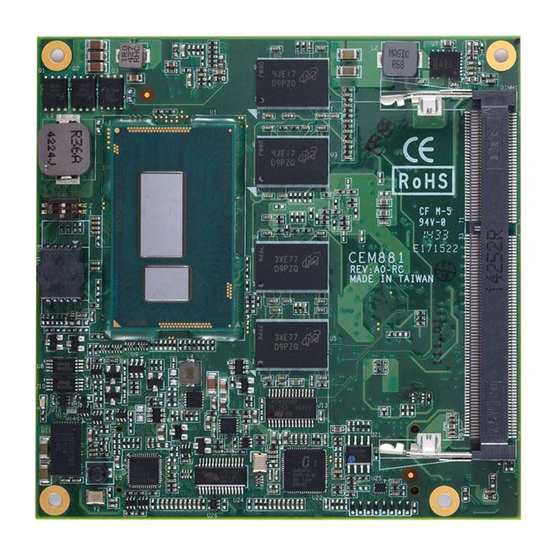

Module Layout
Top View
9418D881010E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A2 May 2016
Printed in Taiwan
1
