QUICK START GUIDE
FEATURES:
• 1/2.7" 4.0 MegaPixel CMOS Image Sensor
• Max Resolution: 4MP (2560 × 1440)
• H.265/H.264 Video Compression
• XD-DNR (Digital Noise Reduction)
• Supports WiFi with 2.4GHz ~ 2.4835 GHz Frequency Range & 20MHz Ch.
Bandwidth (260' WiFi Range)
• Digital WDR
• Highlight Correction, Backlight Correction
• Matrix IR with up to 100' (30m) IR Range
• Built-in MicroSD Card Slot for Local Recording up to 128GB
• P2P Function Optional
• Supports Triple Streaming
• Remote Viewing via VMS, IE (Plug-in Required), Edge, iOS & Android Apps
• Programmable Analytics: Object Removal, Video Exception, Line Crossing and Intrusion
Detection
• IP67 Ingress Protection
• Wall Mount Included and Optional Junction Box (VT-TJB08),
and Pole and Corner Mounting Adapters Available (See pg. 11)
• DC12V / PoE power supply
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation
of audio surveillance.

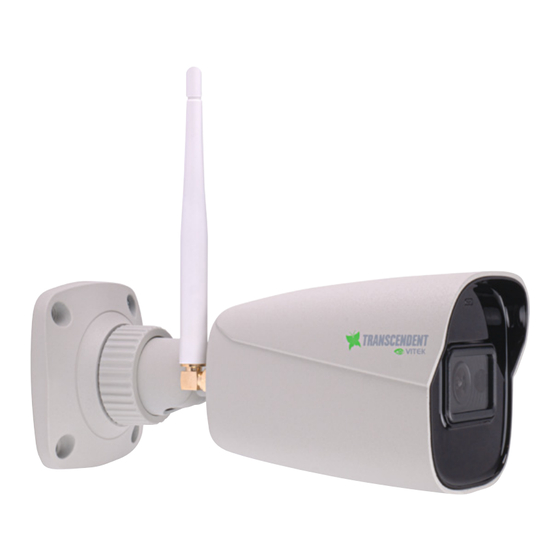

VTC-TNB4FW-2
VITEK OnAlert Series 4MP WiFi
VITEK OnAlert Series 4MP WiFi
H.265 IP Bullet Camera
H.265 IP Bullet Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
ON
ALERT
WIFI ENABLED
Advertisement
Table of Contents
Related Manuals for Vitek TRANSCENDENT OnAlert Series
Summary of Contents for Vitek TRANSCENDENT OnAlert Series
- Page 1 VTC-TNB4FW-2 VITEK OnAlert Series 4MP WiFi VITEK OnAlert Series 4MP WiFi H.265 IP Bullet Camera H.265 IP Bullet Camera QUICK START GUIDE ALERT WIFI ENABLED FEATURES: • 1/2.7” 4.0 MegaPixel CMOS Image Sensor • Max Resolution: 4MP (2560 × 1440) •...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Plastic Plugs Screws Network Coupler Antenna Mini Wrench Overview Locking Ring Power Cable Mounting Base MicroSD Card Slot Network Cable Reset Cable Connections First connect the Weather Resistant Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. -
Page 3: Installation
Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: MicroSD Card Installation: Remove the plastic cover (a) from the camera, then loosen the two screws on (b). Remove (b) and insert card before re-installing (b) and (a). - Page 4 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the cables through the mounting base) according to the drill template. 2.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. The browser will download the Active X control. After downloading the Active X control, a login window will pop up as shown below: Input the user name and password to log in.
-
Page 7: Wan Configuration
2. Open the Browser and input the default address of IP-CAM and confirm. The browser will download the Active X control. 3. After downloading the Active X control, a login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. -
Page 8: Setting Up Wi-Fi Connection
Setting Up Wi-Fi Connection The way to connect Wi-Fi is as follows: 1. Use a network cable to connect the camera and wireless router or AP. 2. Connect to the above wireless network with your PC. Then run the IP-Tool on your PC and then find the IP address of the camera. - Page 9 After that, select “Obtain an IP address automatically” or manually enter the IP address by clicking “Use the following IP address”. Then click “Save” to save the settings. 4. Pull the network cable out of the camera. 5. Run the IP-Tool and find the camera through IP address or MAC address.
- Page 10 VTC-TNB4FW-2: DETAILED SPECIFICATIONS Image Sensor 1/2.7” Progressive Scan CMOS Image Size 2560 × 1440 Electronic Shutter 1s ~ 1/100000s Min. Illumination 0.011 lux @F1.2, AGC ON, 0 lux with IR / 0.04 lux @ F2.2, AGC ON, 0 lux with IR Lens Fixed 2.8mm @F2.0, Horizontal FoV: 110°, Vertical FoV: 77.6°, Diagonal FOV: 117°...
- Page 11 SUGGESTED ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB4FW-2 VT-TPLMT VT-TCNMT VT-TJB08 Transcendent Transcendent Optional Junction Box Universal Pole Universal Corner Mount - Ivory, Mount - Ivory, reqs. VT-TJB08 reqs. VT-TJB08 8.47” 6.43”...
- Page 12 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with Programmable Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 13 Also Consider Vitek NDAA Compliant Wireless Bridge Products to Reduce Costly Cable Installation! VT-WB1150, VT-WB2150, and VT-WB5900 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, High Speed Transmission, and Point-to-Multi- Point (P2MP) Topology VT-WB1150...
-
Page 14: Limited Product Warranty
LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
