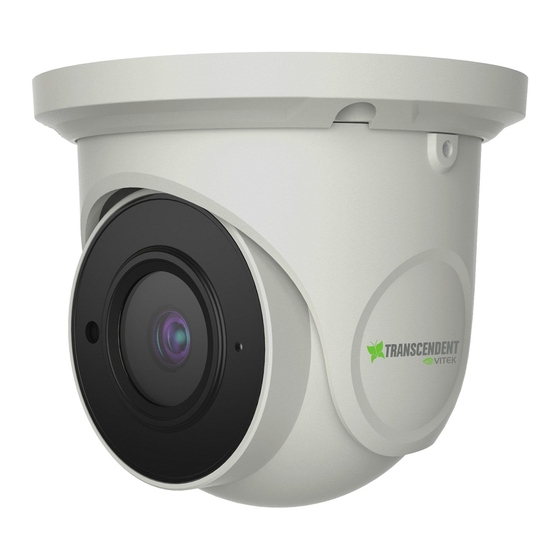

Vitek Transcendent Series Quick Start Manual
8 megapixel 4k indoor / outdoor wdr ip fixed turret camera
Hide thumbs
Also See for Transcendent Series:
- Quick start manual (16 pages) ,
- Manual (12 pages) ,
- Installation manual (3 pages)
Table of Contents
Advertisement
Quick Links
QUICK START GUIDE
FEATURES:
• 1/2.7" 8.0 Megapixel [4K] CMOS Image Sensor
• Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP (2592
×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
• 2.8mm Fixed Iris Lens
• 1 Matrix IR with up to 100' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Scene Change Detection, Line Crossing
• H.265, H.264 Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• Built-in Mic*
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Junction Boxes (VT-TJB01, VT-TJB08) and Wall Mount
(VT-TWMT-3) Available
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTC-TNT8RFEB-2)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.
VTC-TNT8RFE-2
Indoor/Outdoor WDR IP
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
8 MegaPixel [4K]
Fixed Turret Camera
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent Series
Summary of Contents for Vitek Transcendent Series
- Page 1 VTC-TNT8RFE-2 Transcendent Series 8 MegaPixel [4K] Indoor/Outdoor WDR IP Fixed Turret Camera QUICK START GUIDE FEATURES: • 1/2.7” 8.0 Megapixel [4K] CMOS Image Sensor • Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240 •...
- Page 2 Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Weather Resistant Cap Hex Wrench Overview Fixed screw Ethernet connector Audio input connector Micro SD card slot Reset Power connector Built-in Mic Mounting base Network Cable & Power Connections First connect the weather resistant cap to an ethernet patch cable, then connect the cameras ethernet adaptor.
- Page 3 Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
- Page 4 Fig. 2 Rubber Plug 3. Loosen the lock screws, then adjust the camera to obtain the optimium viewing angle. Confirm the correct viewing Lock Screw angle with a monitor. Next, tighten the lock screw to secure the viewing angle adjust- ments.
- Page 5 LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2.
- Page 6 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X browser to connect IP-CAM .
- Page 7 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. confirm. The IE browser will download Active X control. 3.
- Page 8 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
