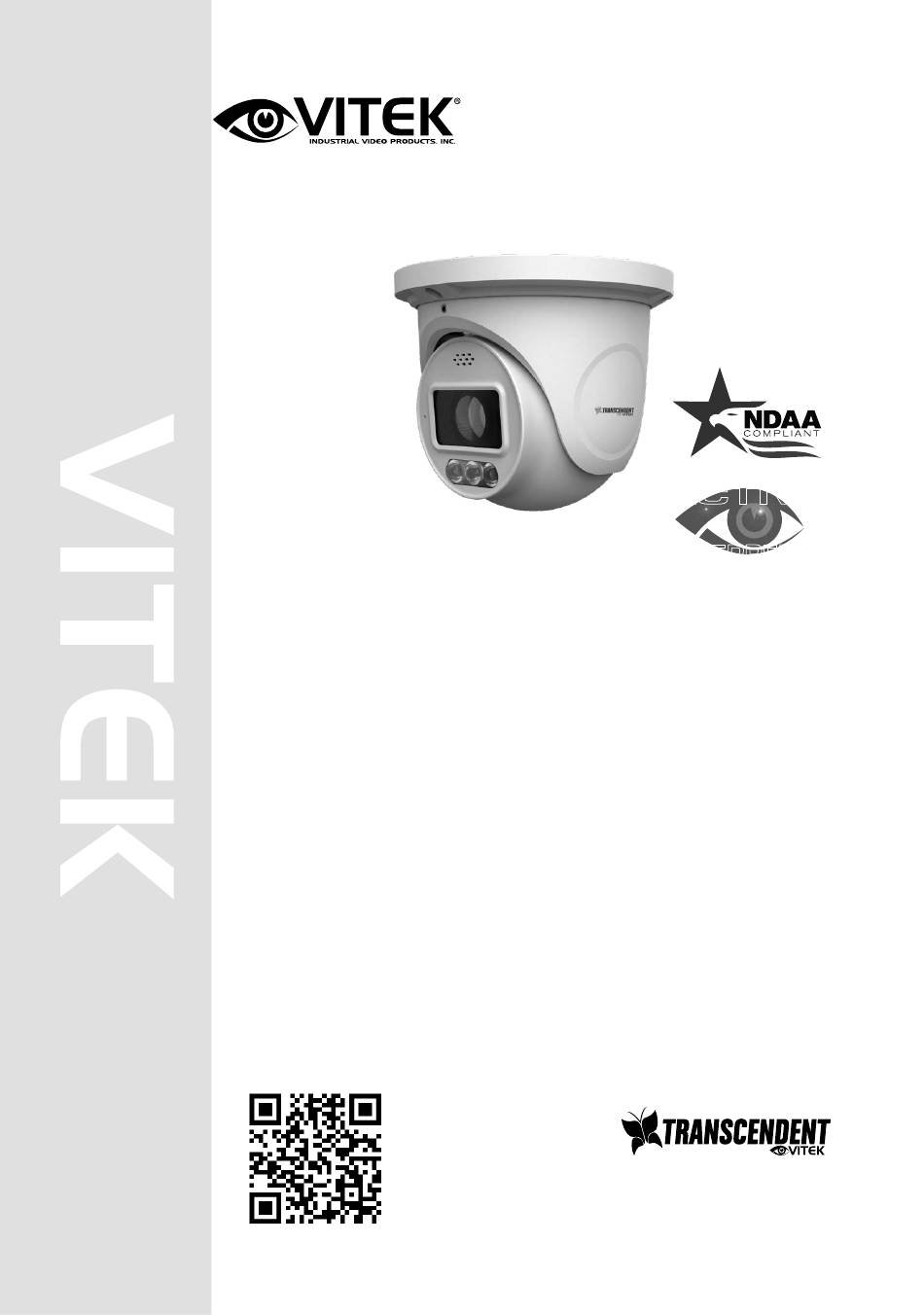

QUICK START GUIDE
FEATURES:
• 1/3" 4.0 Megapixel CMOS Image Sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8~12mm Motorized Varifocal Lens
•
Alternate Flashing Red + Blue Warning Lights & User-Defined Warning / Command Voice Import
• Matrix IR with up to 165' IR Range
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• Triple Streaming: H.265+, H.264+ & MJPEG Compression
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Backlight Compensation, Highlight Compensation, DeFog, Hardware Reset, ROI
• Advanced Analytics: Line Crossing Detection, Region Intrusion, Entrance / Exiting Detection
[All by Human / Vehicle Classification], Abnormal Video Signal Detection (Scene Change,
Video Cast & Video Blur)
• 1 Ch. Audio In + Built-in Mic + Built-in Speaker*
• 1 Ch. Alarm In + 1 Ch. Alarm Out
• Built-in MicroSD Card Slot for Local Recording (up to 256GB)
• Smart Alarm: Motion Det., Sensor Alarm, SD Card Error / Full, IP Address Conflict, Cable
Connection
• IP66 Weather Resistance
• Optional Junction Boxes (VT-TJB01, VT-TJB021), Wall Mounts (VT-TWM03, VT-TWMT-4)
and Pendant Mounts (VT-TPDM-2 [reqs. VT-TJB01], VT-TPDM-3 [reqs. VT-TJB021])
See other mounting options on page 9
• 12VDC & PoE (Power over Ethernet) Operation
*Please research local, state and federal laws regarding the implementation of audio surveillance.

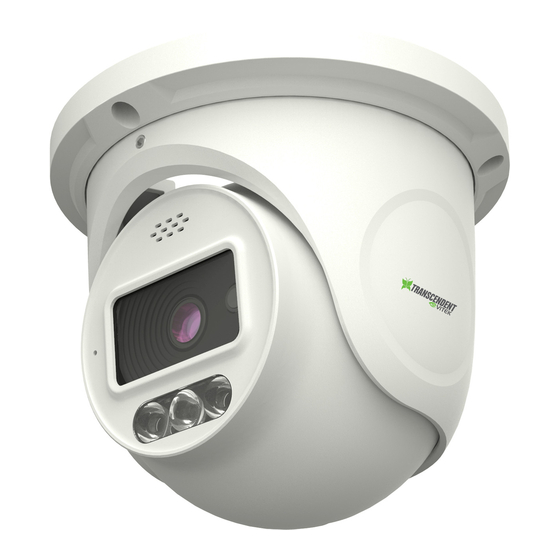

VTC-TNT4RMAD
Transcendent Series 4 MegaPixel
Indoor/Outdoor WDR IP Active
Deterrence Motorized Turret Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
ACTIVE
DETERRENCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-TNT4RMAD
Summary of Contents for Vitek VTC-TNT4RMAD
- Page 1 VTC-TNT4RMAD Transcendent Series 4 MegaPixel Indoor/Outdoor WDR IP Active Deterrence Motorized Turret Camera QUICK START GUIDE ACTIVE FEATURES: DETERRENCE • 1/3” 4.0 Megapixel CMOS Image Sensor • Up to 30fps live view @ 4 MegaPixel (2592x1520) • 2.8~12mm Motorized Varifocal Lens •...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Plastic Plugs + Rubber Plug Screws Network Coupler Overview First connect the Weather Resistant Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. -
Page 3: Installation
Connecting Alarm Input / Output Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: First Install a MicroSD Card as Demonstrated in Diagram at Right 1. - Page 4 2. Route and connect relevant cables. 3. Attach the mounting base to the wall with the provided screw 4. Loosen the fixed ring to adjust the viewing angle of the camera. Preview the camera’s image on a monitor. 5. Tighten the lock screw to finish the installation.
-
Page 5: Lan Configuration
LAN Configuration S witch N etwor k C able N etwor k C able MENU IP Camera C omputer R outer The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 VTC-TNT4RMAD Detailed Specifications 1/3” 4.0 Megapixel Progressive Scan CMOS Image Sensor 4 MegaPixel (2592 × 1520) Image Size 4MP(2592×1520), 3MP(2304×1296), 1080P, 720P, D1, CIF(480 × 240) Resolution 0.005lux@F1.6,AGC ON, 0 lux with LED ON Min. Illumination 2.8~12mm Motorized Varifocal Lens - ø14 Lens Mount...
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNT4RMAD VT-TJB021 VT-TWM03 VT-TJB01 Optional Wall Mount Optional Junction Box Optional Junction Box VT-TPDM-2 VT-TPDM-3 VT-TWMT-4 Pendant Mount - Pendant Mount - Optional Wall Mount requires VT-TJB01 requires VT-TJB021 7.65” 4.73” VT-TPLMT VT-TCNMT Transcendent...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression • Analytic Support Including Basic Face Detection, License Plate Recognition, and More! •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
