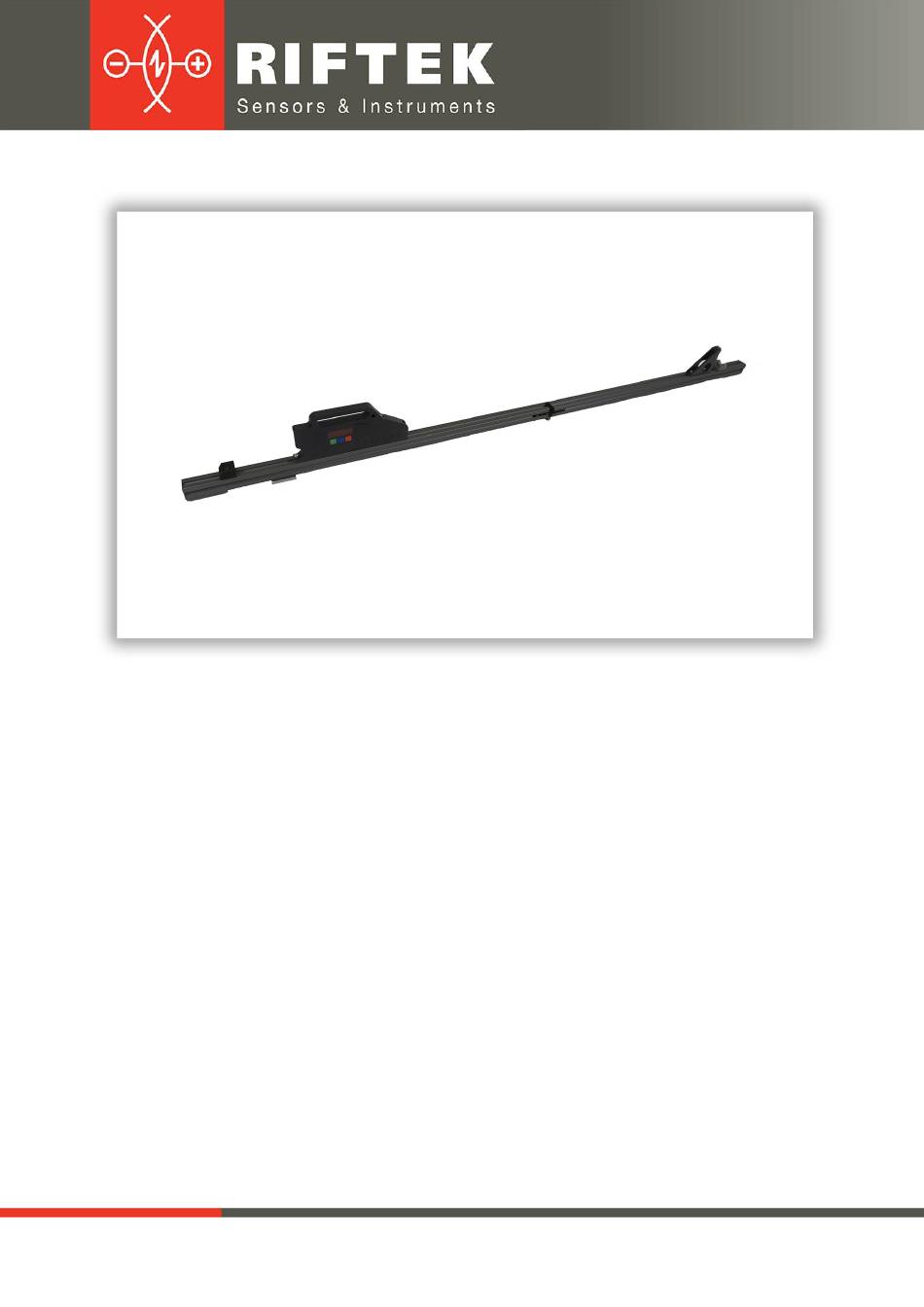

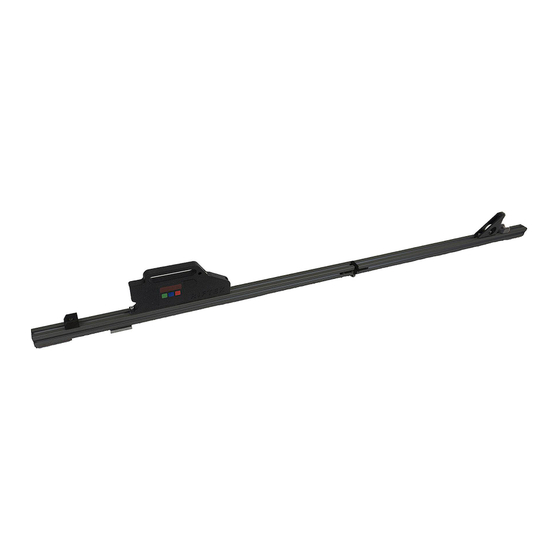

- Page 1 BACK-TO-BACK DISTANCE MEASURING GAUGE IMR Series User's manual www.riftek.com info@riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Back-to-Back Distance Measuring Gauge. IMR Series Contents Safety precautions and measurement conditions .............................3 CE сompliance .............................3 Laser safety .............................3 General information .............................3 Basic technical data .............................4 Example of item designation when ordering .............................4 Complete set to be supplied .............................4 Design .............................4... -
Page 3: Safety Precautions And Measurement Conditions
Back-to-Back Distance Measuring Gauge. IMR Series Safety precautions and measurement conditions · The metering accuracy depends greatly on the wheel surface quality. Therefore it is necessary to carry out the check and presorting of the wheel surface flaws before measuring the diameter. -
Page 4: Basic Technical Data
Back-to-Back Distance Measuring Gauge. IMR Series Basic technical data Parameter Value Measurement range, mm L±25 (L – nominal distance) Measurement error, mm ±0.1 Indication discreteness 0.1 mm, or 0.01 inch ** Display build-in, LED Operating temperature, °C -5…+40 Weigh, kg... -
Page 5: Operation Principle
Back-to-Back Distance Measuring Gauge. IMR Series Operation principle The method of measurement is based on direct measurement the distance by contactless laser sensor. Working with the gauge 10.1. Turning on the gauge Press button to turn on the power. The display shows “ErrP” message if the accumulator battery voltage became lower than the control level. -
Page 6: Turning Off The Gauge
Back-to-Back Distance Measuring Gauge. IMR Series 10.4. Turning off the gauge Shutdown occurs automatically. The display extinguishes if there were no buttons pressings for 60 seconds, at that only blinking dot is shown. If there were no button pressings for 4 more minutes, the gauge is turned off completely. You can turn the gauge off by long pressing button (more than 3 sec.). -
Page 7: Calibration Conditions
Back-to-Back Distance Measuring Gauge. IMR Series 12.1. Calibration conditions Calibration of the device is not necessary in the current work. It is necessary only after producing, repairing and also after checking with negative result. To perform calibration, the following means are necessary: ·... -
Page 8: Charging Of Built-In Accumulator Battery
