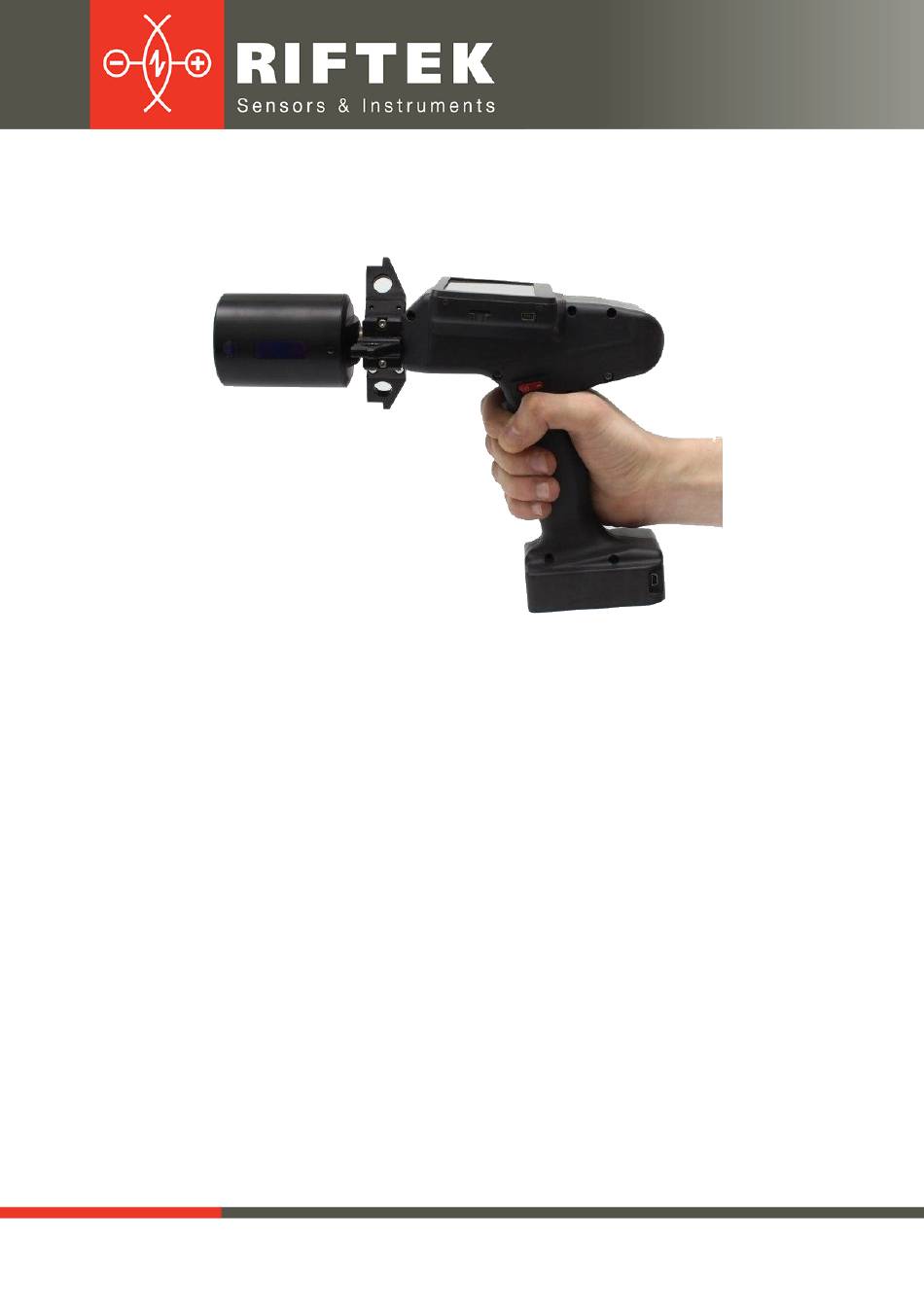

- Page 1 HANDHELD INNER DIAMETER MEASURING GAUGE RF096-100/250-87-HH Series User's manual 22, Logoisky tract, Minsk 220090, Republic of Belarus tel/fax: +375 17 357 36 57 info@riftek.com www.riftek.com Certified according to ISO 9001:2015...
-
Page 2: Table Of Contents
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series Contents Safety precautions and measurement conditions .............................3 CE сompliance .............................3 Laser safety .............................3 General information .............................3 Basic technical data .............................4 Example of designation when ordering .............................4 Complete set to be supplied .............................4 Device structure .............................5... -
Page 3: Safety Precautions And Measurement Conditions
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series Safety precautions and measurement conditions · Before installing the gauge, the pipe end must be cleaned of dirt. · When installing the gauge on the pipe, do not allow strong shocks. · It is necessary to periodically inspect the windows of the laser sensors and the base supports of the gauge and clean them of dirt. -
Page 4: Basic Technical Data
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series Basic technical data Parameter Value Diameter measurement range, mm 100...250 Diameter measurement error, mm ±0.05 Discreteness of indication, mm 0.01 Space resolution, points/turnover Measurement depth from the pipe end, mm Measurement time, not greater, s Measured parameters diameter (min., max., average), ovality,... -
Page 5: Device Structure
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series Figure 1 Device structure 8.1. Basic components Figure 2 shows the main components of the gauge: Figure 2 Designations: (1) Laser scanning module (2) Base (3) Removable support (4) Data cable (5) Charger (6) Calibration ring RF096-100/250-87-HH [Revision 1.0.0] 10.04.2020... -
Page 6: Laser Scanning Module
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series 8.2. Laser scanning module Figure 3 shows the main components of the laser scanning module: Figure 3 Designations: (1) Power button (2) Measurement button (3) Charger connector (4) Display (5) Mounting support (6) Rotating laser head... -
Page 7: Calibration Ring
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series 8.3. Calibration ring The calibration ring is designed to calibrate the device, check its performance. Overall dimensions of the calibration ring are shown in Figure 5: Figure 5 Operating principle The operation of the gauge is based on the principle of laser scanning of the inner surface of the pipe by a rotating laser head. -
Page 8: Turning On And The Main Program Window
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series Turning on and the main program window Charge the batteries of the gauge. The charging procedure is described in Annex 1. Turn on the gauge by pressing the power button (1), see Figure 3. The main program window will appear on the screen. -
Page 9: Date/Time Settings
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series 11.1. Date/time settings To set the date and time, tap the Date/Time button. Then use the buttons set the date and time, and tap the Save button. 11.2. Program language selection It is possible for the user to change the program language, form his own language support files as well as change/edit the terminology used. -
Page 10: Database Settings
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series For the changes to take effect, the device will prompt you to restart. If you do not need to sync the PDA with the PC at the moment, you can restart the PDA later. -
Page 11: Calibration And Measurement Settings
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series After typing the name, tap the Enter button - To select the database from a list, tap on the line and then tap Select. The selected file will be marked with a "dot" symbol. -
Page 12: Calibration
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series To save the changes, tap the Save button. Description of parameters is given in the table below: Parameter Default value Description Calibration diameter 137.5 mm Calibration ring diameter. Calibration tolerance 0.01 mm Tolerance for calibration and testing. -
Page 13: Measurement
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series The Measured T column shows the difference between the actual value of the ring diameter and the measurement result. The calibration-verification is considered successful if this difference does not exceed the value of the set tolerance (Calibration tolerance parameter), which by default is 0.01 mm. - Page 14 Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series · Make sure that the gauge is installed correctly and that there are no distortions or gaps. · Tap the Measurement button in the main program window, or press the measurement button on the gauge.
- Page 15 Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series If the measured value of the diameter exceeds the specified tolerance, the value will be shown in red: If the measurement is incorrect or the diameter is outside the working range of the gauge, the message about the measurement error will be displayed on the screen: ·...
-
Page 16: Viewing The Database
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series Viewing the database To view the saved data, tap the Profiles button in the main window. You will see information about the current database, the number of saved values, a table with saved pipe profiles and measured diameters. -
Page 17: Software For Pc: Installation And Starting Up
USB port of the PC by the supplied cable. If the connection is successful, a message about it will appear on the screen: 16.2. Starting up the software To start the software, select Start > All programs > Riftek, LLC > pipe_DB > pipe_DB.exe. The main program window: RF096-100/250-87-HH [Revision 1.0.0] 10.04.2020... -
Page 18: User Settings
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series User settings 17.1. Parameters To open the Parameters window, select Settings > Parameters or click on the icon The Parameters window contains two tabs: Pipe's parameters and Calculated parameters. 17.1.1. Pipe parameters In this tab, the user can select the parameters that will be displayed when viewing the database. -
Page 19: Calculated Parameters
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series 17.1.2. Calculated parameters In this tab, the user can select the geometric parameters of the pipe, which will be calculated and displayed on the screen when viewing the database. 17.2. Database settings 17.2.1. -
Page 20: Creating An Empty Database
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series 17.2.2. Creating an empty database To create an empty database, select File > New DB. All data will be deleted from the database. At the same time, the DB(dd.mm.yy) directory will be created in the installation directory whereto all the deleted data will be copied (dd.mm.yy –... -
Page 21: Data Exchange Between The Gauge And The Pc
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series Data exchange between the gauge and the PC Data exchange between the PC and the gauge is carried out by connecting the gauge to the USB port of the PC via the supplied cable (RF096.42). -
Page 22: Viewing Data
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series · Mark the required files in the emerged window and click Ok. Viewing data Select Database > Table or click the Table button - . The table with results will be as follows: ·... - Page 23 Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series · Filtering of data In order to filter data by any of the fields, left-click on the header of the field grouping, and select the required value in the emerged drop-down list: To cancel filtering, all steps should be taken in the reverse order.
-
Page 24: Annex 1. Battery Charging Procedure
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series · Deleting all selected data If it is necessary to delete not only one entry but several entries combined by some condition, filter the data according to the corresponding attribute, click confirm the deletion. -
Page 25: Distributors
Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series Distributors AUSTRIA AUSTRALIA BENELUX MBM Industry & Rail Tech Applied Measurement Althen Sensors & Controls BV GmbH Australia Pty Ltd Vlietweg 17a 2266KA Leidschendam RAILWAY INSTRUMENTS ONLY RAILWAY INSTRUMENTS ONLY The Netherlands Tullnerbachstraße 36,... - Page 26 Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series FRANCE GERMANY GERMANY BLET Measurement Group Disynet GmbH Finger GmbH & Co. KG S.A.S. Breyeller Str. 2 OPTICAL MICROMETERS ONLY 41379, Brueggen Sapelloh 172, 1 avenue du Président Georges Tel: +49 2157 8799-0...
- Page 27 Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series POLAND PORTUGAL RUSSIA MTL ASCO Sp. z o.o. Campal Inovacoes Sensorika-M LLC RAILWAY INSTRUMENTS ONLY Ferroviarias Lda. Dmitrovskoye shosse 64-4 ul. Wielowiejska 53 44-120 127474, Moscow, Russia RAILWAY INSTRUMENTS ONLY PYSKOWICE (k/ GLIWIC), Tel: +7 499 487 0363 Lagoas Park, Edifí...
- Page 28 Handheld Inner Diameter Measuring Gauge. RF096-100/250-87-HH Series UKRAINE UNITED KINGDOM, USA, CANADA, MEXICO IRELAND KODA International Electronic Frunze st 22 Machines Corporation Ix thus Instrumentation Ltd 61002, Harkov, Ukraine RAILWAY INSTRUMENTS ONLY The Stables, Williams' Barns Tel/fax: +38 057 714 26 54...
